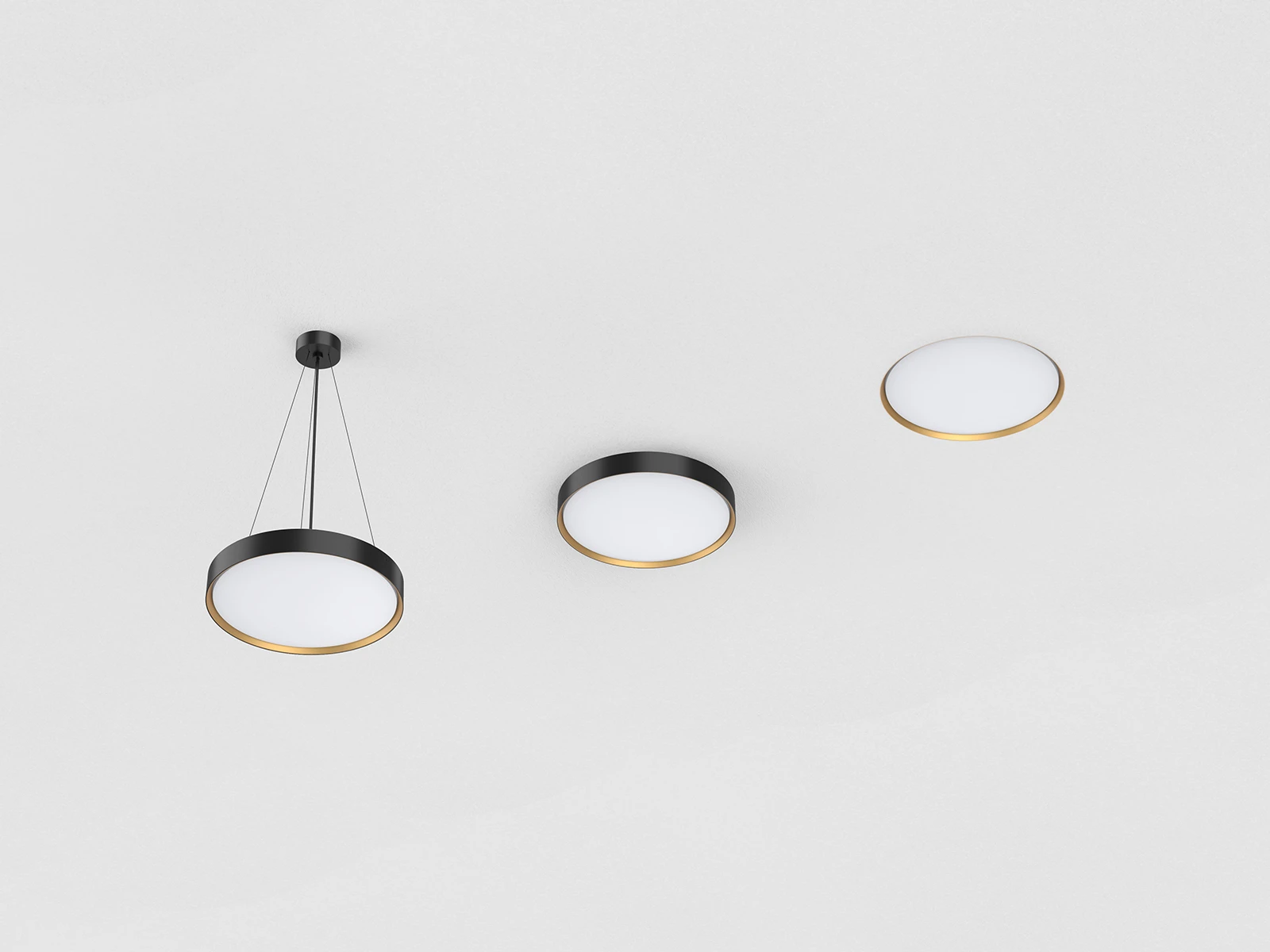

The round, minimalist LED ceiling light is versatile in its use. Due to its simple appearance, it fits into a wide variety of interiors with surface mounted, suspended and recessed installation ways. Aluminum housing(white/black) can be matched with black/white/golden decorative ring, which makes this light look elegant and textured. Opal diffuser(UL94-V2) for general lighting with maximum transmittance and homogeneous lighting.
Application Areas: It is designed for general lighting indoor applications: hotel, home, canteen, office, supermarket, shopping mall etc.
| Code | AL166-12-18W-B1-I03 | AL166-16-30W-B1-I03 | |
|---|---|---|---|
| Dimension(mm) | Ø301*58 | Ø422*58 | |
| Cutout(mm) | Ø315*85 | Ø435*85 | |
| Watt(W) | 18W | 30W | |
| Rated Input Voltage | AC220-240V | ||
| Input Voltage | AC198-264V | ||
| Light Source | SMD | ||
| CCT(K) | 2700K-6500K | ||
| CCT Selection DIP Switch | Signal Control | ||
| Luminous Flux (lm) ±5% (Goldeng ring) | 1380-1700 | 2600-3000 | |
| Luminous Flux (lm) ±5% (Black ring) | 1300-1600 | 2500-2850 | |
| CRI | 80 | ||
| Beam Angle(°) | 120° | ||
| LED Driver | Driver built-in | ||
| Protocol | CASAMBI Bluetooth | ||
| Emergency Kits | NO | ||
| Electrical Class | Class II | ||
| Ingress Protection(IP Rating) | IP44(Pendant installation IP20 only) | ||
| Impact Resistance(IK Rating) | IK06 | ||
| Product Finishing | Black RAL9005 & Golden PANTONE 7407U | ||
| Optics Material | PC | ||
| Housing Material | Aluminium(ADC12)+PC | ||
| Lifetime(hr) | 50,000H | ||
| Glow wire test(°C) | 650°C | ||
| Operating Temp(°C) | -20°C~45°C | ||
| Storage Temp(°C) | -20°C~60°C | ||

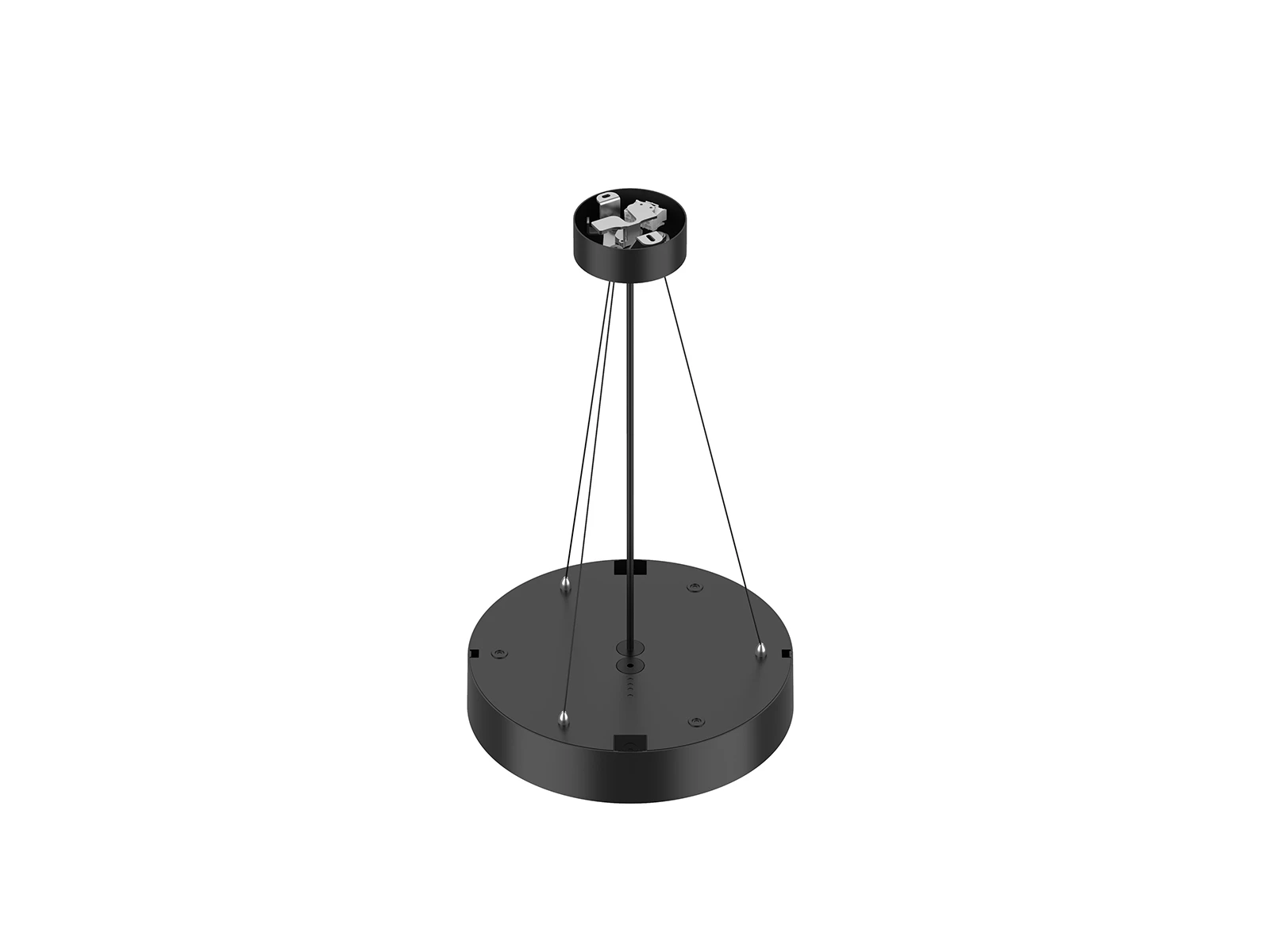

| Installation | Surface mount & Pendant & Recessed | ||
| Code | AL166-12-18W-B1-I03 | AL166-16-30W-B1-I03 | |
|---|---|---|---|
| Dimension(mm) | Ø301*58 | Ø422*58 | |
| Cutout(mm) | Ø315*85 | Ø435*85 | |
| Watt(W) | 18W | 30W | |
| Rated Input Voltage | AC220-240V | ||
| Input Voltage | AC198-264V | ||
| Light Source | SMD | ||
| CCT(K) | 2700K-6500K | ||
| CCT Selection DIP Switch | Signal Control | ||
| Luminous Flux (lm) ±5% (Goldeng ring) | 1420-1700 | 2750-3150 | |
| Luminous Flux (lm) ±5% (White ring) | 1550-1800 | 3000-3400 | |
| CRI | 80 | ||
| Beam Angle(°) | 120° | ||
| LED Driver | Driver built-in | ||
| Protocol | CASAMBI Bluetooth | ||
| Emergency Kits | NO | ||
| Electrical Class | Class II | ||

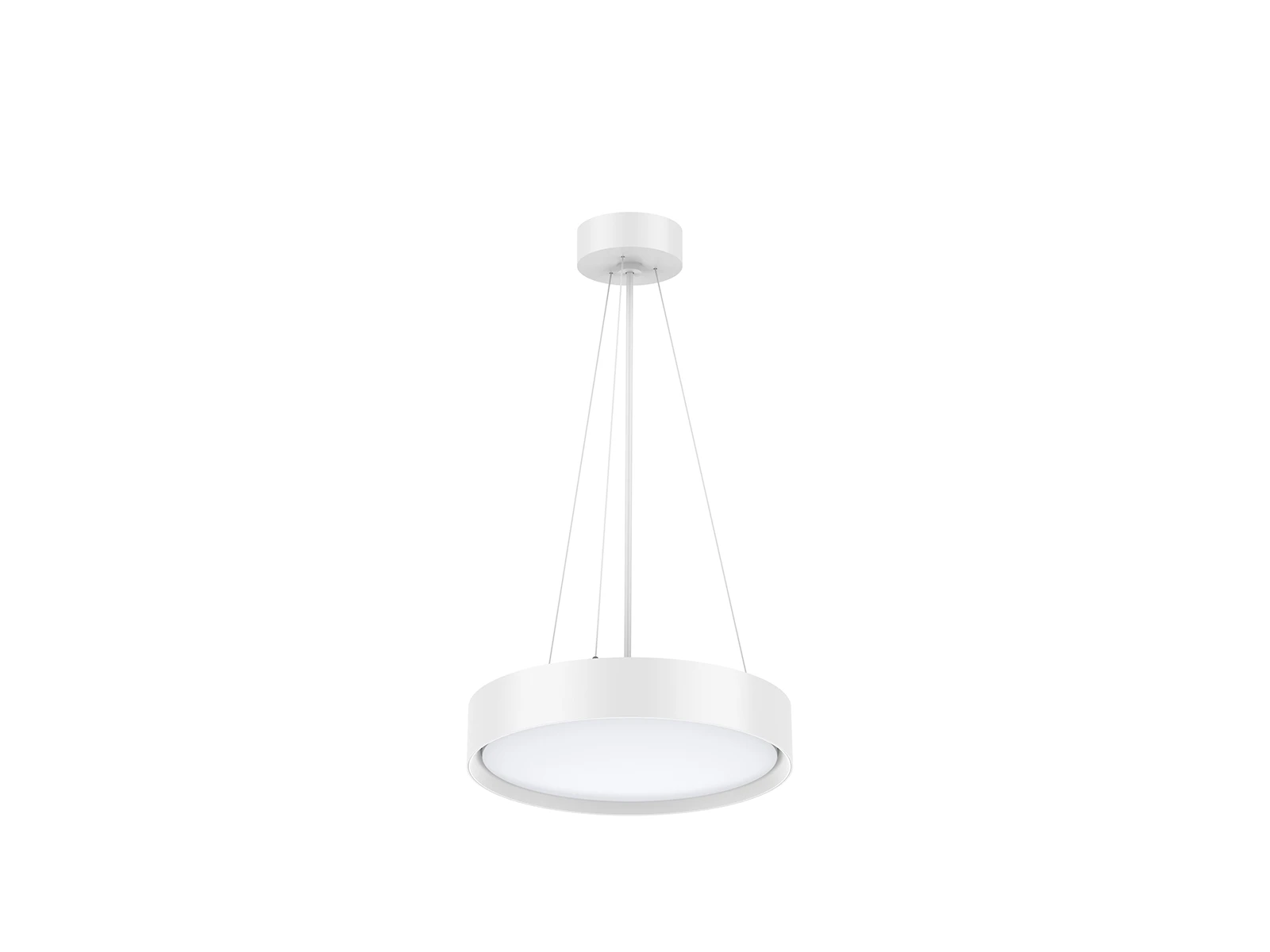

| Ingress Protection(IP Rating) | IP44(Pendant installation IP20 only) | ||
| Impact Resistance(IK Rating) | IK06 | ||
| Product Finishing | White RAL9016 & Golden PANTONE 7407U | ||
| Optics Material | PC | ||
| Housing Material | Aluminium(ADC12)+PC | ||
| Lifetime(hr) | 50,000H | ||
| Glow wire test(°C) | 650°C | ||
| Operating Temp(°C) | -20°C~45°C | ||
| Storage Temp(°C) | -20°C~60°C | ||
| Installation | Surface mount & Pendant & Recessed | ||
