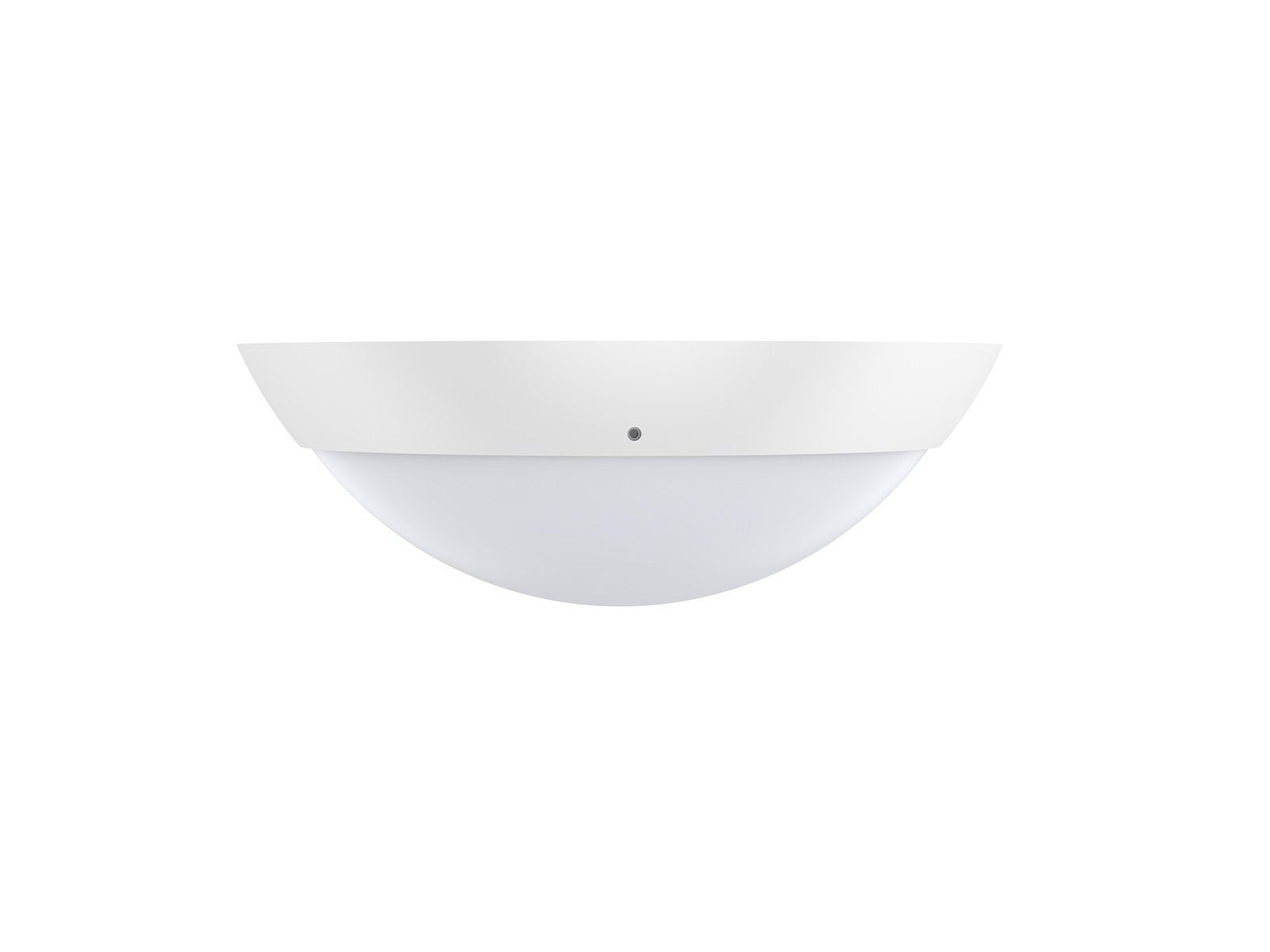

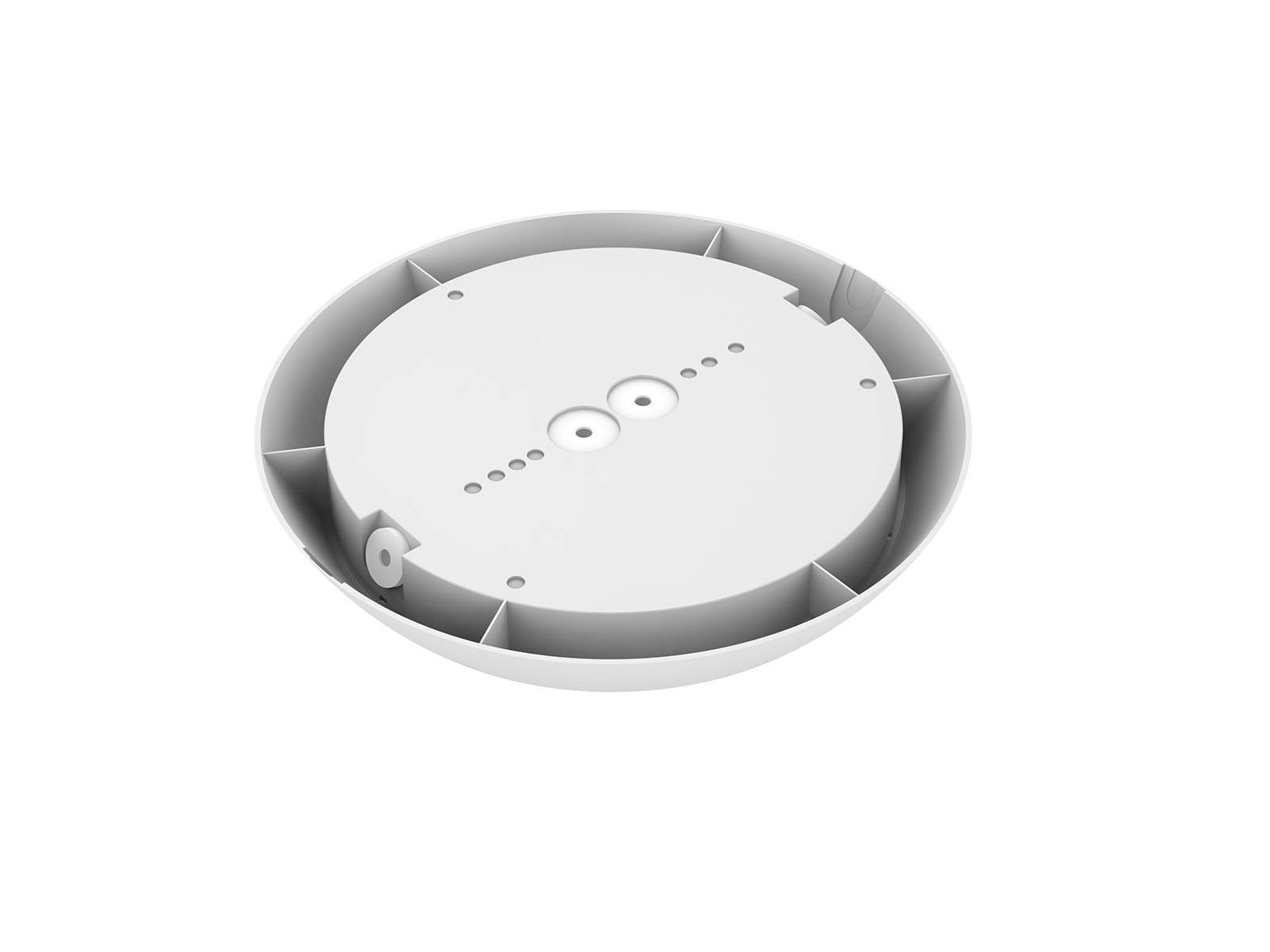

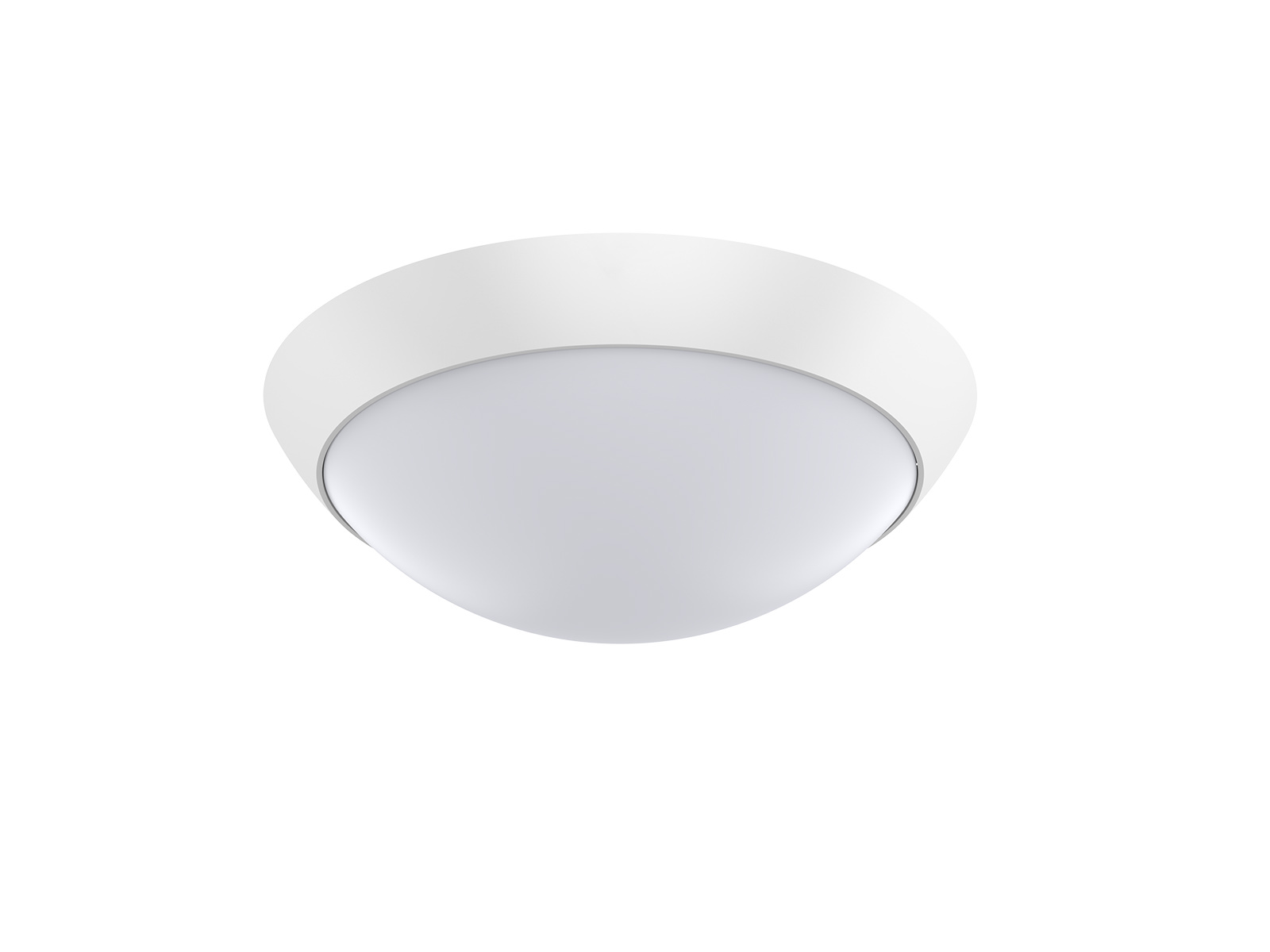

AL137 is an arc surface ceiling lamp. It has a quite easy installation way, both edge cable entry and back cable entry support a flexible wiring way, multiple hole sites meet different market installation box. Because of the arc surface design, the light effect is softer and uniform, which created a soft and pleasant atmosphere. Besides, it has emergency, S7 microwave sensor, and adjustable CCT functions to meet various demand.

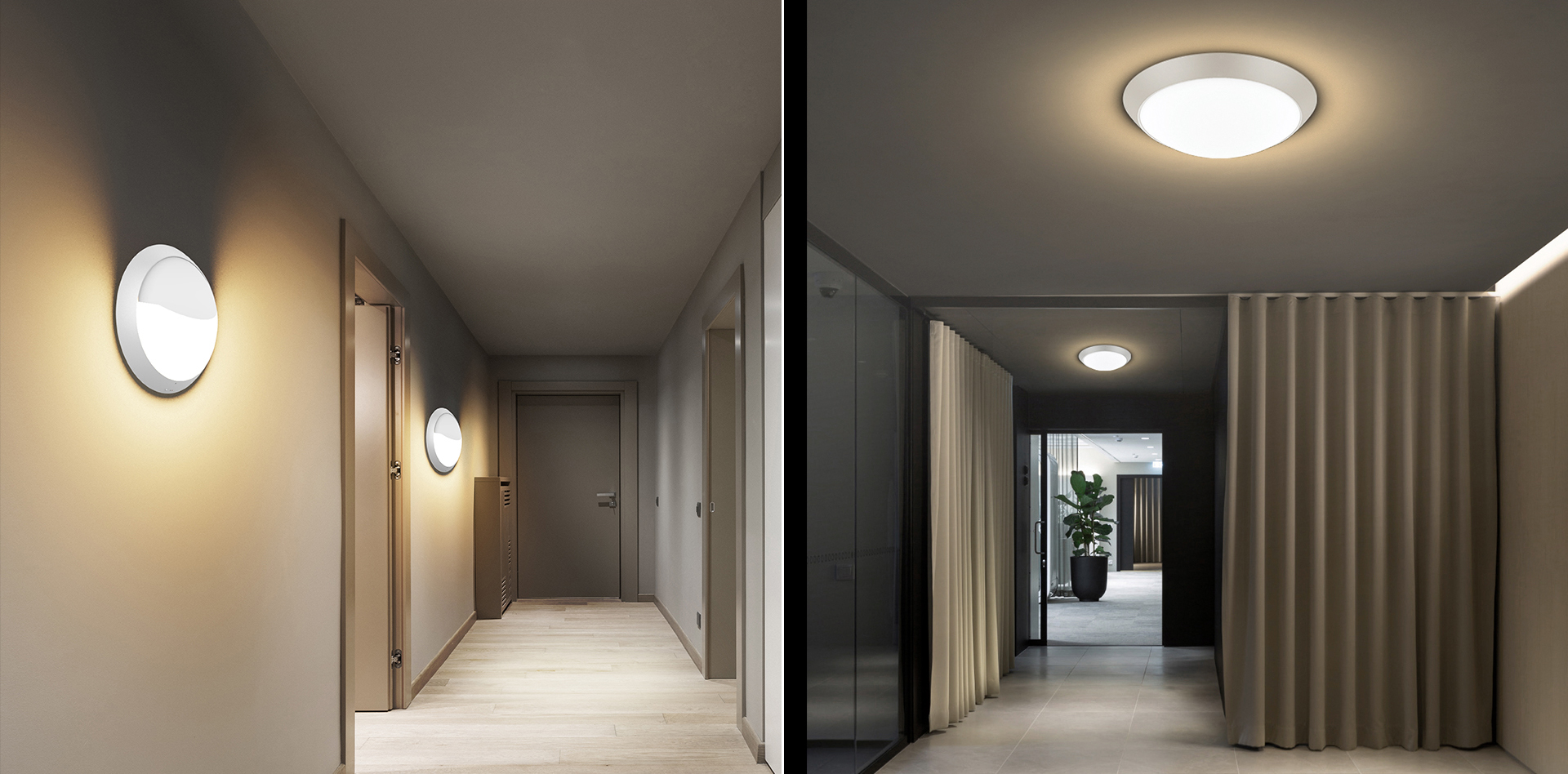

Application Areas: It is designed for general lighting applications, such as residential, stairway, corridors etc.
| Code No. | AL137-10-12W | AL137-12-15W | AL137-16-18W | AL137-16-25W |
|---|---|---|---|---|
| Dimension(mm) | Ø250*H86 | Ø300*H90 | Ø420*H110 | Ø420*H110 |
| Watt(W) | 12W | 15W | 18W | 25W |
| Rated Input Voltage(V) | AC230 | |||
| Input Voltage(V) | AC200-240 | |||
| Light Source | SMD | |||
| SDCM | ≤6 | |||

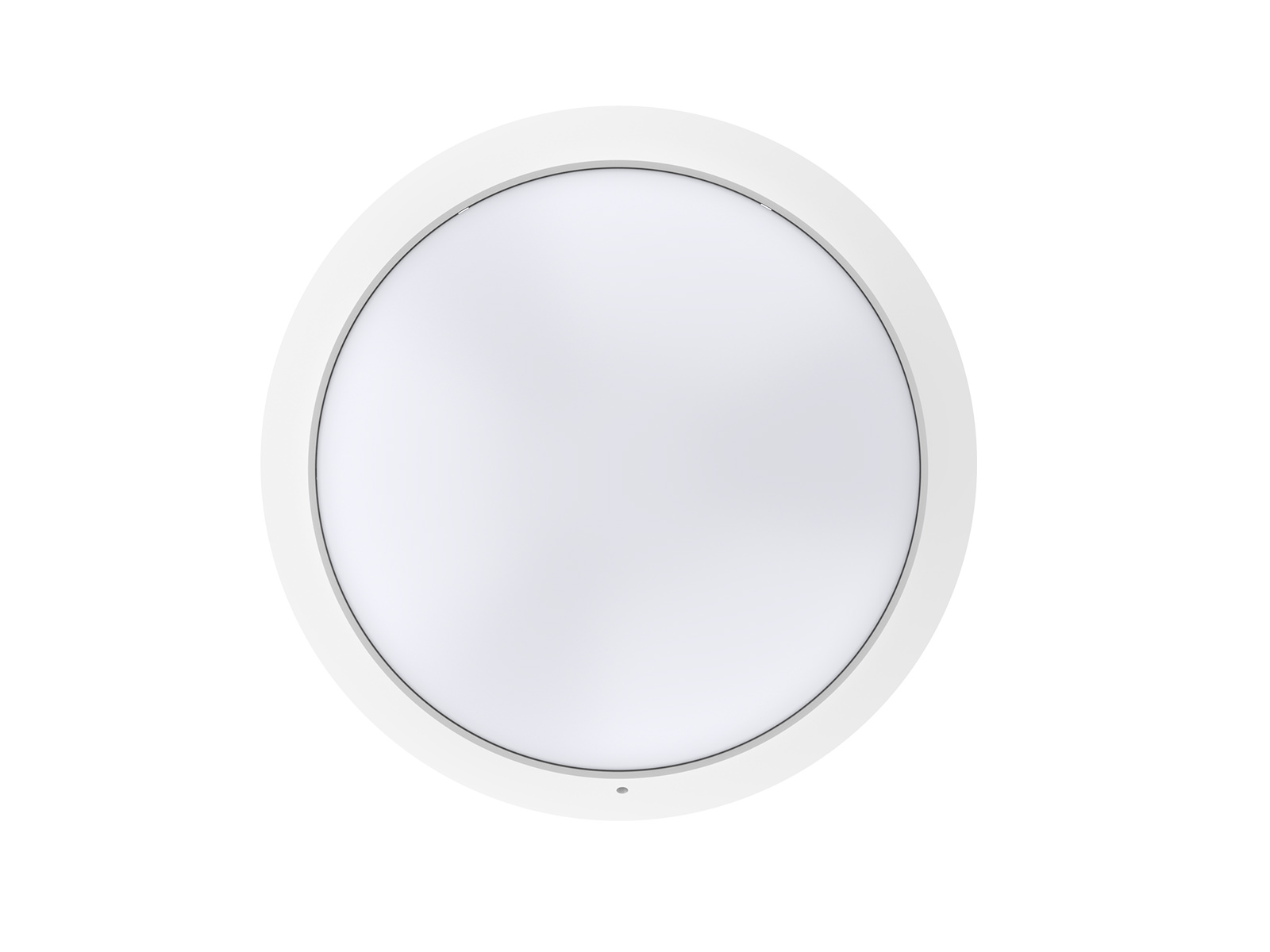

| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K +5700K | |||

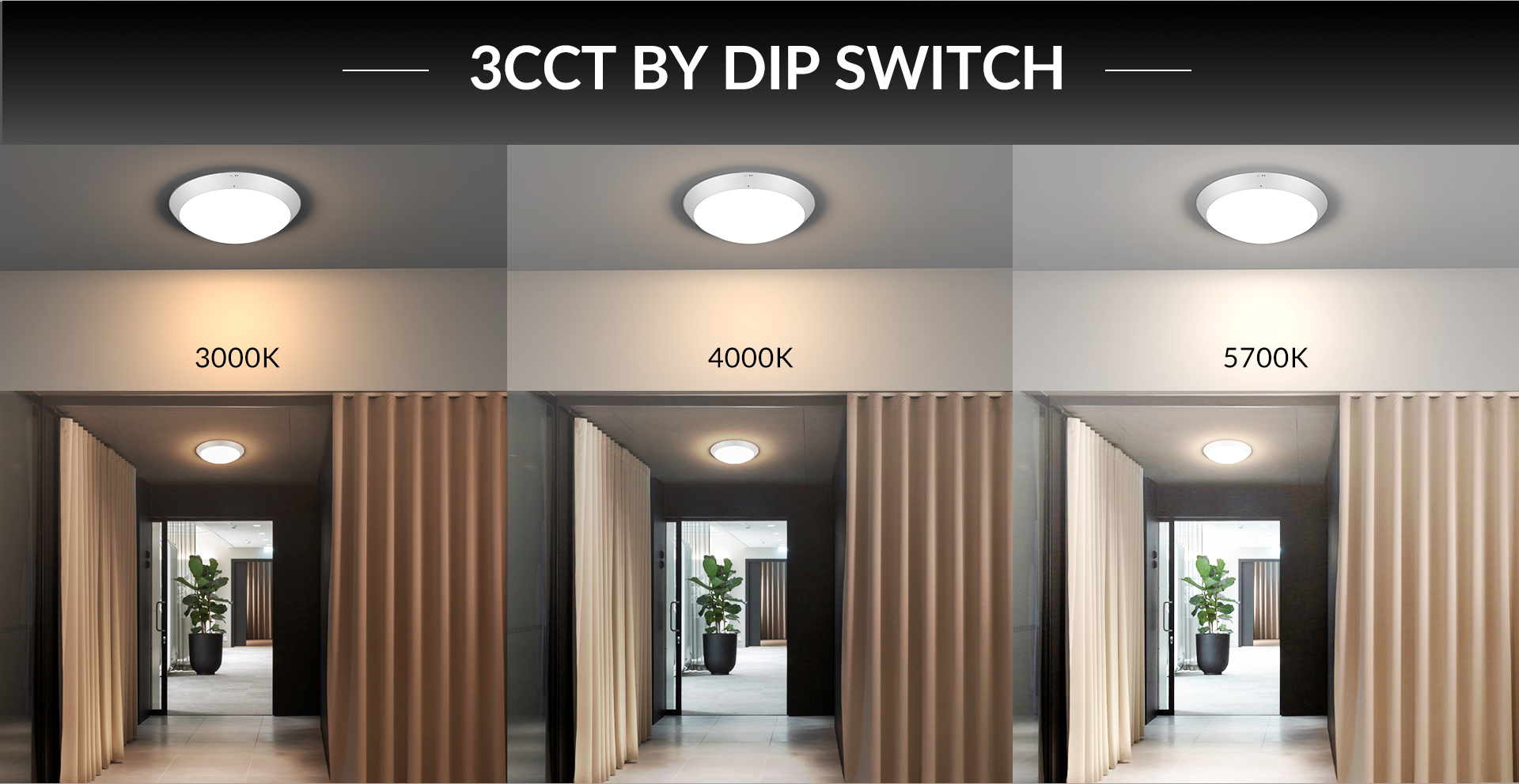

| CCT Selection DIP Switch | YES | |||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 1200-1400 | 1600-1800 | 1950-2200 | 2800-3000 |
| DIM 1-CCT Luminous Flux (lm) ±5% | 1200-1400 | 1600-1800 | 1950-2200 | 2800-3000 |
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 1200-1400 | 1600-1800 | 1950-2200 | 2800-3000 |
| DIM 1-CCT Luminous Flux (lm) ±5% | 1200-1400 | 1600-1800 | 1950-2200 | 2800-3000 |
| CRI | >80 | |||

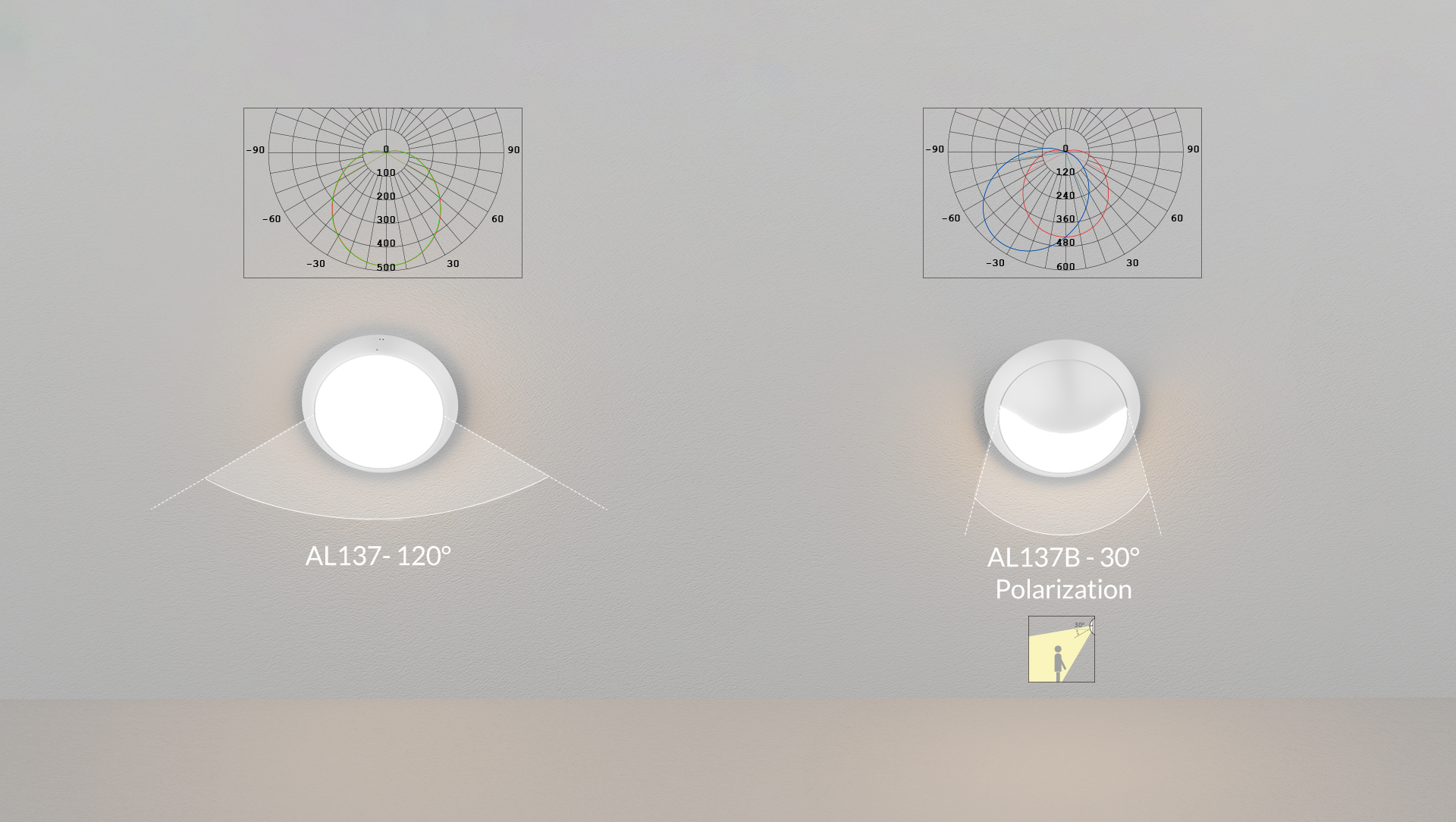

| Beam Angle (°) | 120° | |||
| LED Driver | Built-in | |||
| Dimming Option | Triac | |||

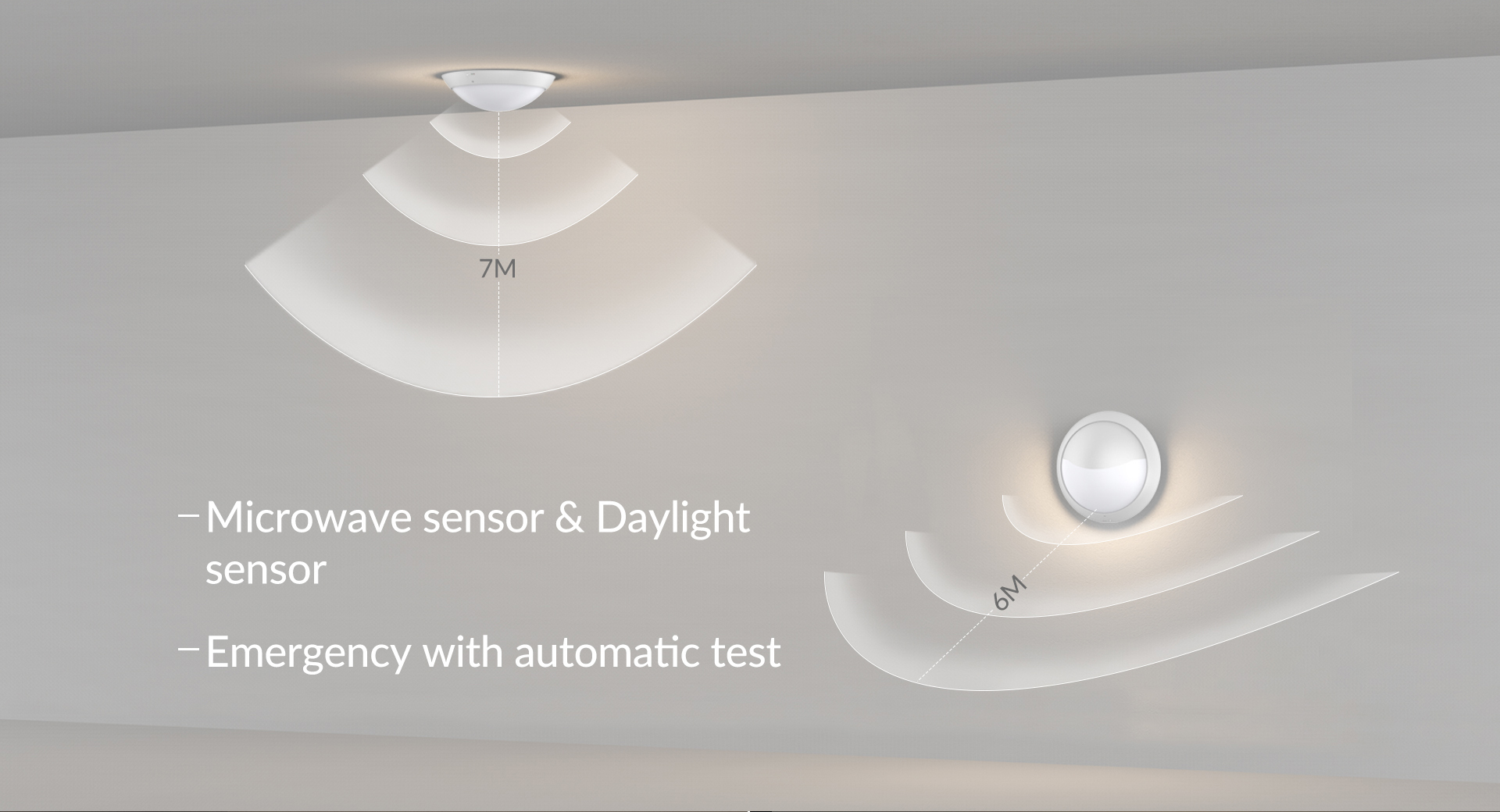

| Sensor | Microware sensor & Daylight sensor | |||
| Emergency Kits | - | Yes | ||
| Electrical Class | Class Ⅱ | |||
| Ingress Protection (IP Rating) | IP44 / Emergency type IP40 | |||
| Impact Resistance (IK Rating) | IK06 | |||
| Product Finishing(Base) | White RAL 9016 | |||
| Materials of Optics | PC | |||
| Materials of Housing | ABS | |||
| Lifetime (hr) | 50,000h | |||
| Glow wire test (℃ ) | 850℃ | |||
| Operating Temp. (℃ ) | -20℃ ~45℃ | |||
| Storage Temp. (℃ ) | -20℃ ~65℃ | |||
| Installation | Surface mount | |||
