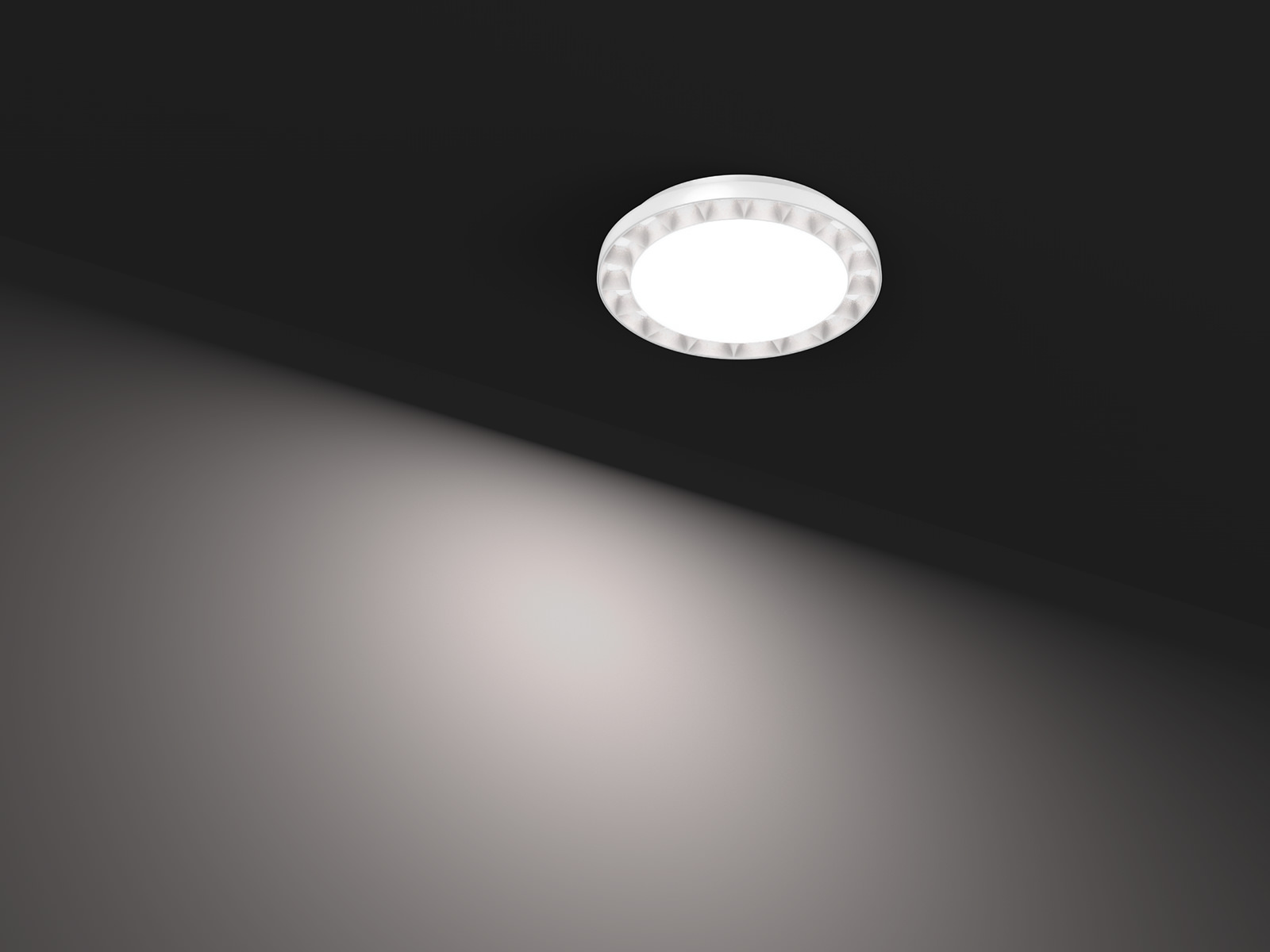

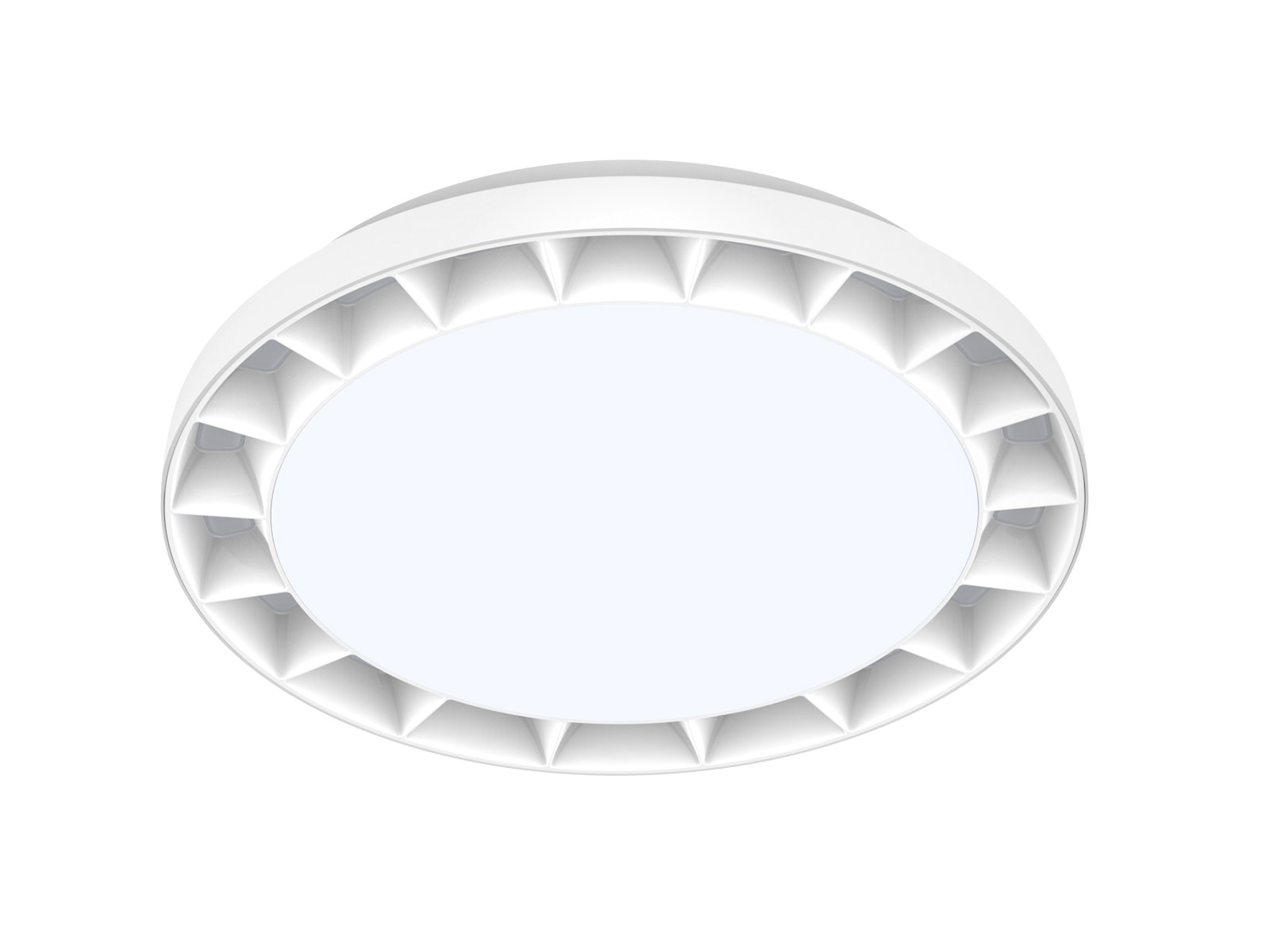

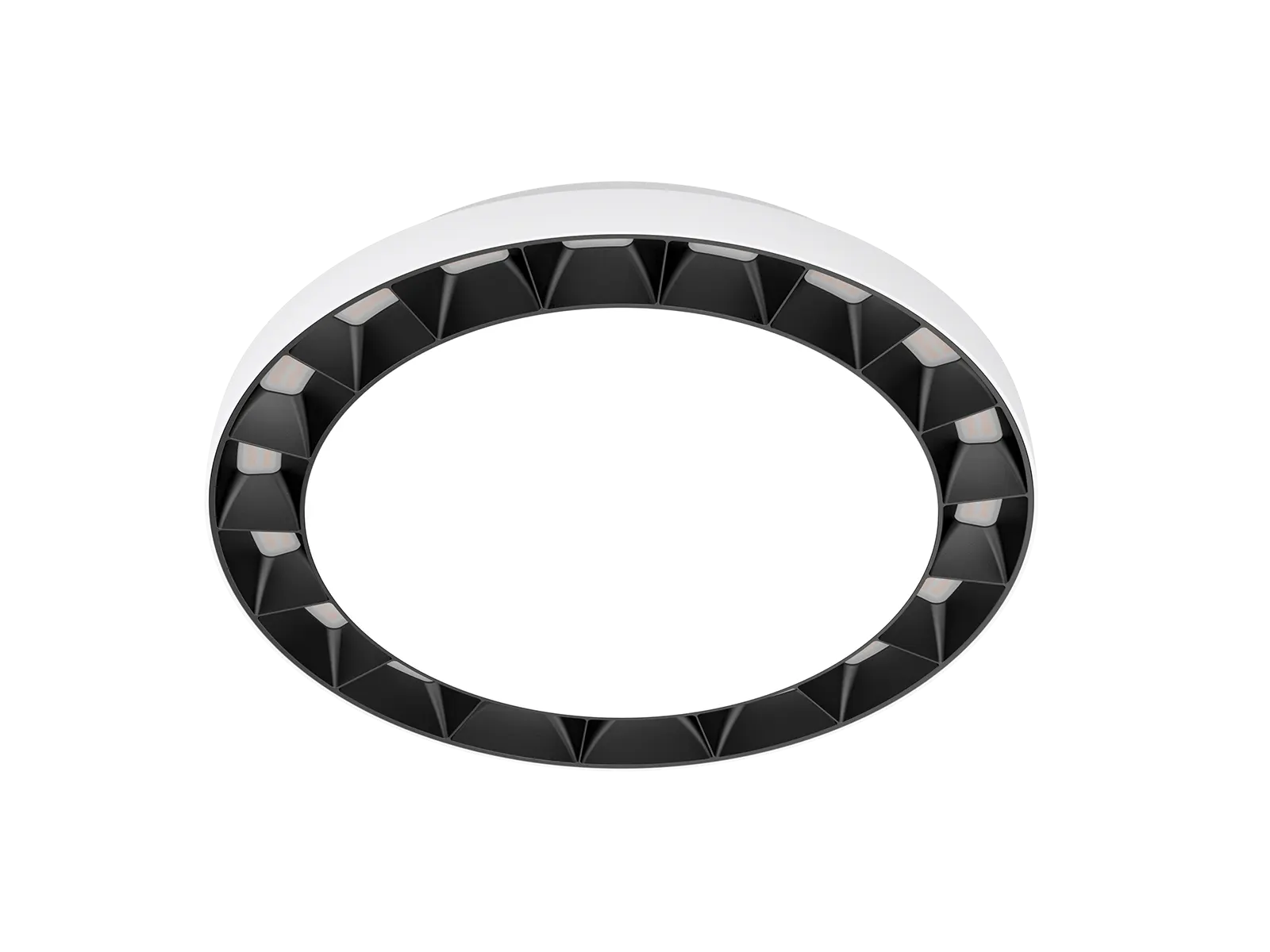

The AL131 ceiling light features a grill reflector design combined with a opal diffuser to enhance the layering of light while reducing glare. This allows the product to maintain a low glare value even under wide beam angles, showcasing its high-quality design. The product is multifunctional and highly versatile, meeting the lighting needs of various functions and scenarios. Its convenient and quick installation method provides greater convenience for users. With an IP54 and IK08 protection rating, it is suitable for a wider range of residential and commercial applications.
Applications: It is widely used in office, supermarket, shopping mall, school, hotel etc.
| Code | AL131-11-24W-A3C2 | AL131-14-30W-A3C2 | ||
|---|---|---|---|---|
| Dimension(mm) | Ø275*48 | Ø350*48 | ||
| Cutout(mm) | - | |||
| Watt(W) | 24W Max.(18W/12W optional) | 30W Max.(24W/18W optional) | ||
| Rated Input Voltage | AC220-240V | |||
| Input Voltage | AC198-264V | |||
| LED Module Input | - | |||
| Light Source | SMD | |||
| SDCM | <3 | |||
| CCT(K) | 2-CCT: 3000K + 4000K | |||
| CCT Selection DIP Switch | Yes | |||
| Non-DIM | 24W: 1560-1720 | 30W: 2200-2400 | ||
| 18W: 1170-1290 | 24W: 1790-2000 | |||
| Luminous Flux (lm) ±5% | 2-CCT | 12W: 750-830 | 18W: 1340-1460 | |
| CRI 90 | DIM | 24W: 1540-1670 | 30W: 2110-2300 | |
| 18W: 1110-1220 | 24W: 1710-1880 | |||
| 12W: 730-820 | 18W: 1290-1400 | |||
| DALI | 24W: 1540-1690 | 30W: 2220-2430 | ||
| 18W: 1160-1270 | 24W: 1790-1960 | |||
| 12W: 780-850 | 18W: 1350-1470 | |||
| The above test data is based on testing with white or black lamp housing paired with black reflector only. | ||||
| CRI | 90 | |||
| Beam Angle(°) | 80° | |||

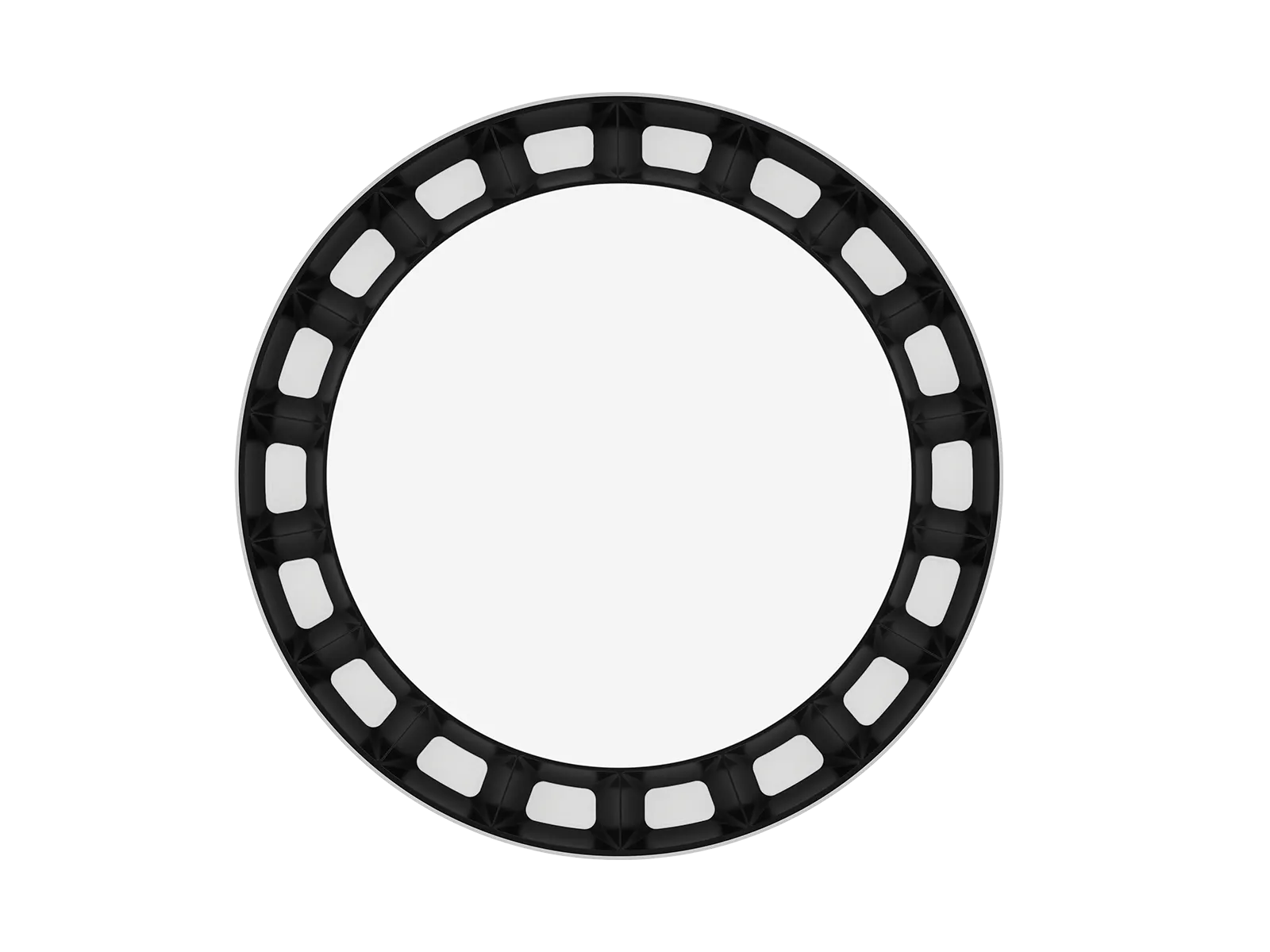

| UGR | <19 | |||
| LED Driver | Built-in, Flicker Free | |||
| Dimming Option | Triac / DALI | |||
| Sensor | Microwave sensor & Daylight sensor | |||
| Emergency Kits | No | |||
| Electrical Class | Class II | |||

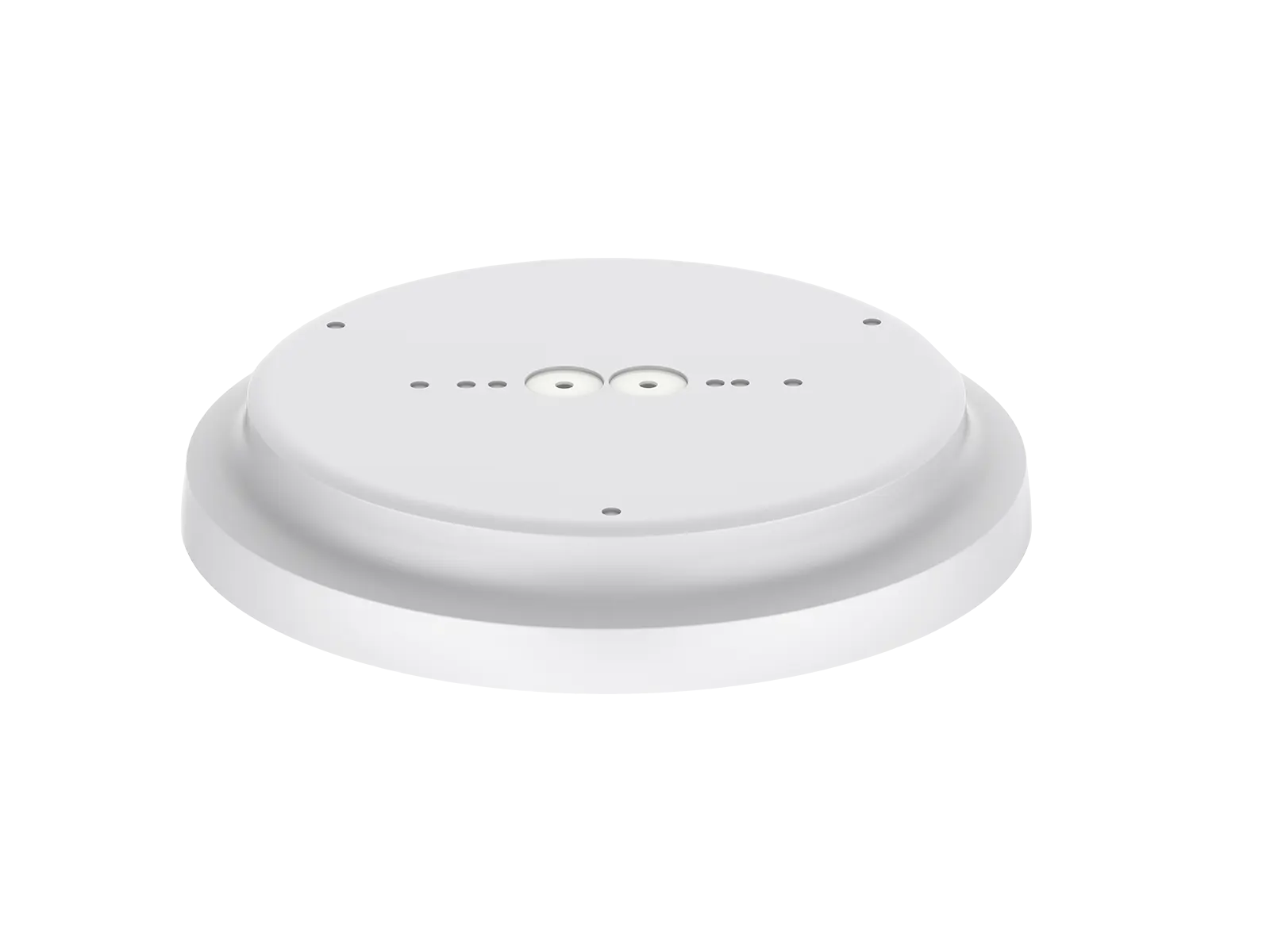

| Ingress Protection(IP Rating) | Ceiling Surface Mount IP54 | |||
| Impact Resistance(IK Rating) | IK08 | |||
| Product Finishing | White RAL9016 ,Black RAL9005 | |||
| Optics Material | PC | |||
| Housing Material | PC | |||
| Lifetime(hr) | 50,000h | |||
| Glow wire test(°C) | 750°C | |||
| Operating Temp.(°C) | -20°C ~45°C | |||
| Storage Temp.(°C) | -20°C ~60°C | |||

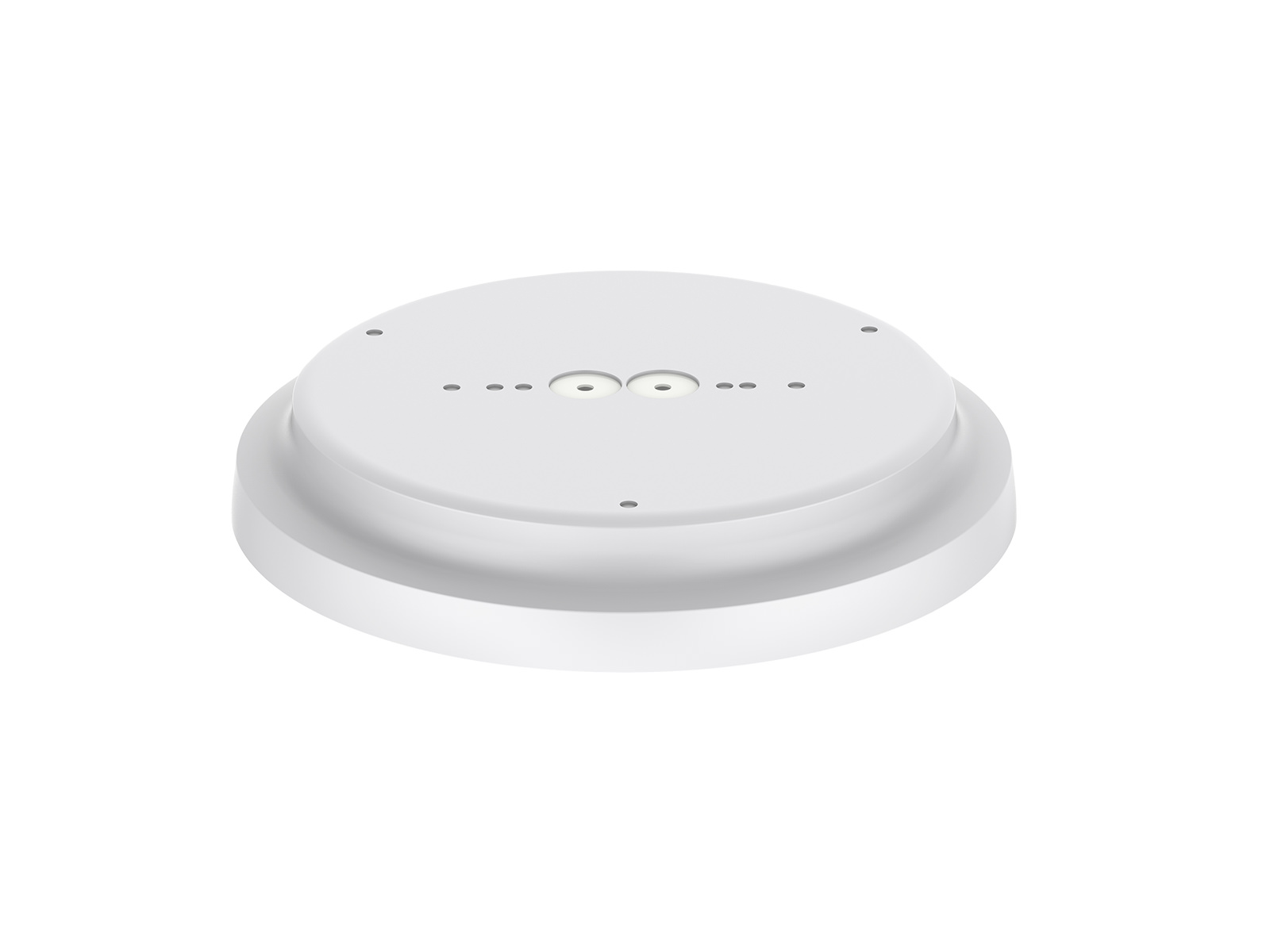

| Installation | Surface mount | |||
| Code No. | AL131-11-11W | AL131-11-17W | AL131-14-17W | AL131-14-24W |
|---|---|---|---|---|
| Dimension(mm) | Ø275*48 | Ø350*48 | ||
| Watt(W) | 11W | 17W | 17W | 24W |
| Rated Input Voltage(V) | AC220-240V | |||
| Input Voltage(V) | AC200-240V | |||
| Light Source | SMD | |||
| SDCM | <6（@3000K 4000K） | |||
| CCT(K) | 1-CCT: 3000K/4000K || 2-CCT: 3000K + 4000K | |||
| CCT Selection DIP Switch | YES | |||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 1050-1350 | 1550-1900 | 1600-1900 | 2250-2600 |
| DIM 1-CCT Luminous Flux (lm) ±5% | 950-1250 | 1500-1880 | 1550-1880 | 2200-2550 |
| Non-DIM 2-CCT Luminous Flux (lm) ±5% | 1050-1350 | 1500-1880 | 1600-1880 | 2300-2600 |
| DIM 2-CCT Luminous Flux (lm) ±5% | 950-1250 | 1480-1800 | 1550-1880 | 2250-2550 |
| CRI | ≥80 | |||
| Beam Angle (°) | 80° | |||
| UGR | White <22, Silver<19 | |||
| LED Driver | Built-in | |||
| Dimming Option | Triac | |||
| Sensor | adjustable sensor | |||
| Electrical Class | Class II | |||
| Ingress Protection (IP Rating) | IP54 | |||
| Impact Resistance (IK Rating) | IK08 | |||
| Product Finishing(Base) | White RAL 9016/Silver RAL 9006 | |||
| Materials of Optics | PC | |||
| Materials of Housing | PC | |||
| Lifetime (hr) | 50,000h | |||
| Glow wire test (℃ ) | 750℃ | |||
| Operating Temp. (℃ ) | -20℃ ~40℃ | |||
| Storage Temp. (℃ ) | -20℃ ~65℃ | |||
| Installation | Surface mount | |||
