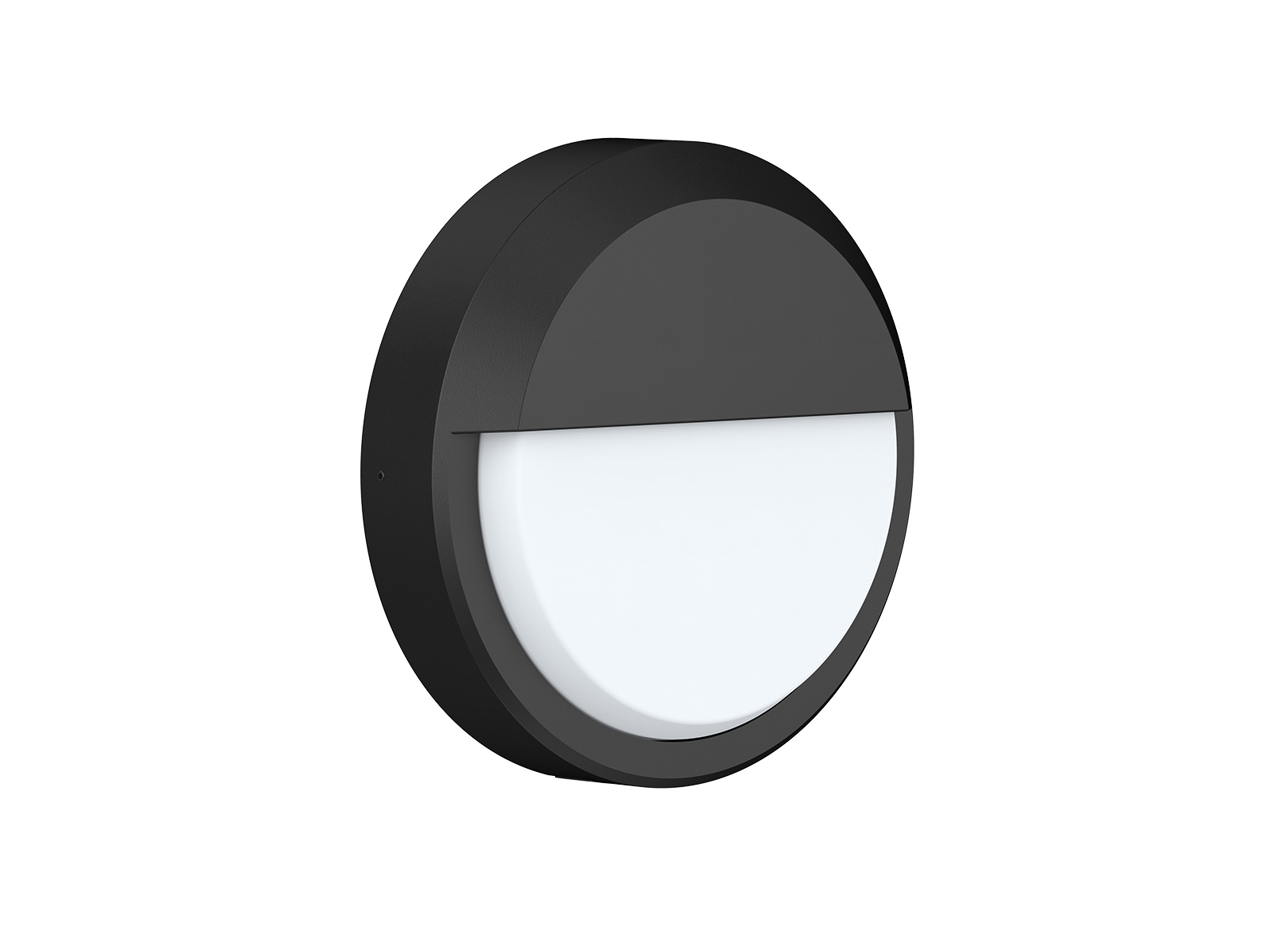

AL104 IP65 High Quality Outdoor Bulkhead
AL104 bedroom decoration wall lamp fixture

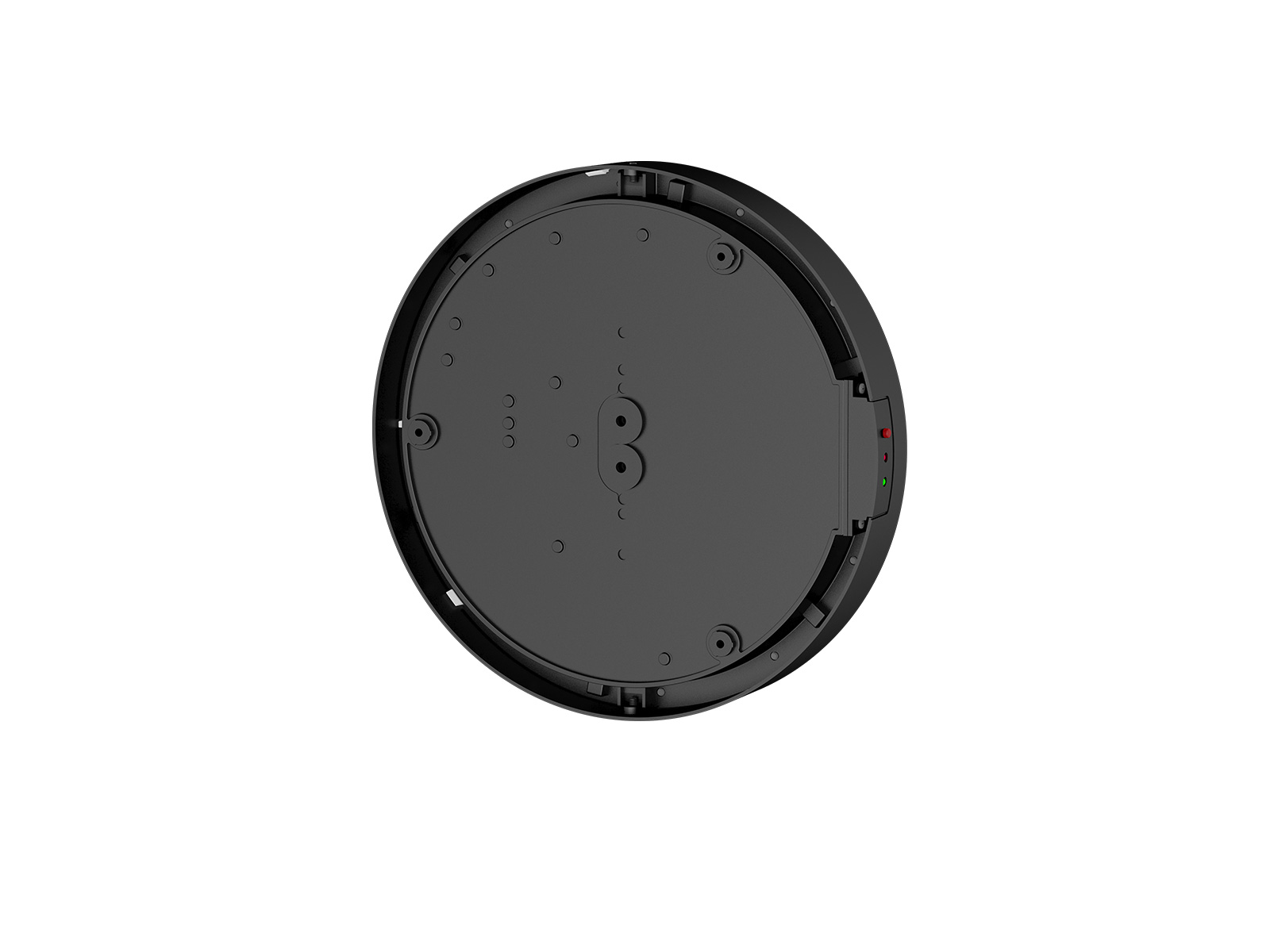

AL104 kitchen flush mount lighting

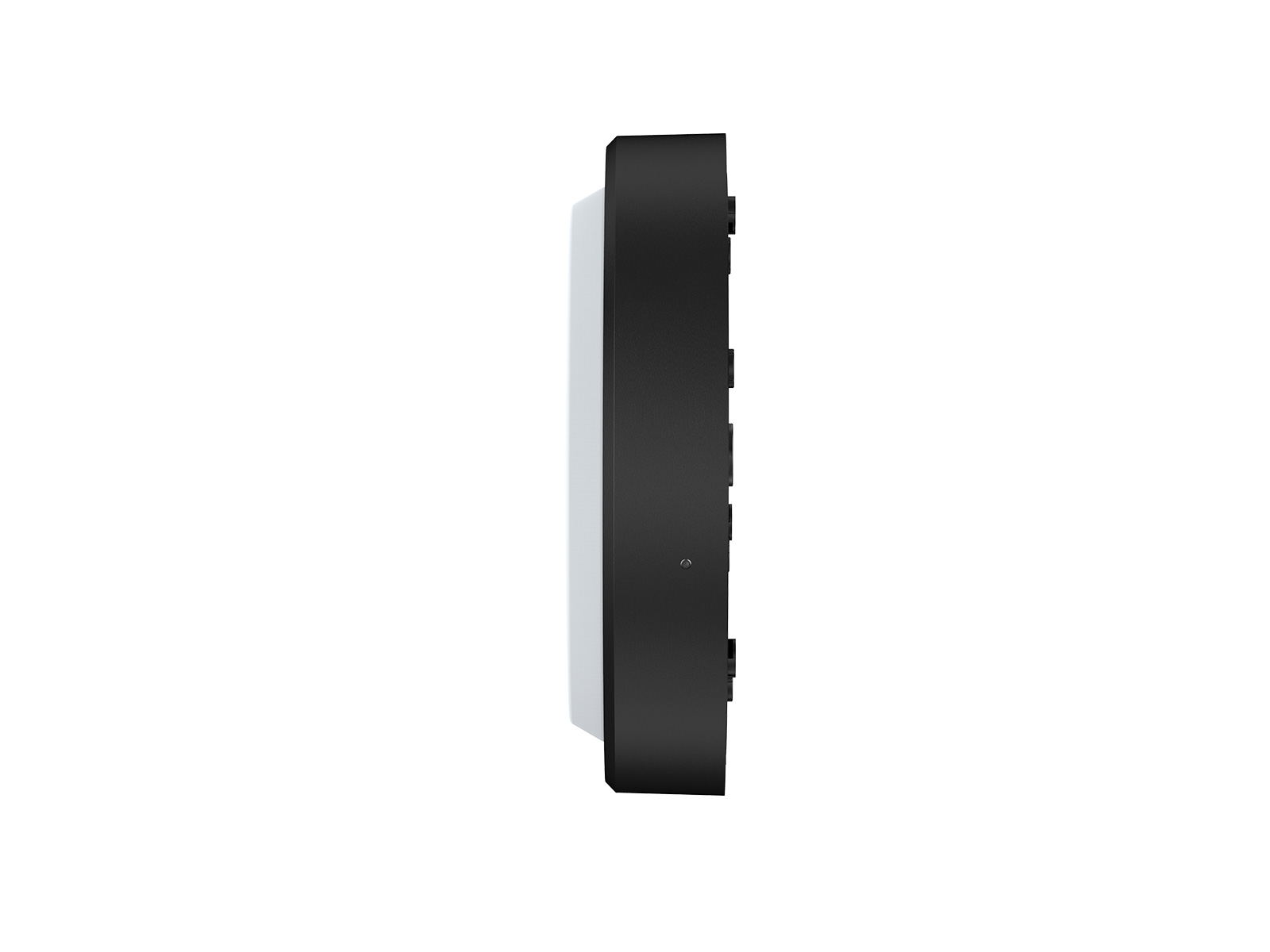

AL104 bathroom flush ceiling lights
AL104 IP65 High Quality Outdoor Bulkhead
AL104 bedroom decoration wall lamp fixture
AL104 kitchen flush mount lighting
AL104 bathroom flush ceiling lights

AL104 IP65 High Quality Outdoor Bulkhead

The product has been discontinued online. Please contact our sales representative for more information.

AL104 is a high cost performance ceiling light, it has three frames for option,can meet a wider application demand. Adopt high lumen 2835 SMD light source and PC diffuser, it has a high tranmittance and uniform light output, the whole design has a large lighting area and light weight. Easy to install: laboursaving with fast connector. High waterproof level with multiple functions.

Ceiling light features:

  • Vandal-proof design

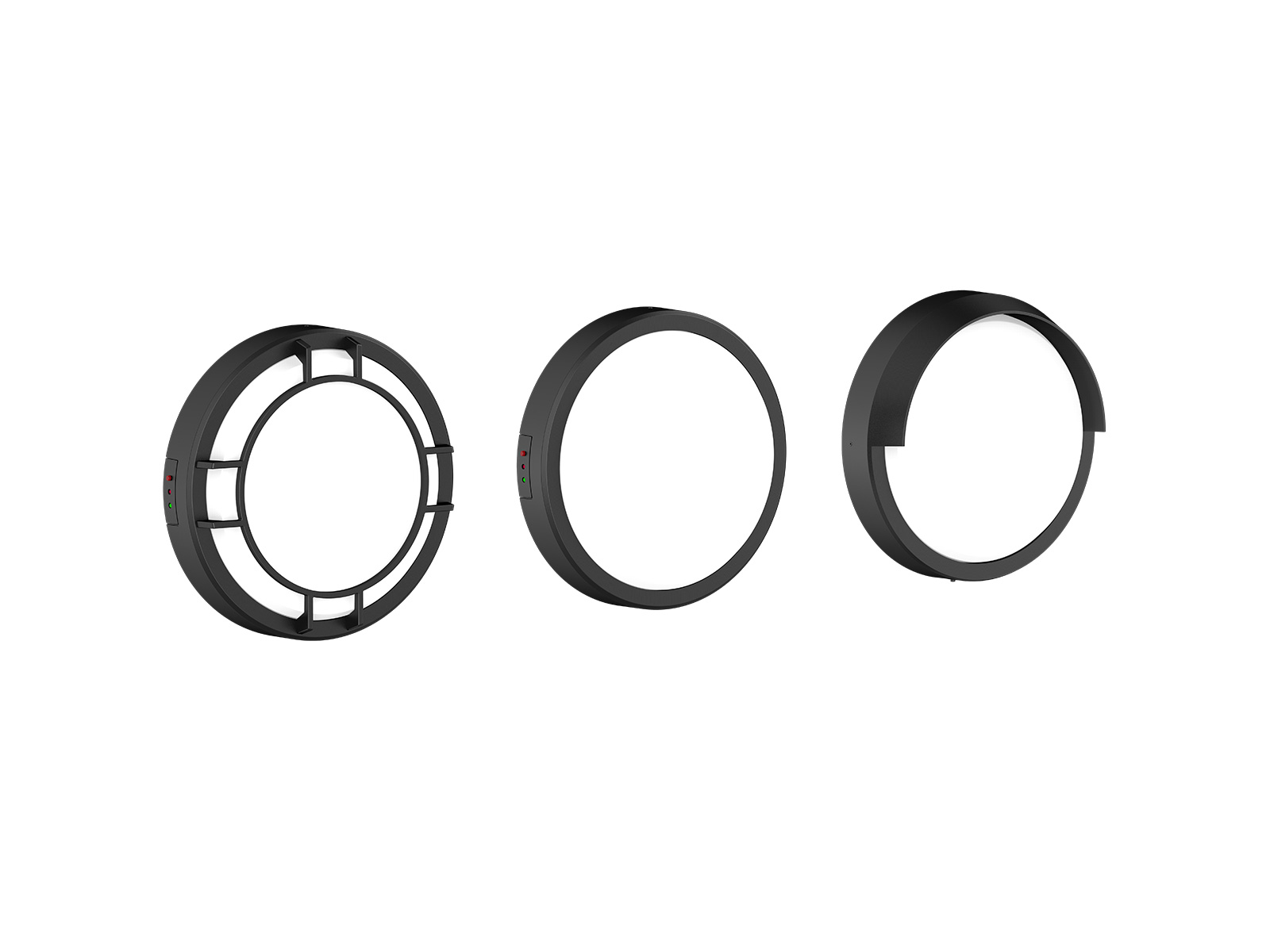

  • Four types of frame design: round, cross, eyelid, eaves.
  • High protection level, IK10, IP65.
  • High lumen efficiency, 120lm/W.
  • Interchangeable CCT(3000K+4000K+5700K)with slide switch.
  • Interchangeable power 20W/25W with slide switch for 12inch only.
  • Function: Adjustable sensor, interchangeable CCT+adjustable power, emergency.
  • Dimming way: Triac dimming, DALI dimming, 0-10V dimming.
Specification Files IES & LDT Files
Overview
Specifications

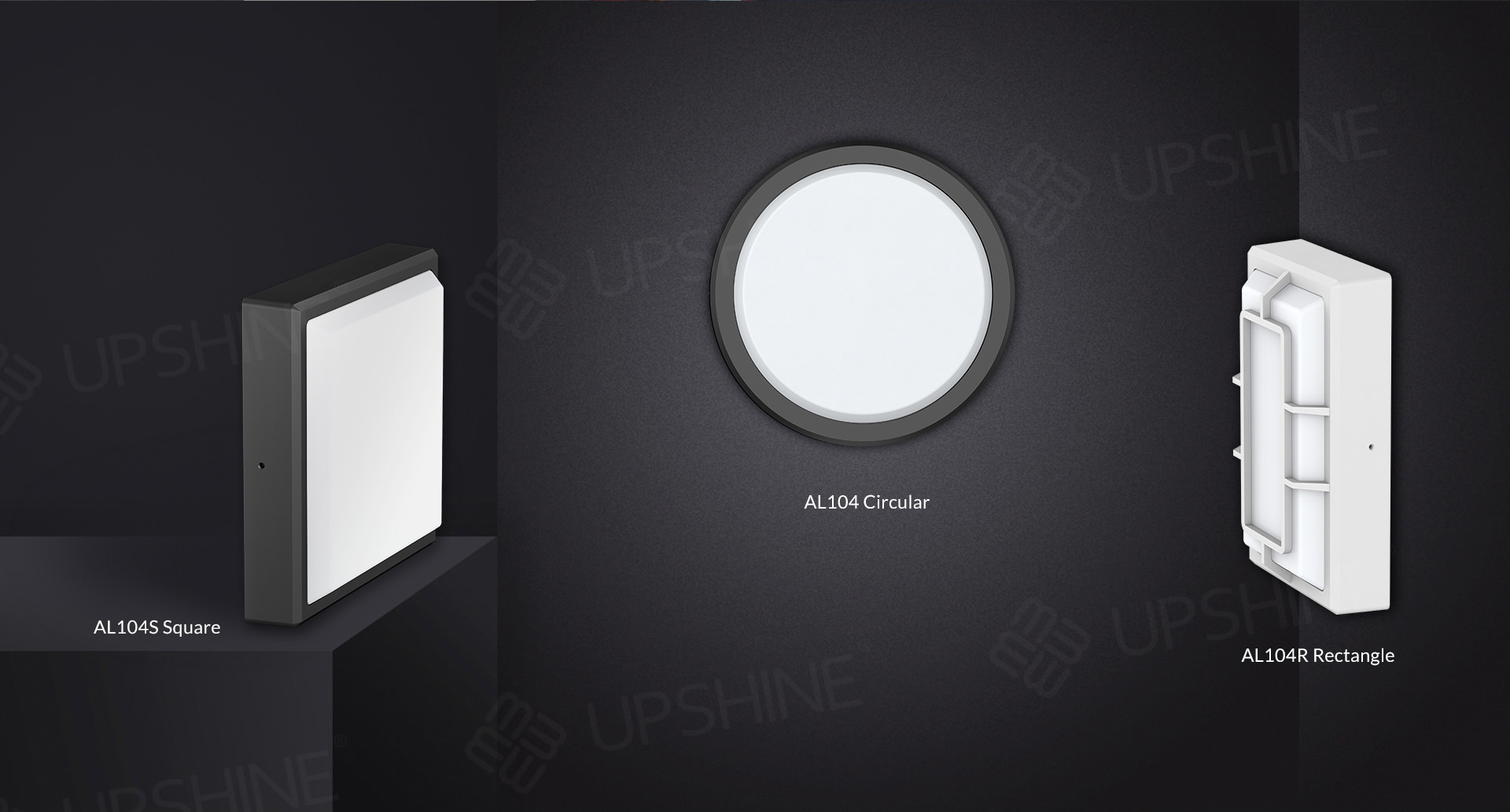

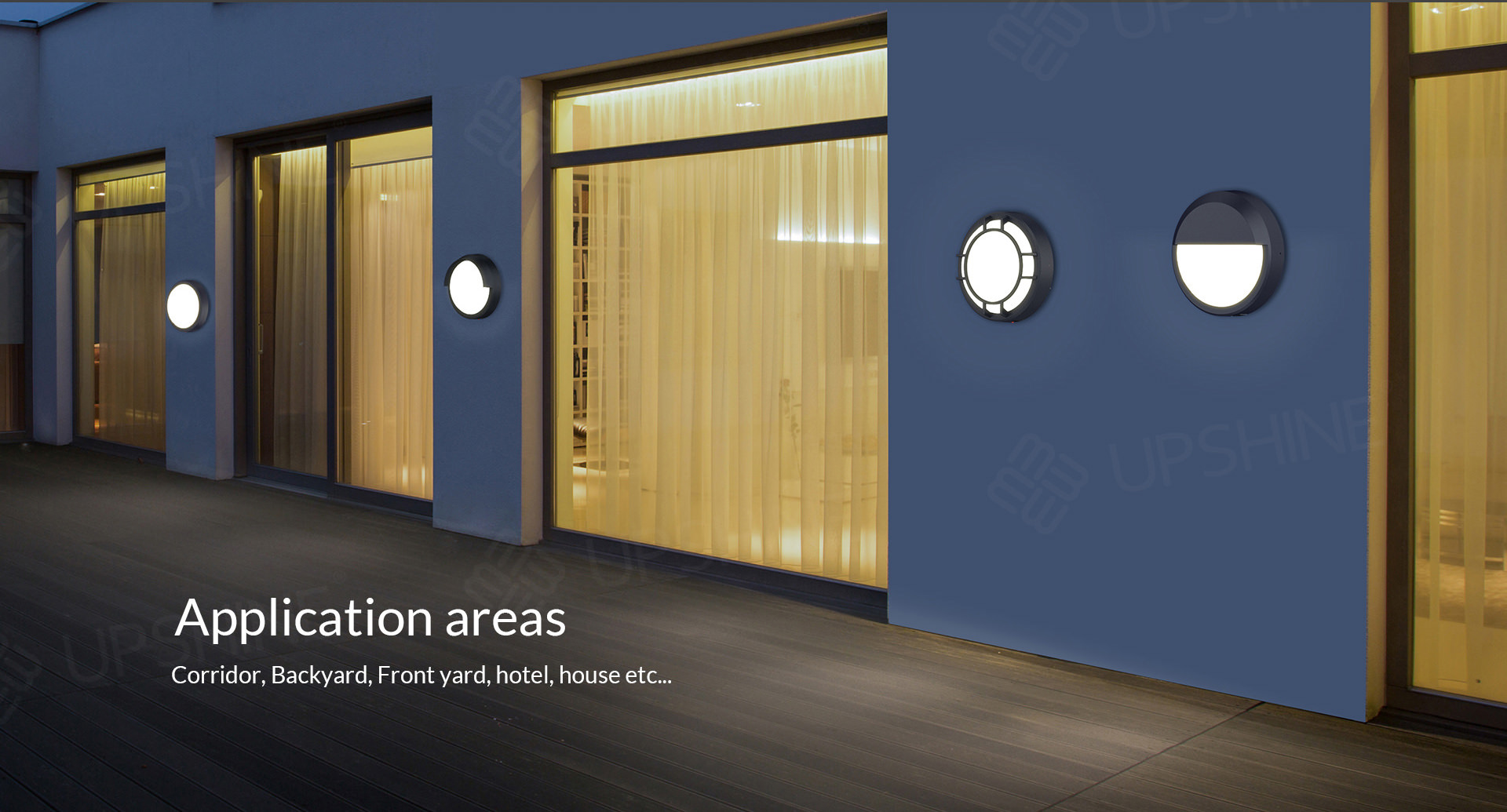

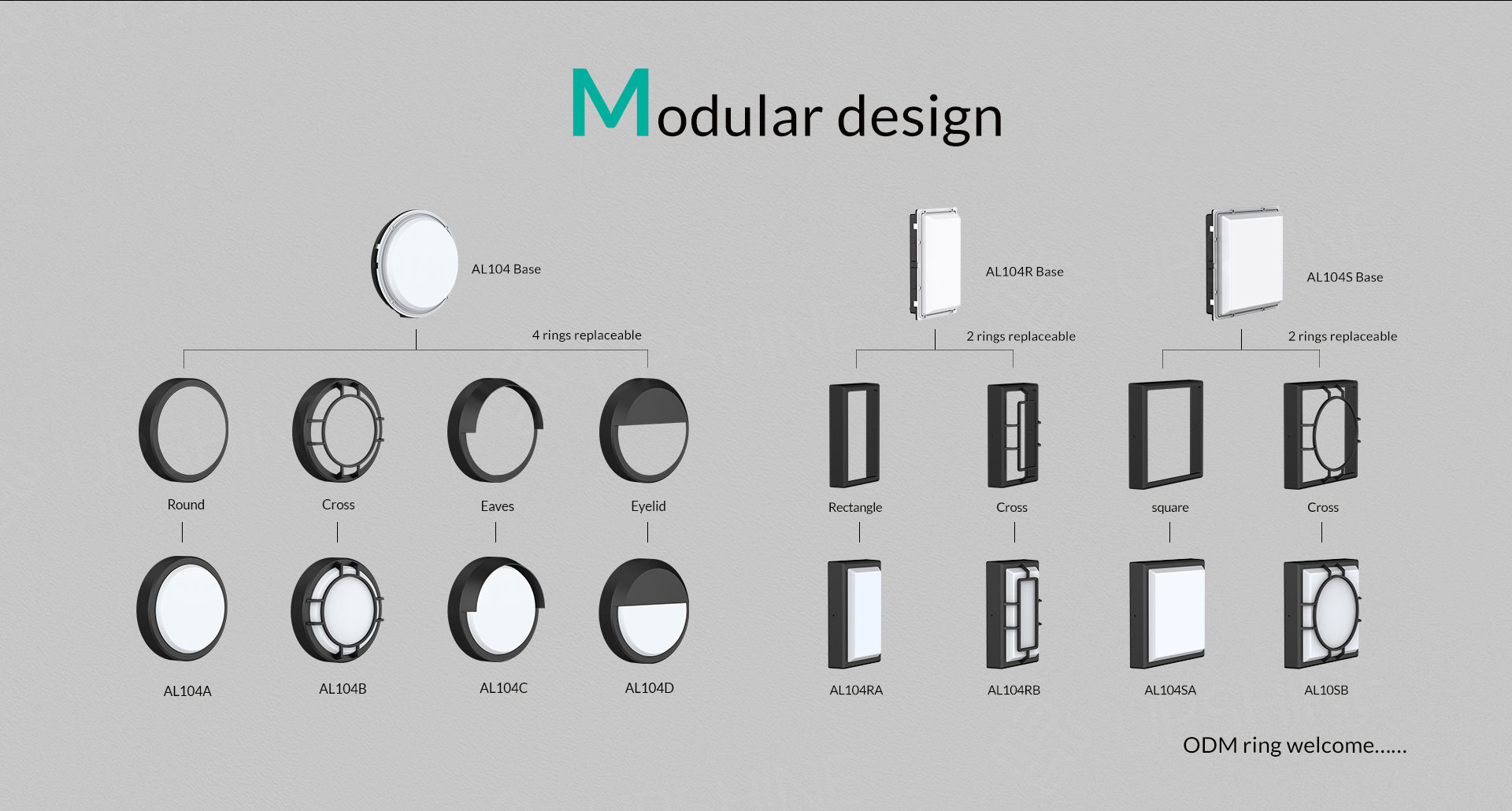

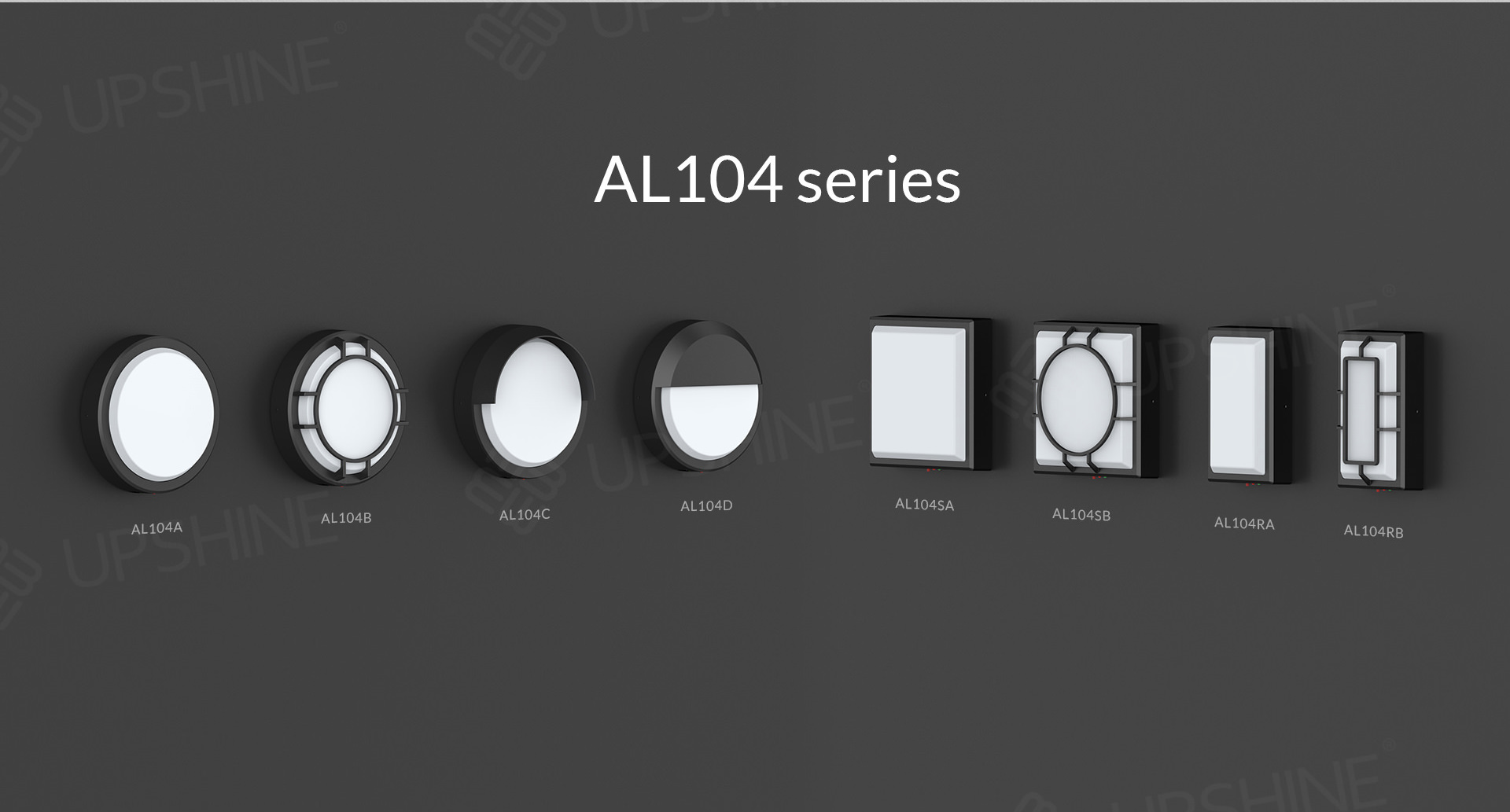

AL104_01 new model designAL104_02 three shapesAL104_03modular designAL104_04 product seriousAL104_05application area
Code No. AL104-10-15W AL104-12-25W (Wattage Changeable)
Dimension(mm) Ø250*63MM Ø250*68MM Ø250*83MM Ø250*67MM Ø300*63MM Ø300*68MM Ø300*83MM Ø300*67MM
Watt(W) 15W 20W/25W
Rated Input Voltage(V) AC230V
Input Voltage(V) AC200-240V
Light Source SMD2835 0.2W
SDCM <6
CCT(K) 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K
CCT Selection DIP Switch YES
Non-DIM 1-CCT Luminous Flux (lm) ±5% 1550-1750 1300-1500 1400-1600 1000-1100 20W:2050-2350 25W:2550-2950 20W:1750-2100 25W:1800-2150 20W:1900-2150 25W:1950-2150 20W:1300-1400 25W:1800-1900
DIM 1-CCT Luminous Flux (lm) ±5% 1500-1700 1250-1450 1350-1550 1000-1100 20W:2100-2350 25W:2600-3000 20W:1750-2100 25W:1800-2150 20W:1950-2150 25W:2350-2600 20W:1300-1400 25W:1800-1900
Non-DIM 3-CCT Luminous Flux (lm) ±5% 1550-1750 1300-1500 1400-1600 1000-1100 20W:2050-2350 25W:2550-2950 20W:1750-2100 25W:1800-2150 20W:1900-2150 25W:1950-2150 20W:1300-1400 25W:1800-1900
DIM 3-CCT Luminous Flux (lm) ±5% 1500-1700 1250-1450 1350-1550 1000-1100 20W:2100-2350 25W:2600-3000 20W:1750-2100 25W:1800-2150 20W:1950-2150 25W:2350-2600 20W:1300-1400 25W:1800-1900
CRI ≥80
Beam Angle (°) 120°
LED Driver Driver built-in
Dimming Option Triac / DALI / 0-10V
Sensor YES
Emergency Kits YES
Electrical Class Class I
Ingress Protection (IP Rating) IP65
Impact Resistance (IK Rating) IK10
Product Finishing(Base) BLACK RAL 9005+WHITE RAL 9016
Materials of Optics Polycarbonate opal diffuser
Materials of Housing Die-casting
Lifetime (hr) 50,000hours at 25℃
Glow wire test (℃ ) 850℃
Operating Temp. (℃ ) -20℃ ~45℃
Storage Temp. (℃ ) -20℃ ~65℃
Installation Wall mount / Surface mount
