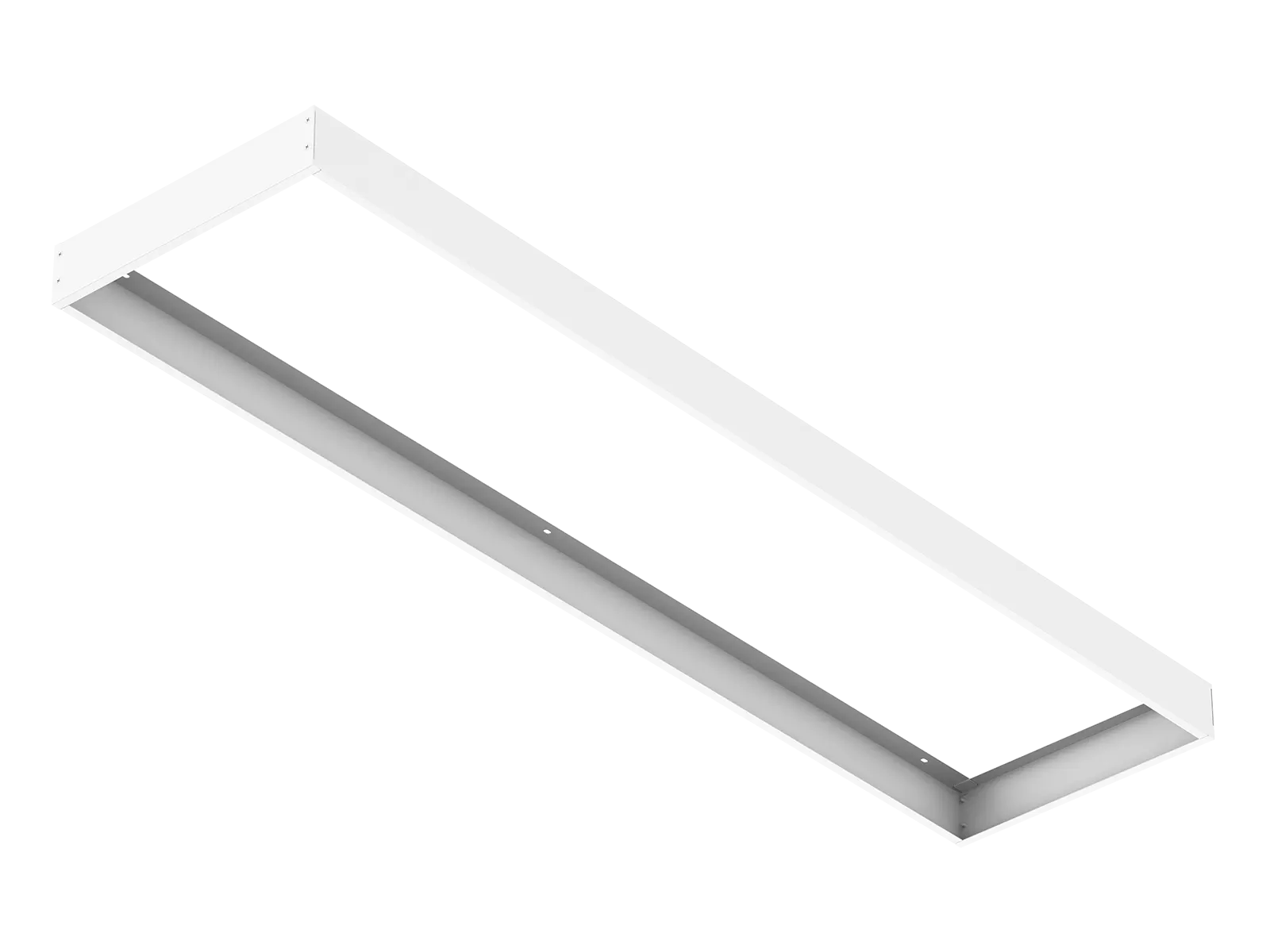

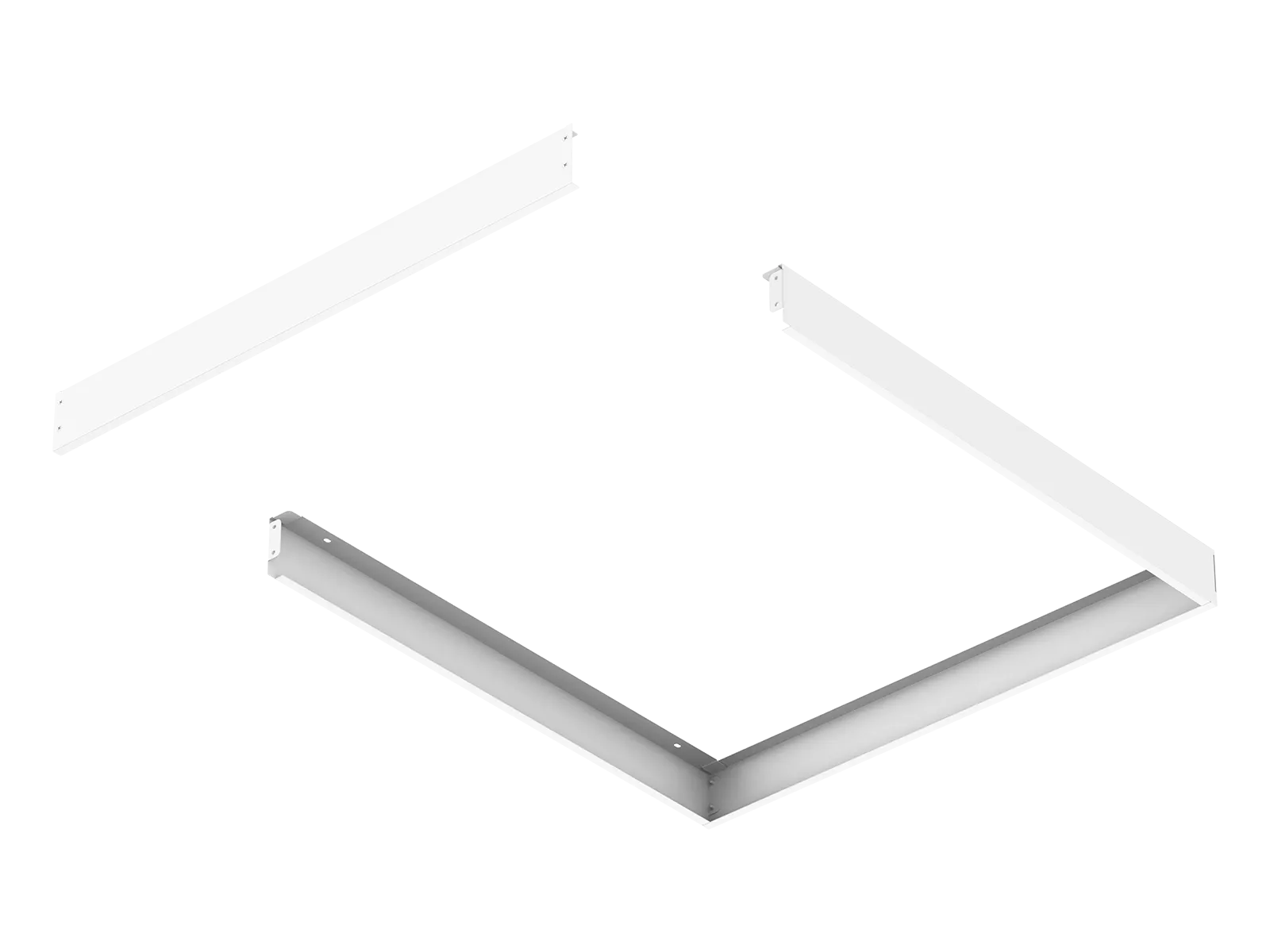

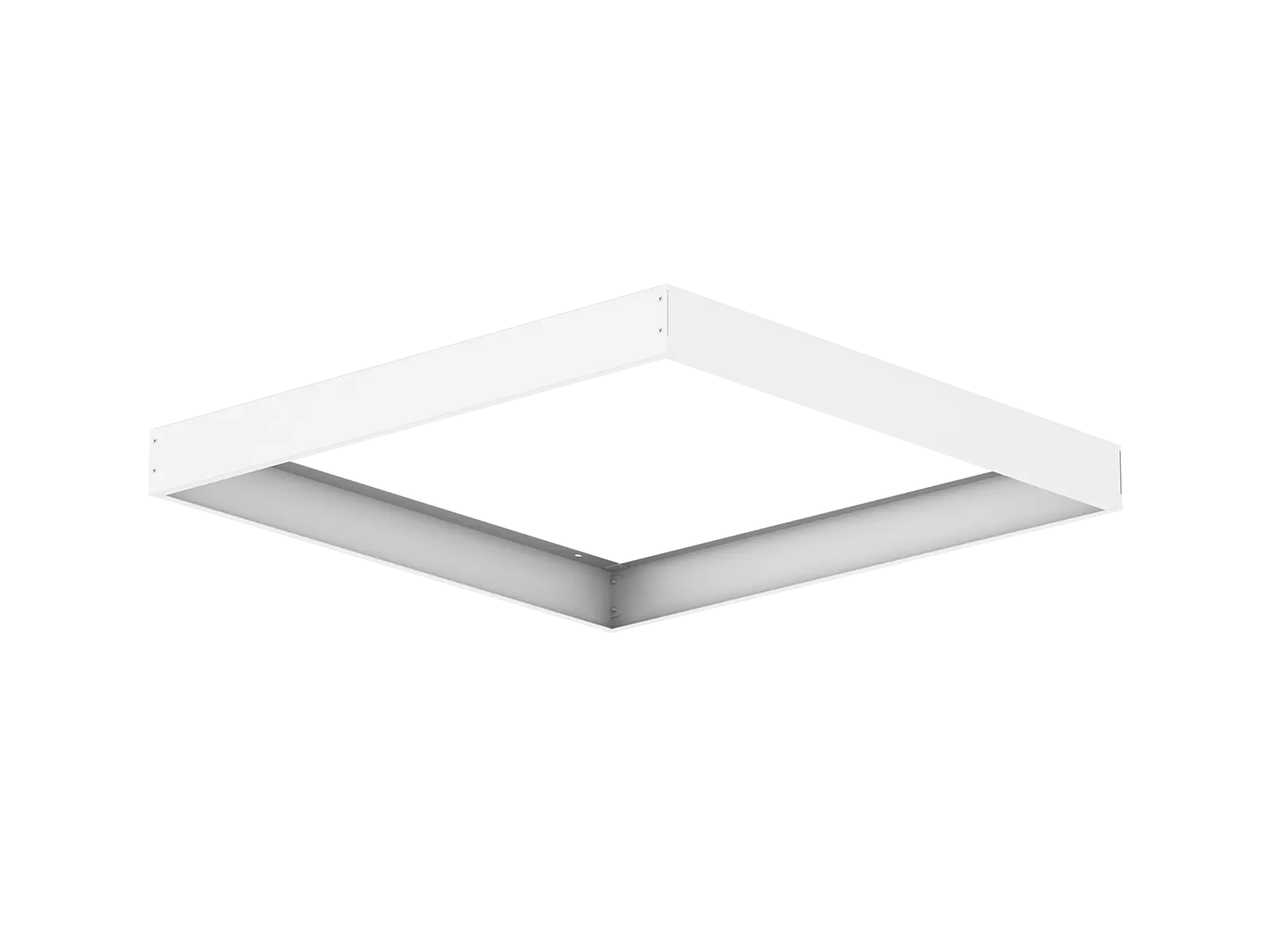

This ceiling mount frame utilizes high-strength cold-rolled steel as the main material, ensuring durability and stability. Combined with precise stamping and surface spraying processes, it provides a solid structure while offering a simple and modern visual aesthetic. The ceiling frame features a DIY design, greatly reducing packaging and transportation costs.
Application: Commercial lighting applications such as shopping malls, offices, conference rooms, classrooms, libraries, supermarkets, hotels, hospitals, theaters, banks, and subway stations.
| Code | Size(mm) | Product Weight (Kg) | Package weight (Kg) | Carton Size(cm) | Qty/CTN | 20GP (pcs) | 40HQ (pcs) | ||
|---|---|---|---|---|---|---|---|---|---|
| N.W/PC | G.W/PC | N.W/CTN | G.W/CTN | ||||||
| ACC-CF20-3030 | 300*300*60 | 0.61 | 0.65 | 14.4 | 16.1 | 65.5*24.5*18 | 24 | 23328 | 54432 |
| ACC-CF20-3060 | 300*600*60 | 0.9 | 1.07 | 10.8 | 12.9 | 65.5*24.5*18 | 12 | 11664 | 27216 |
| ACC-CF20-6060 | 600*600*60 | 1.18 | 1.31 | 14.2 | 15.8 | 65.5*24.5*18 | 12 | 11664 | 27216 |
| ACC-CF20-6262 | 625*625*60 | 1.23 | 1.35 | 14.8 | 16.8 | 65.5*24.5*18 | 12 | 11664 | 27216 |
| ACC-CF20-30120 | 300*1200*60 | 1.53 | 1.65 | 16.5 | 18.2 | 125.5*16.5*22 | 10 | 5640 | 13200 |
| ACC-CF20-60120 | 600*1200*60 | 1.8 | 1.93 | 18.1 | 20.9 | 125.5*16.5*22 | 10 | 5640 | 13200 |
