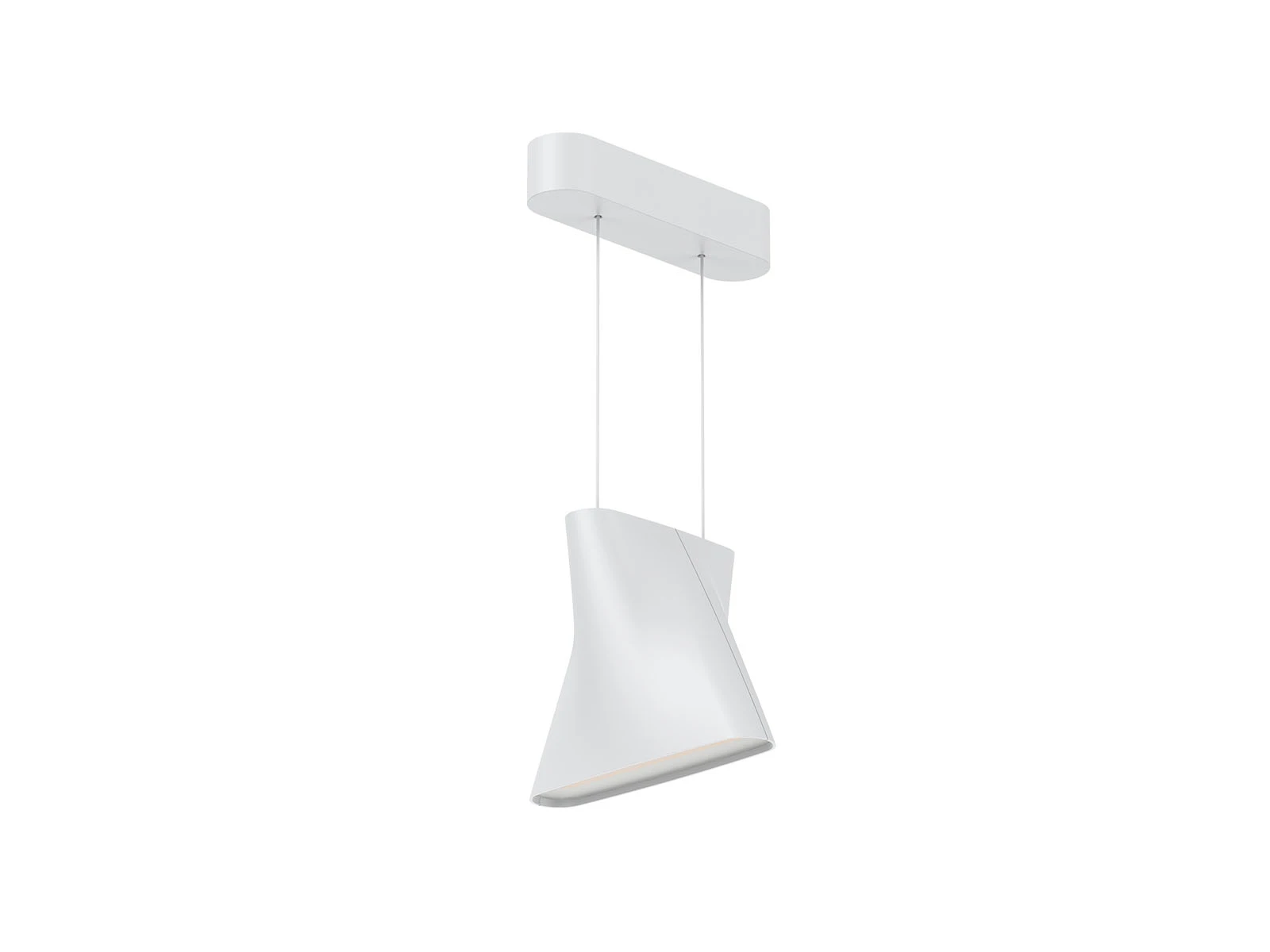

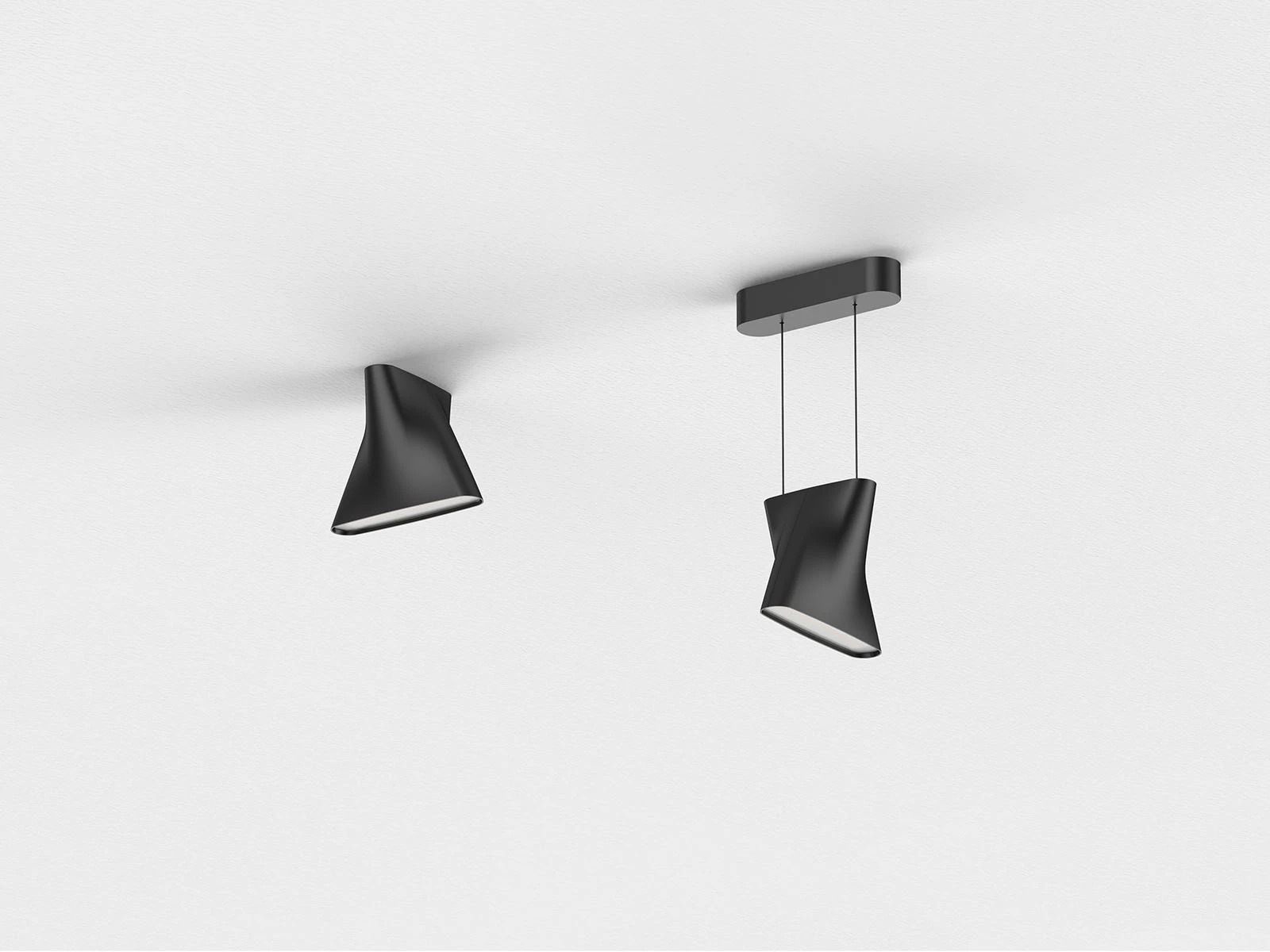

This is a unique series design with pendant and surface mounted installation. For pendant version, it’s direct and indirect lighting effect, also the pendant wire can be adjusted to different length. Both version adopted ADC12 aluminium lamp body to support an excellent heat dissipation, adjustable CCT allows SKU saving and meet different application use.
Application Areas: For general lighting, it’s widely used in residential, hotel, mall etc, suitable for restaurant, living room, bar, corridor, reception such areas.
| Code | DL417-15W | PD417-15W | ||
|---|---|---|---|---|
| Dimension(mm) | L184*W124*H143mm | L184*W124*H1679mm | ||
| Watt(W) | 15W | |||
| Rated Input Voltage | AC220-240V | |||
| Input Voltage | AC198-264V | |||
| Light Source | SMD | |||
| SDCM | <6 | |||
| CCT(K) | 1-CCT: 3000K/4000K || 2-CCT: 3000K+4000K | |||
| CCT Selection DIP Switch | Yes | |||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 1650-1900 | 1380-1560 |
| DIM | 1600-1850 | 1270-1420 | ||
| 3-CCT | Non-DIM | 1650-1900 | 1380-1560 | |
| DIM | 1600-1850 | 1270-1420 | ||
| CRI | 80 | |||
| Beam Angle (°) | 50° | Up 120°, Down 50° | ||
| LED Driver | Driver built-in | |||
| Dimming Option | Triac | |||
| Sensor | NO | |||
| Emergency Kits | NO | |||
| Electrical Class | Class I | Class II | ||
| Ingress Protection(IP Rating) | IP20 | |||
| Impact Resistance(IK Rating) | IK03 | |||

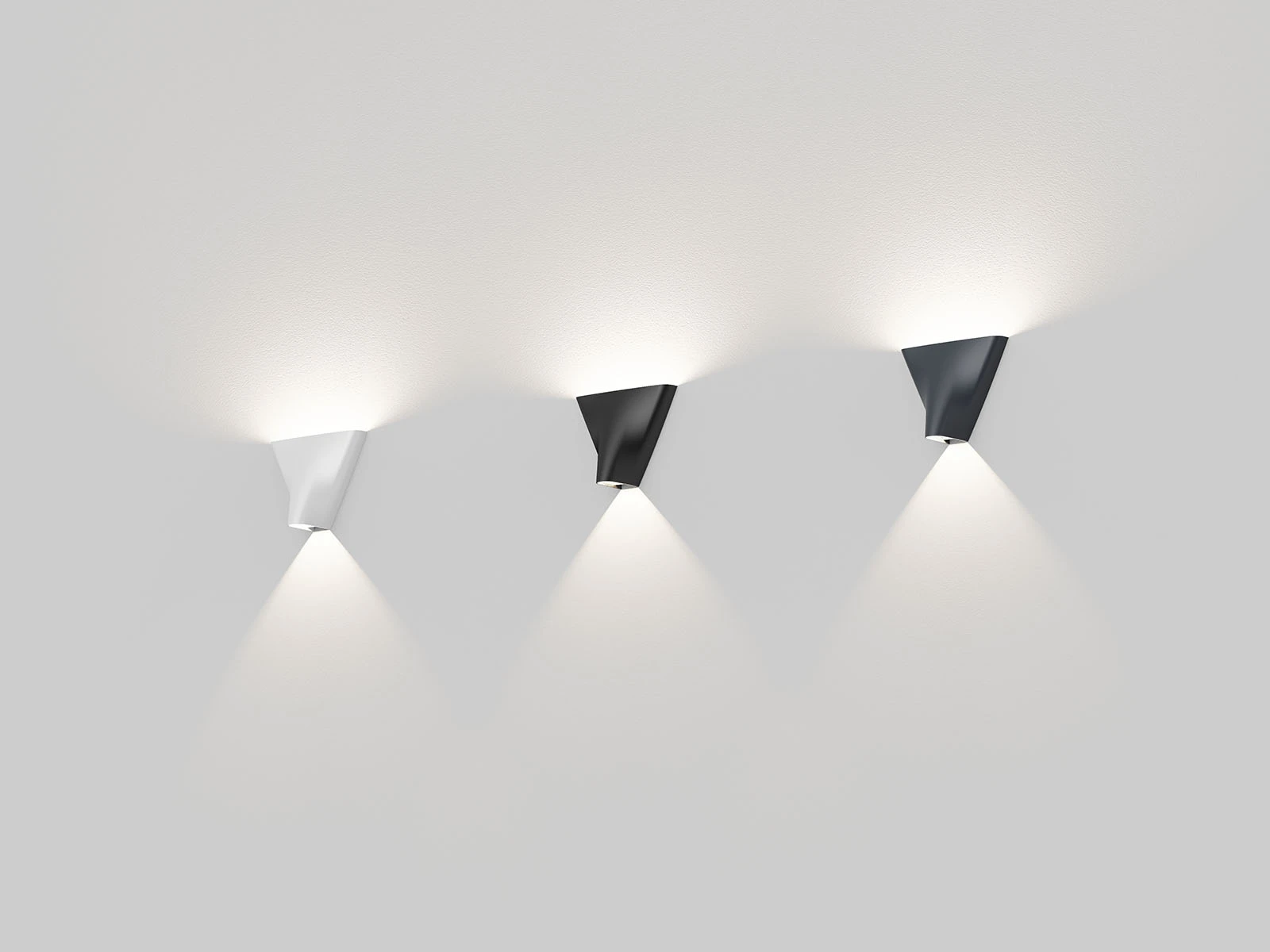

| Product Finishing | Black RAL9005, White RAL9016, Gray RAL7015 | |||
| Optics Material | PC | |||
| Housing Material | Die-Casting Aluminium | |||
| Lifetime(hr) | 5,0000h | |||
| Glow wire test(°C) | 750°C | |||
| Operating Temp(°C) | -20°C~45°C | |||
| Storage Temp(°C) | -20°C~65°C | |||
| Installation | Surface mount | Pendant | ||
