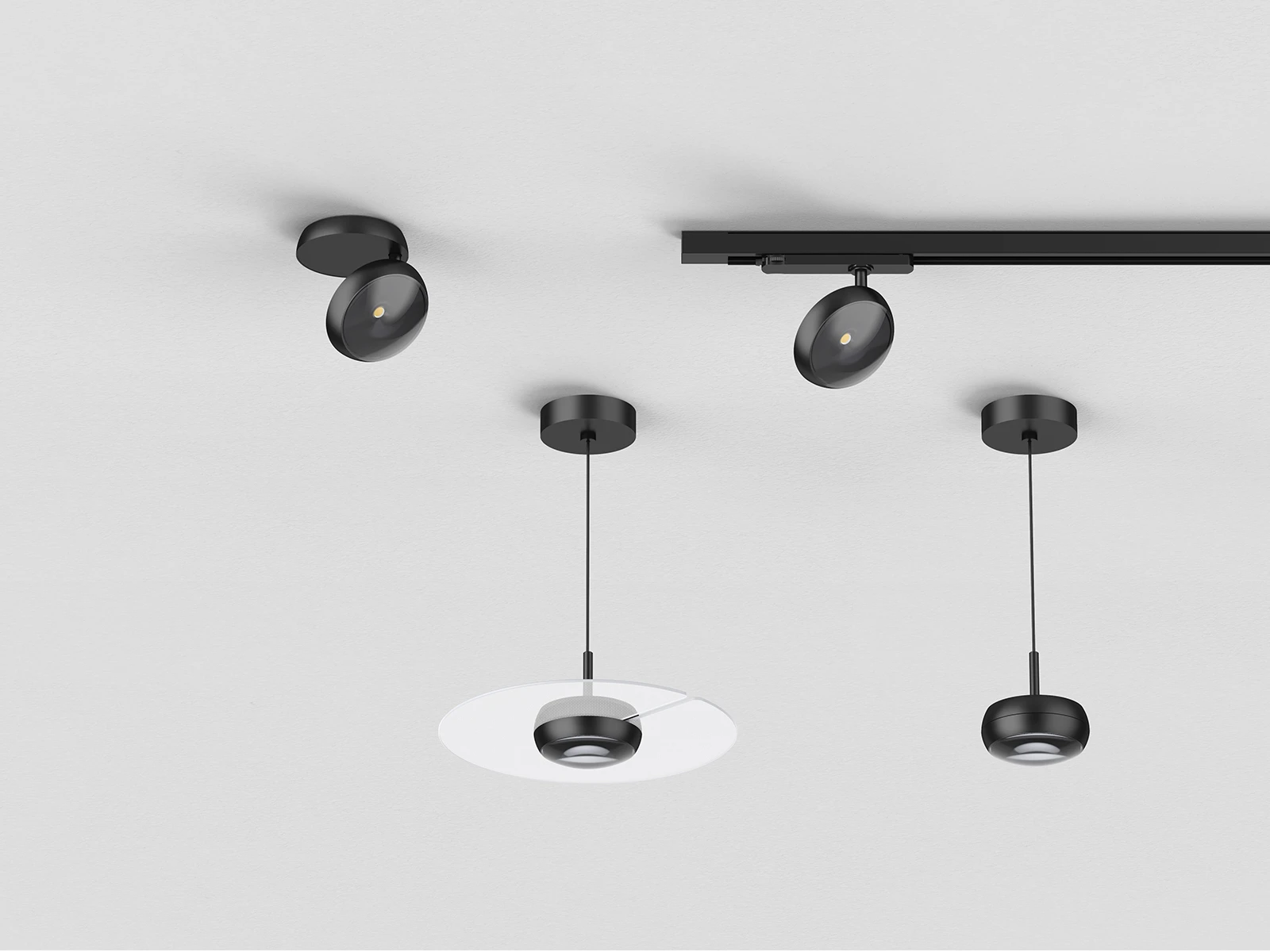

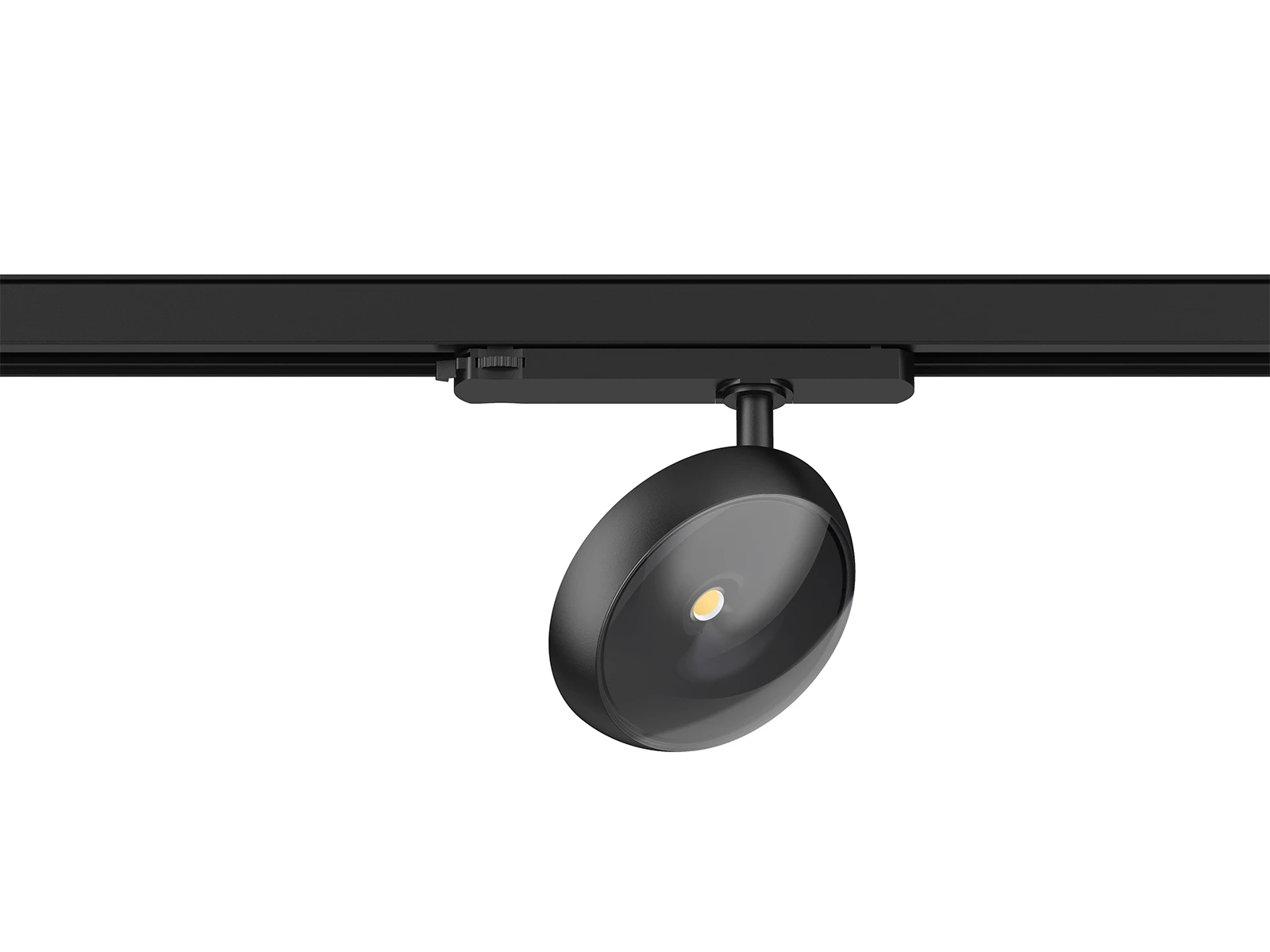

The 413 series adopts round design makes the fixture more elegant, the different installation methods can be integrated into various home styles to bring a personalized atmosphere to the space.
Up/middle/down emit light at the same time, the main beam angle is 80°
APPLICATIONS: Widely used in hotel rooms, shopping malls, villa clubs, home offices and other places.
|
| Total load wattage | 8W | 10W | 15W |
|---|---|---|---|---|
| Output | Rated output current | 180mA | 250mA | 360mA |
| Output Voltage range | DC23-40V | DC30-40V | DC30-40V | |
| Line Regulation | ±5% | |||
| Setup Rise Time | ≤500ms @230V | |||
| Flickering Index | 5%(LOW RISK) | |||
| IEC-PST | <1 | 0.012 | <1 | |
| CIE (SVM) | ≤0.4 | 0.23 | ≤0.4 | |
| Input | Rated Input Voltage | AC220-240V | ||
| Input Voltage | AC198-264V | |||
| Frequency | 50Hz | 50/60Hz | 50/60Hz | |
| Rated Input Current | ≤0.05A | ≤0.06A | ≤0.08A | |
| Input Current | ≤0.05A | ≤0.06A | ≤0.09A | |
| Power Factor | 0.9 | |||
| Efficiency | ≥78% | 80%-82% | ≥84% | |
| Inrush current | 1.68A,42.4us | 1.8A/3uS@230Vac | 20.6A,3.2us | |
| No load wattage | <0.5W @230V | |||
| Stand-by power consumption | - | 0.3W | - | |
| Protection | Short circuit protection | PASS | ||
| Over voltage protection | PASS | |||
| Over temperature protection | PASS | |||
| Safety & EMC | Withstand voltage | I/P-O/P:3.75KVac,<5mA 60S | ||
| Isolation Resistance | I/P-O/P: 500VDC, ≥4M Ω | |||
| Surge | IEC/EN61000-4-5 (L-N:1KV, L/N-PE:2KV) | |||
| EMC Emission | EN55015, EN61000-3-2 | |||
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11; EN61547 | |||
| Total load wattage | 8W | 10W | 15W | |
|---|---|---|---|---|
| Output | Rated output current | 180mA | 250mA | 350mA |
| Output Voltage range | DC23-40V | DC30-40V | DC23-40V | |
| Line Regulation | ±5% | |||
| Setup Rise Time | ≤500ms @230V | |||
| Flickering Index | 5%(LOW RISK) | |||
| IEC-PST | <1 | 0.063 | <1 | |
| CIE (SVM) | ≤0.4 | 0.6 | ≤0.4 | |
| Input | Rated Input Voltage | AC220-240V | ||
| Input Voltage | AC198-264V | |||
| Frequency | 50Hz | |||
| Rated Input Current | ≤0.05A | ≤0.06A | ≤0.08A | |
| Input Current | ≤0.05A | ≤0.06A | ≤0.09A | |
| Power Factor | 0.9 | |||
| Efficiency | ≥78% | ≥80% | ≥80% | |
| Inrush current | 1.68A,42.4us | 1.2A,28uS@230Vac | 4.56A,40us | |
| No load wattage | <1W @230V | |||
| Stand-by power consumption | - | 0.5W | - | |
| Protection | Short circuit protection | PASS | ||
| Over voltage protection | PASS | |||
| Over temperature protection | PASS | |||
| Safety & EMC | Withstand voltage | I/P-O/P:3.75KVac,<5mA 60S | ||
| Isolation Resistance | I/P-O/P: 500VDC, ≥4M Ω | |||
| Surge | IEC/EN61000-4-5 (L-N:1KV, L/N-PE:2KV) | |||
| EMC Emission | EN55015, EN61000-3-2 | |||
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11; EN61547 | |||
