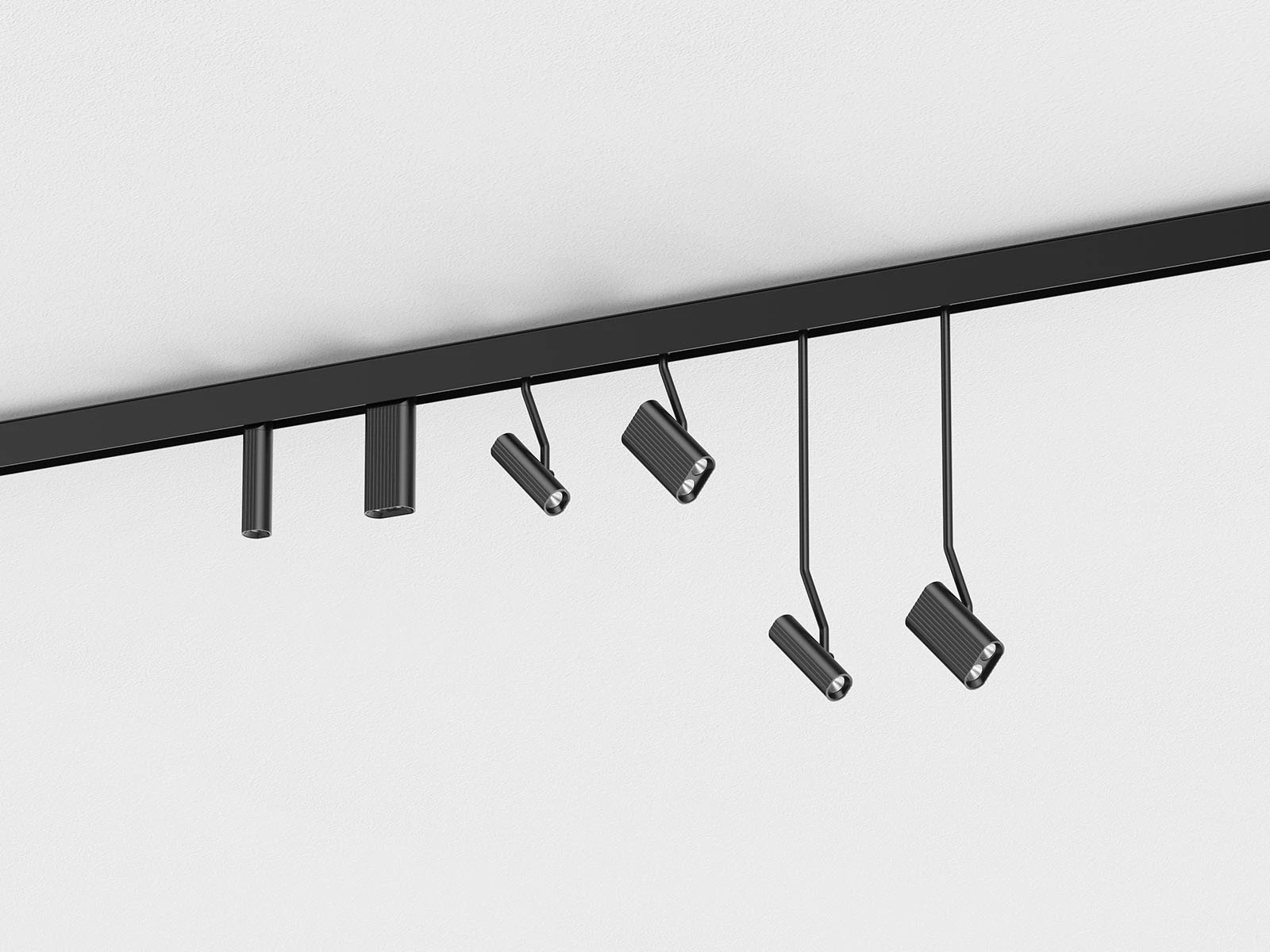

This series features a streamlined appearance with a screwless surface, simple and compact design, good integration with the environment. It operates at a low voltage of 48V, ensuring safety. The press-lock design provides a sturdy and reliable structure while making installation easy. Integrated die-casting lamp body ensures good heat management and longer lifespan. Whole series adopts CRI90 branded LED. The internal reflector and anti-glare cover control the optics, ensuring precise spotlighting. The adjustable arm version supports 360°horizontal rotation and 320°vertical rotation Through the adjustable arm, the distance between the light source and the illuminated object can be optimized, ensuring proper lighting while the fixture itself becomes an integral part of the environment's decor, enhancing the overall aesthetic appeal of the space.
APPLICATIONS: It's widely used in office, high-end commercial or residences, museum, library, exhibition halls, specialty stores, shop windows, and supermarkets etc.
CODE | DC-TL145A-8W | DC-TL145A-100-8W | DC-TL145A-320-8W | DC-TL145B-11W | DC-TL145B-100-11W | DC-TL145B-320-11W | ||
---|---|---|---|---|---|---|---|---|
Dimension(mm) | 30*28*132.5 | 30*28*100 | 30*28*320 | 53.2*28*132.5 | 53.2*28*100 | 53.2*28*320 | ||
Watt(W) | 8W Max. (6W/4.5W optional) | 11W Max. (9W/7W optional) | ||||||
Input Voltage | DC48V | |||||||
Light Source | COB | |||||||
CCT(K) | 1-CCT: 3000K/4000K | |||||||
CCT Selection DIP Switch | NO | |||||||
Luminous Flux (lm) ±5% CRI90 | 1-CCT | Non-DIM | 8W: 620-750 6W: 510-600 4.5W: 390-480 | 11W: 940-1200 9W: 760-860 7W: 570-700 | ||||
Beam Angle(°) | 30°/45° | |||||||
Product weight(Kg) | N.W/PC | 0.15 | 0.17 | 0.25 | 0.2 | 0.25 | 0.3 | |
G.W/PC | 0.222 | 0.255 | 0.412 | 0.273 | 0.335 | 0.467 | ||
Package weight(Kg) | N.W/CTN | 3.60 | 4.08 | 6.00 | 4.80 | 6.00 | 7.20 | |
G.W/CTN | 5.80 | 6.78 | 10.93 | 7.03 | 10.93 | 12.29 | ||
Qty/CTN (PCS) | 24 | 24 | 24 | 24 | 24 | 24 | ||
Carton Size(cm) | 33.5*29.5*24.5 | 44*34.5*27 | 58*39.5*39 | 33.5*29.5*24.5 | 44*34.5*27 | 58*41*39 | ||
20GP(pcs) | 27864 | 16128 | 6480 | 27864 | 16128 | 6480 | ||
40HQ(pcs) | 61440 | 36720 | 15696 | 61440 | 36720 | 15552 |
