20W Spot Lights With Directional Head

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • 24°/36°/45°/60° beam angle
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

90 degree adjustable lighting orientation360 degree in horizontal directionpower factorled beam angle 24 degree36 degree beam angle45 degree beam angleled beam angle 60 degreeip20 ratingeasy installation

APPLICATION AREAS

living roomkitchenbedroomretail store lightingclassroom lighting

CERTIFICATIONS

ce certificationRoHs certification

POLAR DIAGRAM COMPARISON

20w cob track light photometric data

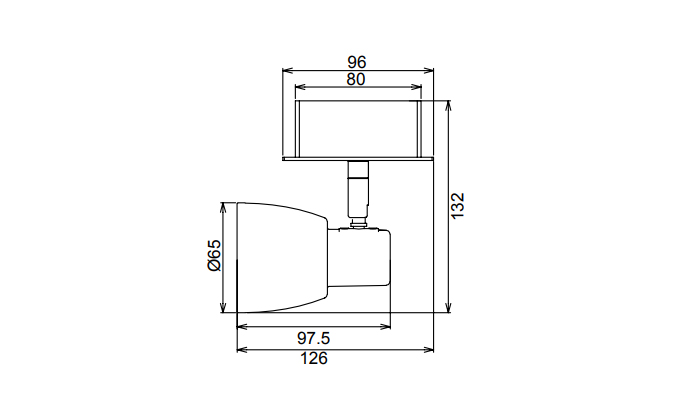

DIMENSION

sizes of commercial tracking lightingmulti head track light Technical Specification

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
20W AC100-240V ≥0.9 1500 24°/36°/45°/60° 2700K 40000h ≥80 No 126*96*132mm
20W AC100-240V ≥0.9 1540 24°/36°/45°/60° 3000K 40000h ≥80 No 126*96*132mm
20W AC100-240V ≥0.9 1600 24°/36°/45°/60° 4000K 40000h ≥80 No 126*96*132mm
20W AC100-240V ≥0.9 1560 24°/36°/45°/60° 5000K 40000h ≥80 No 126*96*132mm
20W AC230V ≥0.9 1400 24°/36°/45°/60° 2700K 40000h ≥80 Yes 126*96*132mm
20W AC230V ≥0.9 1450 24°/36°/45°/60° 3000K 40000h ≥80 Yes 126*96*132mm
20W AC230V ≥0.9 1500 24°/36°/45°/60° 4000K 40000h ≥80 Yes 126*96*132mm
20W AC230V ≥0.9 1360 24°/36°/45°/60° 5000K 40000h ≥80 Yes 126*96*132mm
