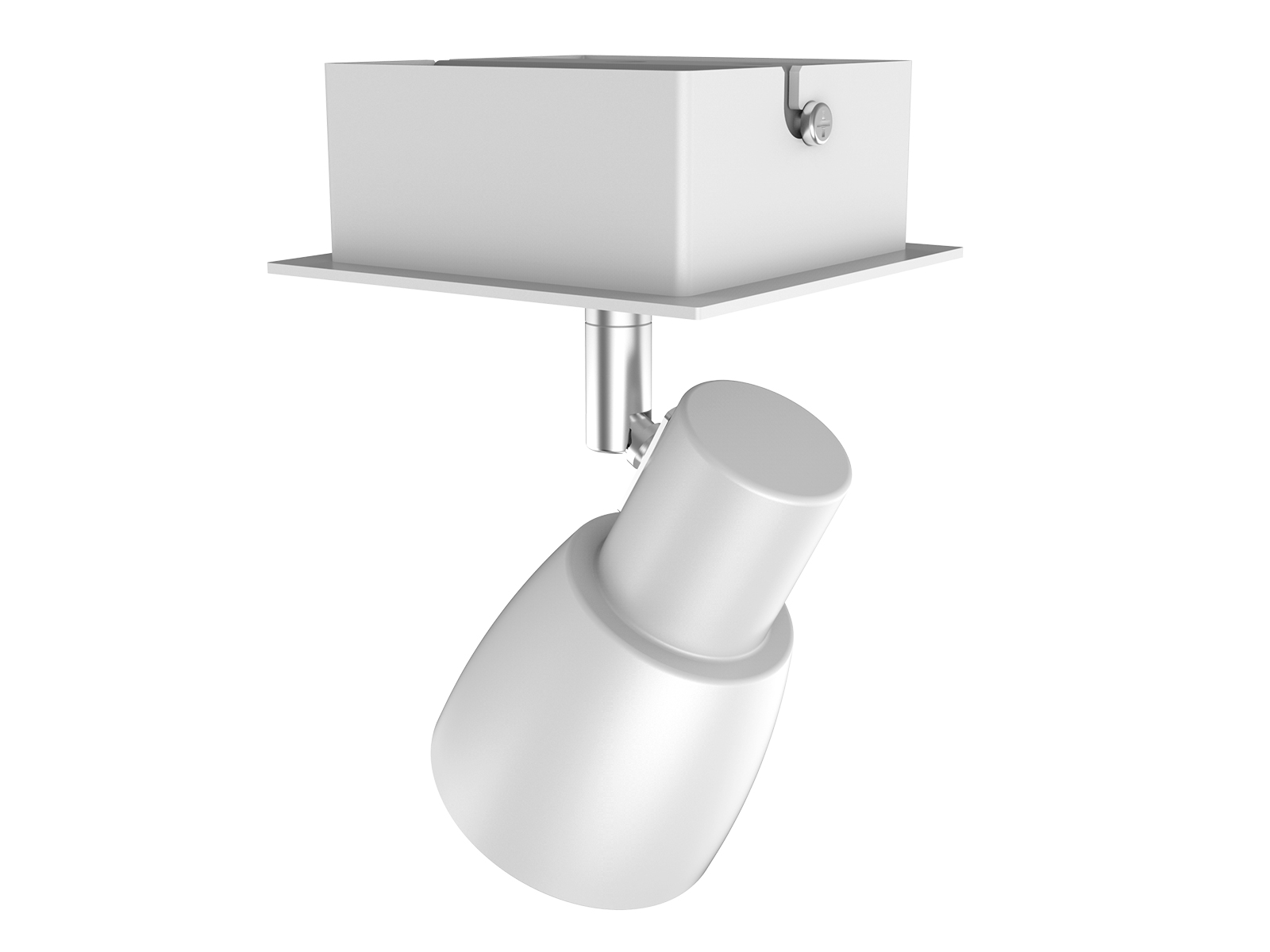

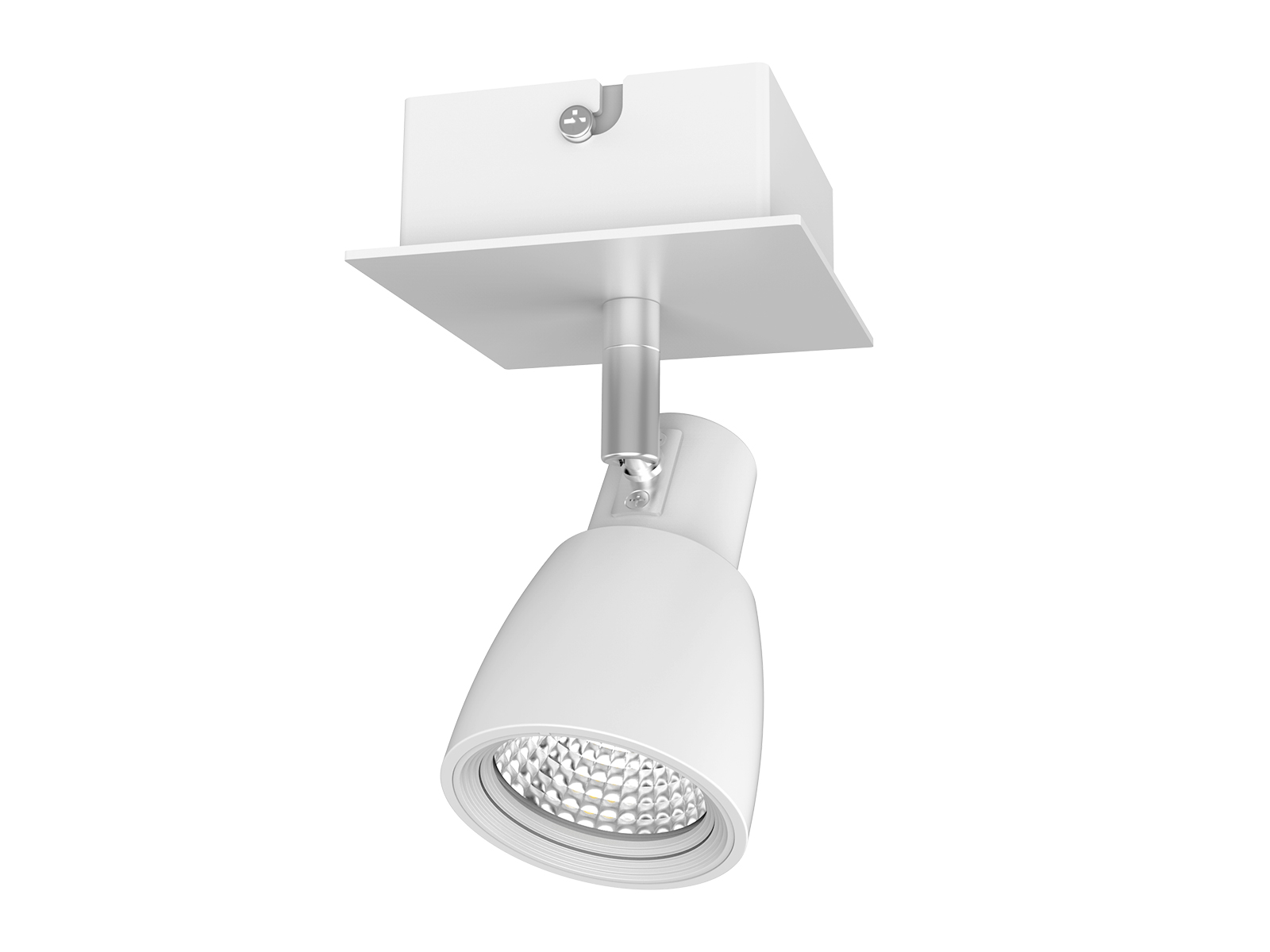

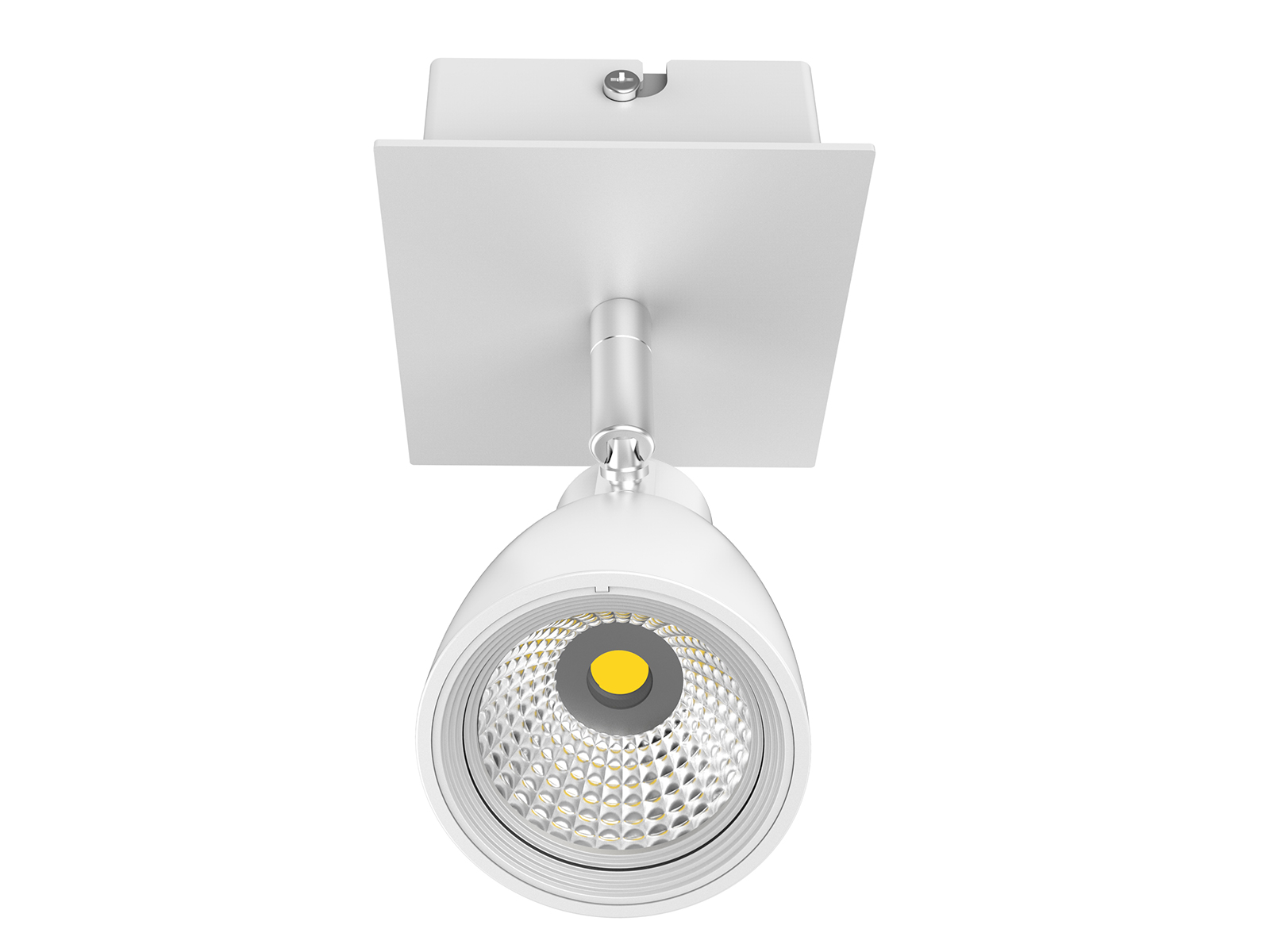

10 Watts Aluminum LED Track Light

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • 24°/36°/45°/60° beam angle
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 24 degree36 degree beam angle45 degree beam angleled beam angle 60 degreeip20 ratingeasy installation90 degree adjustable lighting orientation360 degree in horizontal direction

APPLICATION AREAS

living roomkitchenbedroomretail store lightingclassroom lighting

CERTIFICATIONS

ce certificationRoHs certification

POLAR DIAGRAM COMPARISON

led track spotlight photometric data

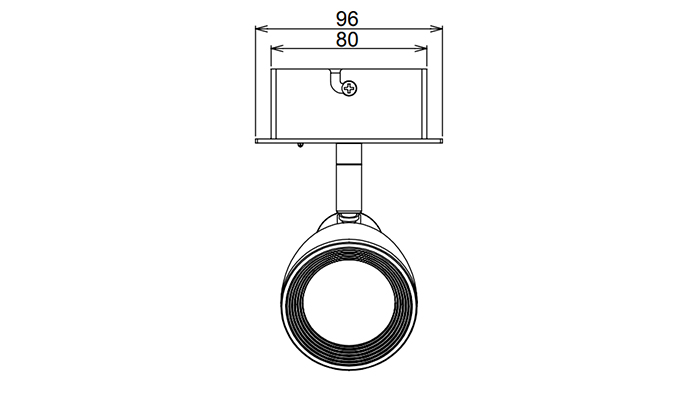

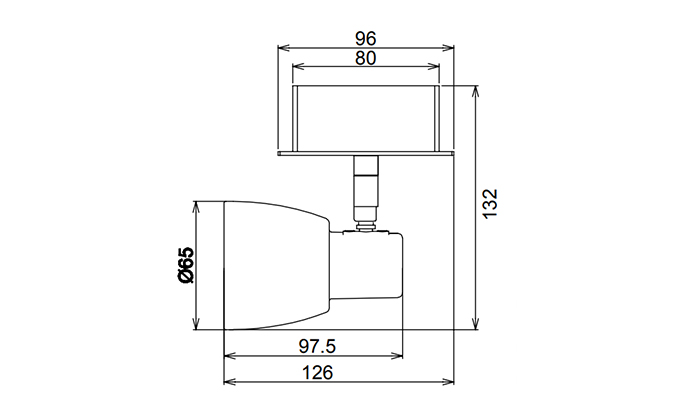

DIMENSION

aluminum track light Technical Specificationaluminum led track lamp sizes

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
10W AC100-240V ≥0.9 750 24°/36°/45°/60° 2700K 40000h ≥80 No 126*96*132mm
10W AC100-240V ≥0.9 760 24°/36°/45°/60° 3000K 40000h ≥80 No 126*96*132mm
10W AC100-240V ≥0.9 800 24°/36°/45°/60° 4000K 40000h ≥80 No 126*96*132mm
10W AC100-240V ≥0.9 780 24°/36°/45°/60° 5000K 40000h ≥80 No 126*96*132mm
10W AC230V ≥0.9 700 24°/36°/45°/60° 2700K 40000h ≥80 Yes 126*96*132mm
10W AC230V ≥0.9 725 24°/36°/45°/60° 3000K 40000h ≥80 Yes 126*96*132mm
10W AC230V ≥0.9 750 24°/36°/45°/60° 4000K 40000h ≥80 Yes 126*96*132mm
10W AC230V ≥0.9 730 24°/36°/45°/60° 5000K 40000h ≥80 Yes 126*96*132mm
