Sharp 12V MR16 Spotlight Bulb

FEATURES

  • Up to 70% energy saving compared to halogen lamp
  • Long lifetime of 40,000 hours
  • 36° 60° beam angle
  • Standard 50mm diameter
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

Power Factor 1ip20 rating36 degree beam angleled beam angle 60 degree easy installation

APPLICATION AREAS

office lightinginterior lighting ideasworkshop lightingled warehouse lightingretail store lighting

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

narrow beam led spotlight mr16 polar chart

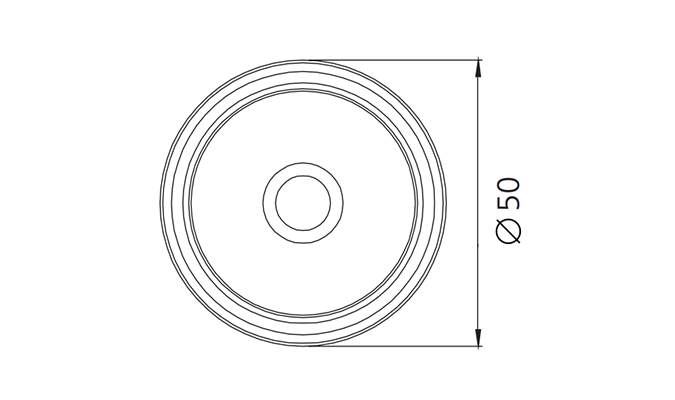

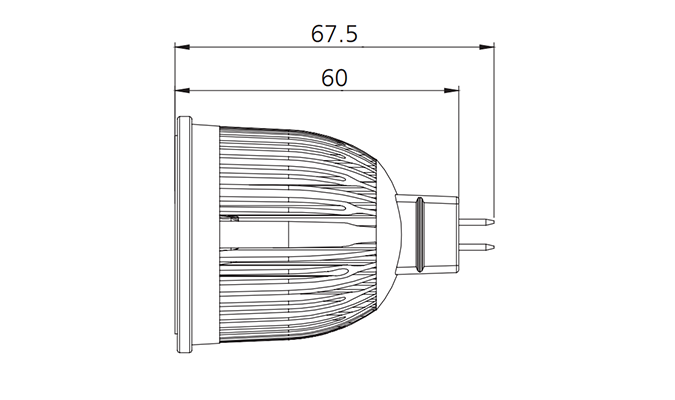

DIMENSION

replacement led spotlight 12v mr166watts Mr16 led lamp

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
6W AC100-240V 1 280 36° 60° 2700K 40000h ≥80 No Ø50*67.5mm
6W AC100-240V 1 300 36° 60° 3000K 40000h ≥80 No Ø50*67.5mm
6W AC100-240V 1 310 36° 60° 4000K 40000h ≥80 No Ø50*67.5mm
6W AC100-240V 1 320 36° 60° 5000K 40000h ≥80 No Ø50*67.5mm
