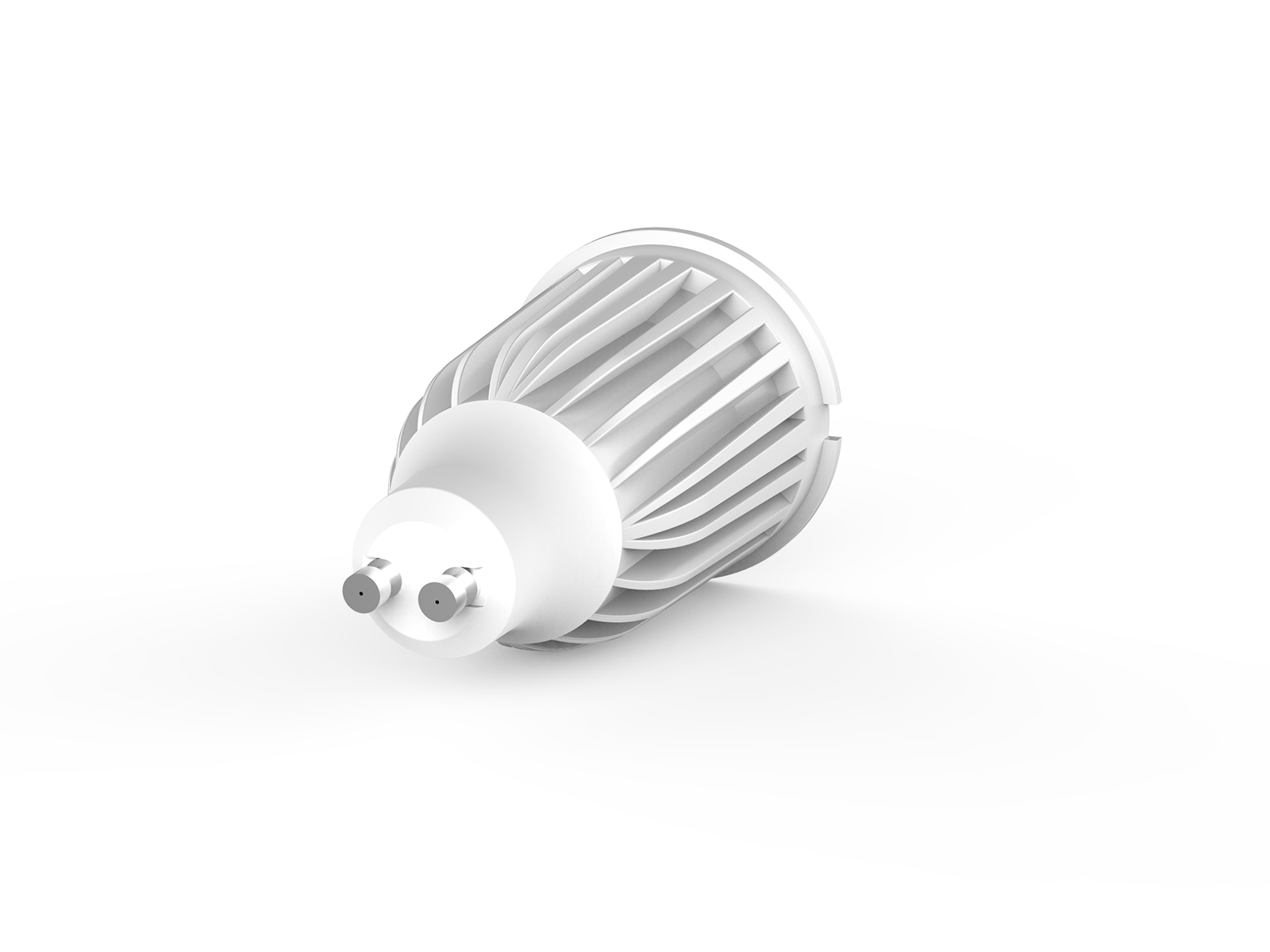

9 Watts SHARP COB Spotlight

FEATURES

  • Up to 70% energy saving compared to halogen lamp
  • Long lifetime of 40,000 hours
  • Dimmable when using triac dimmer
  • 36° 60° beam angle
  • Standard 50mm diameter
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

Power 0.7power factorip20 rating easy installation30 degree beam angle

APPLICATION AREAS

office lightinginterior lighting ideasworkshop lightingled warehouse lightingretail store lighting

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

mondern led spotlights polar curve

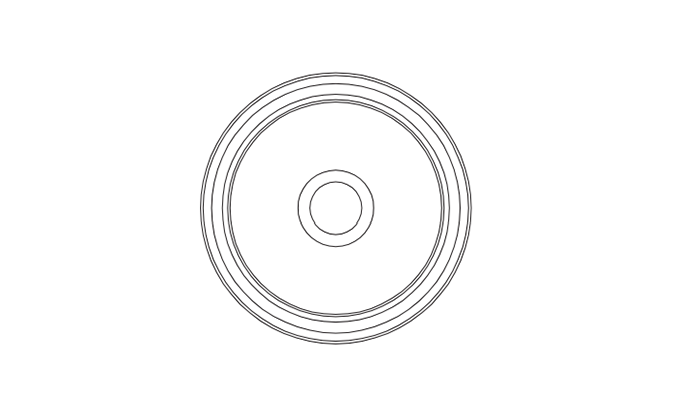

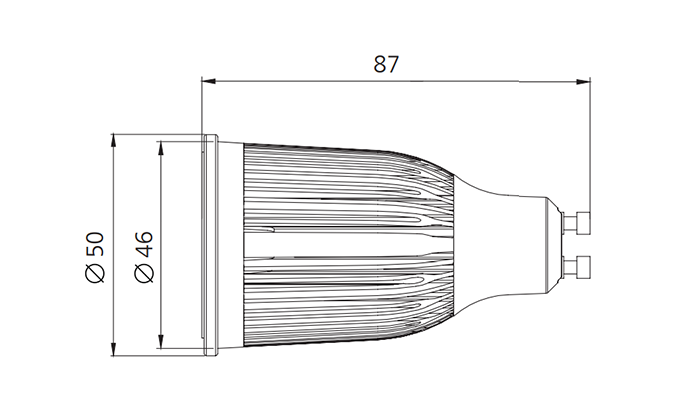

DIMENSION

sizes of LED Spotlights gu10 9Wdisplay led spotlights sizes chart

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
9W AC100-240V ≥0.9 475 36° 60° 2700K 40000h ≥80 No Ø50*87mm
9W AC100-240V ≥0.9 510 36° 60° 3000K 40000h ≥80 No Ø50*87mm
9W AC100-240V ≥0.9 520 36° 60° 4000K 40000h ≥80 No Ø50*87mm
9W AC100-240V ≥0.9 535 36° 60° 5000K 40000h ≥80 No Ø50*87mm
9W AC230V ≥0.7 440 36° 60° 2700K 40000h ≥80 Yes Ø50*87mm
9W AC230V ≥0.7 465 36° 60° 3000K 40000h ≥80 Yes Ø50*87mm
9W AC230V ≥0.7 480 36° 60° 4000K 40000h ≥80 Yes Ø50*87mm
9W AC230V ≥0.7 490 36° 60° 5000K 40000h ≥80 Yes Ø50*87mm
