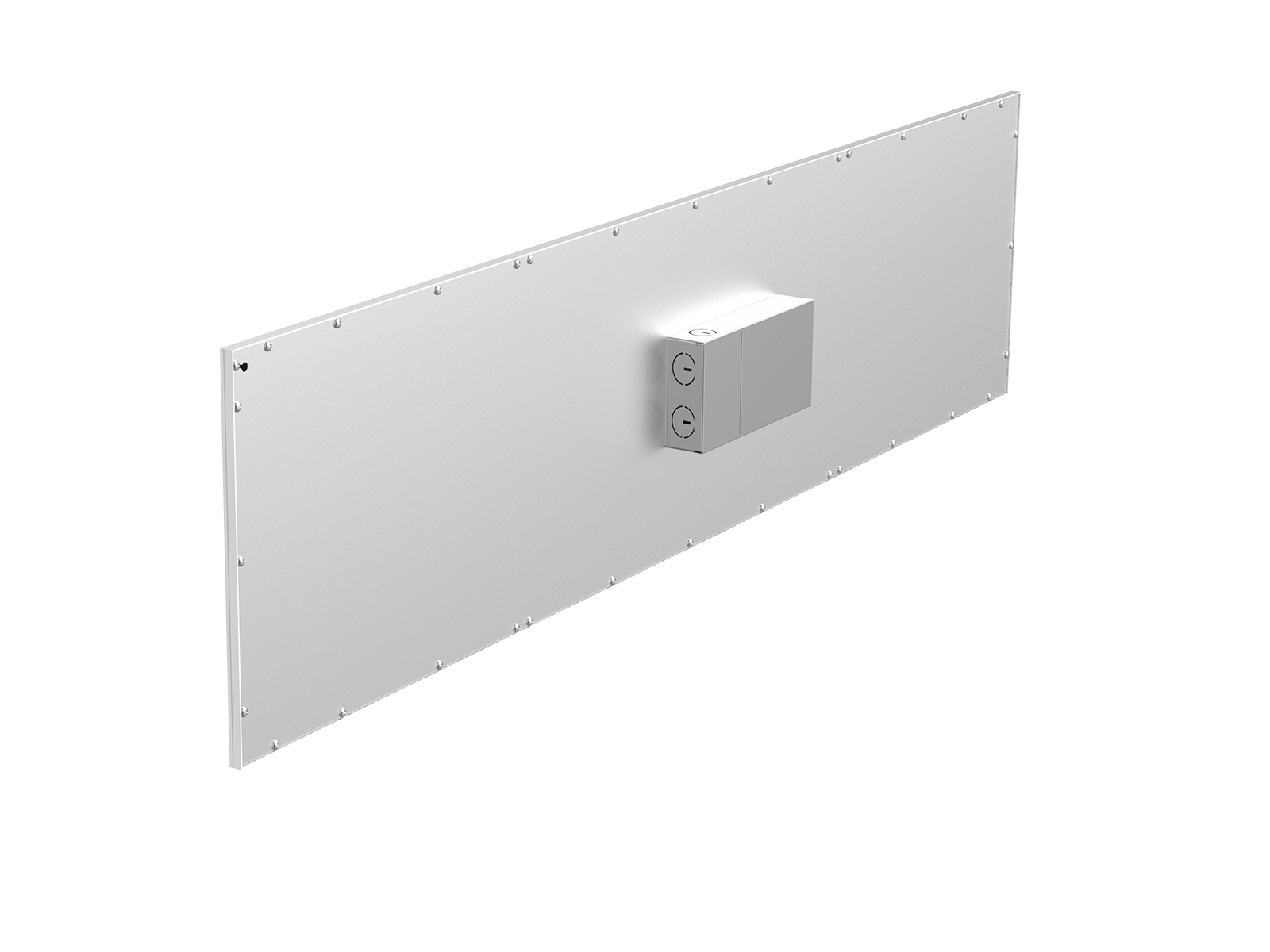

Indoor IP40 1X4 LED Troffer

FEATURES

  • Up to 80% energy saving compared to standard CFL
  • Long lifetime of 50,000 hours
  • 0-10V dimmable
  • 120° wide beam angle
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factoreasy installation120 degree beam angleip40 rating

APPLICATION AREAS

classroom lightinginterior lighting ideaskitchenretail store lightinghotel lighting design

CERTIFICATIONS

ul certificate

POLAR DIAGRAM COMPARISON

Ultra Thin LED Panel Light photometric data

DIMENSION

1x4 Cool White panel lightLED Flat Panel 1x4 40W Dimensions

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
50W AC100-277V ≥0.9 4250 120° 2700K 50000h ≥80 No 1213*303*10mm
50W AC100-277V ≥0.9 4300 120° 3000K 50000h ≥80 No 1213*303*10mm
50W AC100-277V ≥0.9 4350 120° 4000K 50000h ≥80 No 1213*303*10mm
50W AC100-277V ≥0.9 4400 120° 5000K 50000h ≥80 No 1213*303*10mm
50W AC100-277V ≥0.9 4250 120° 2700K 50000h ≥80 Yes 1213*303*10mm
50W AC100-277V ≥0.9 4330 120° 3000K 50000h ≥80 Yes 1213*303*10mm
50W AC100-277V ≥0.9 4380 120° 4000K 50000h ≥80 Yes 1213*303*10mm
50W AC100-277V ≥0.9 4430 120° 5000K 50000h ≥80 Yes 1213*303*10mm
