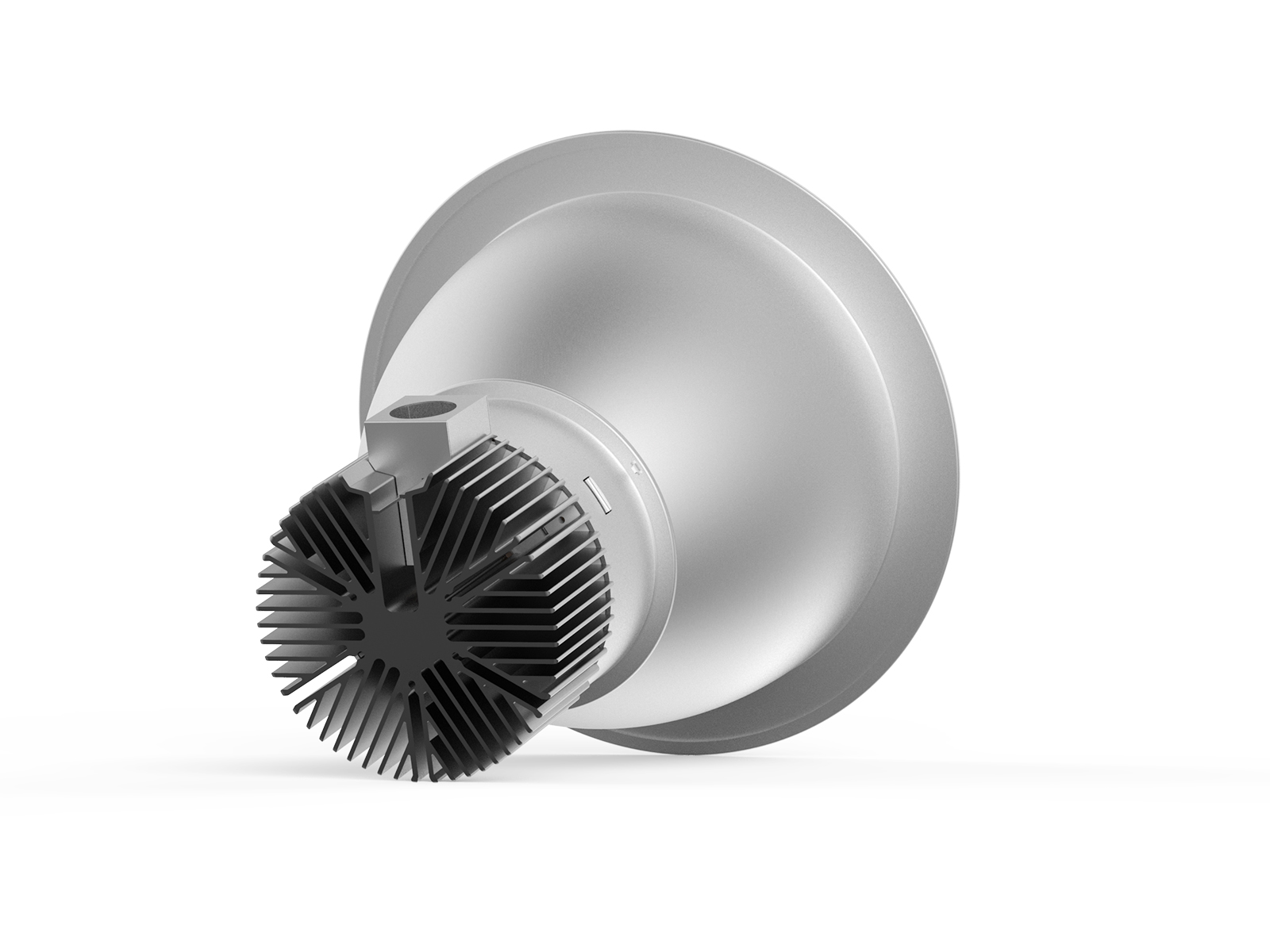

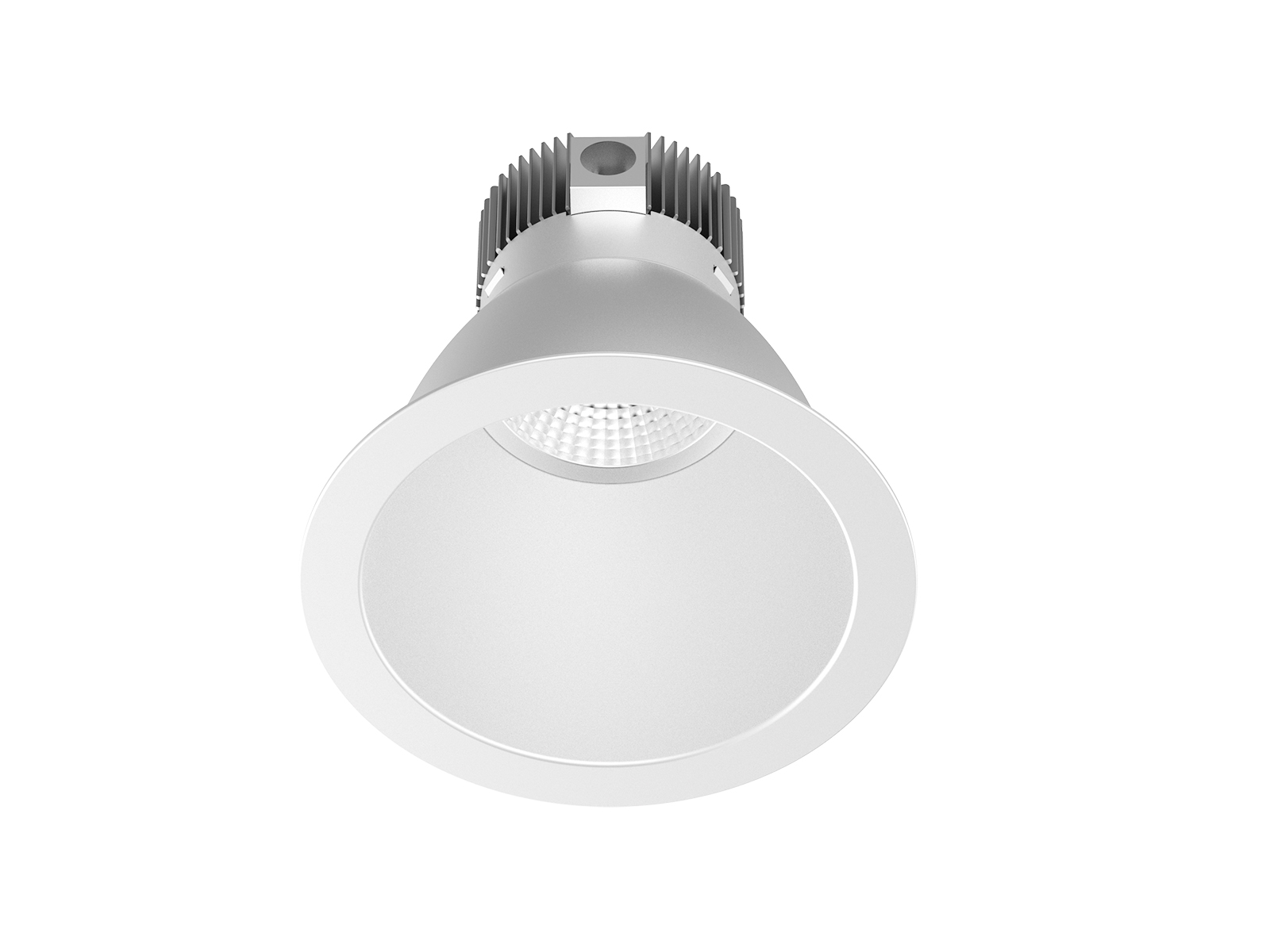

8 Inch LED Recessed Retrofit Downlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 36,000 hours
  • 0~10V dimming driver
  • 40° wide beam angle
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorip20 ratingeasy installation40 degree beam angle

APPLICATION AREAS

classroom lightinginterior lighting ideasbedroomkitchenretail store lighting

CERTIFICATIONS

ul certificateenergy star approvedRoHs certification

POLAR DIAGRAM COMPARISON

35watts led recessed light photometric data

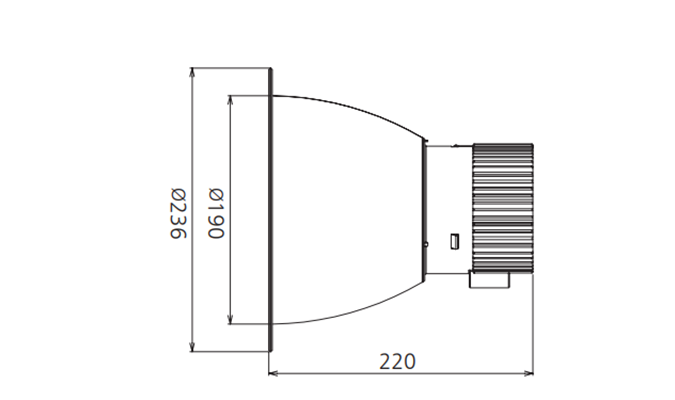

DIMENSION

8 led downlight retrofit kits

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
35W AC100-277V ≥0.9 2550 40° 2700K 36000h ≥80 Yes Ø236*220mm
35W AC100-277V ≥0.9 2650 40° 3000K 36000h ≥80 Yes Ø236*220mm
35W AC100-277V ≥0.9 2800 40° 4000K 36000h ≥80 Yes Ø236*220mm
35W AC100-277V ≥0.9 2800 40° 5000K 36000h ≥80 Yes Ø236*220mm
