8 Inch 25W CREE COB LED Downlight Retrofit Kits

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 36,000 hours
  • 0~10V dimming driver
  • 40° wide beam angle
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorip20 ratingeasy installation40 degree beam angle

APPLICATION AREAS

classroom lightinginterior lighting ideasbedroomkitchenretail store lighting

CERTIFICATIONS

ul certificateenergy star approvedRoHs certification

POLAR DIAGRAM COMPARISON

6 inch led retrofit kit photometric data

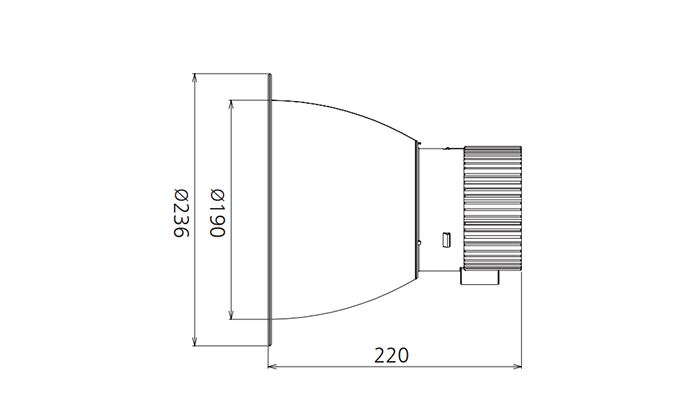

DIMENSION

25w led downlight retrofit kits

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
25W AC100-277V ≥0.9 1620 40° 2700K 36000h ≥80 Yes Ø236*220mm
25W AC100-277V ≥0.9 1660 40° 3000K 36000h ≥80 Yes Ø236*220mm
25W AC100-277V ≥0.9 1870 40° 4000K 36000h ≥80 Yes Ø236*220mm
25W AC100-277V ≥0.9 1900 40° 5000K 36000h ≥80 Yes Ø236*220mm
