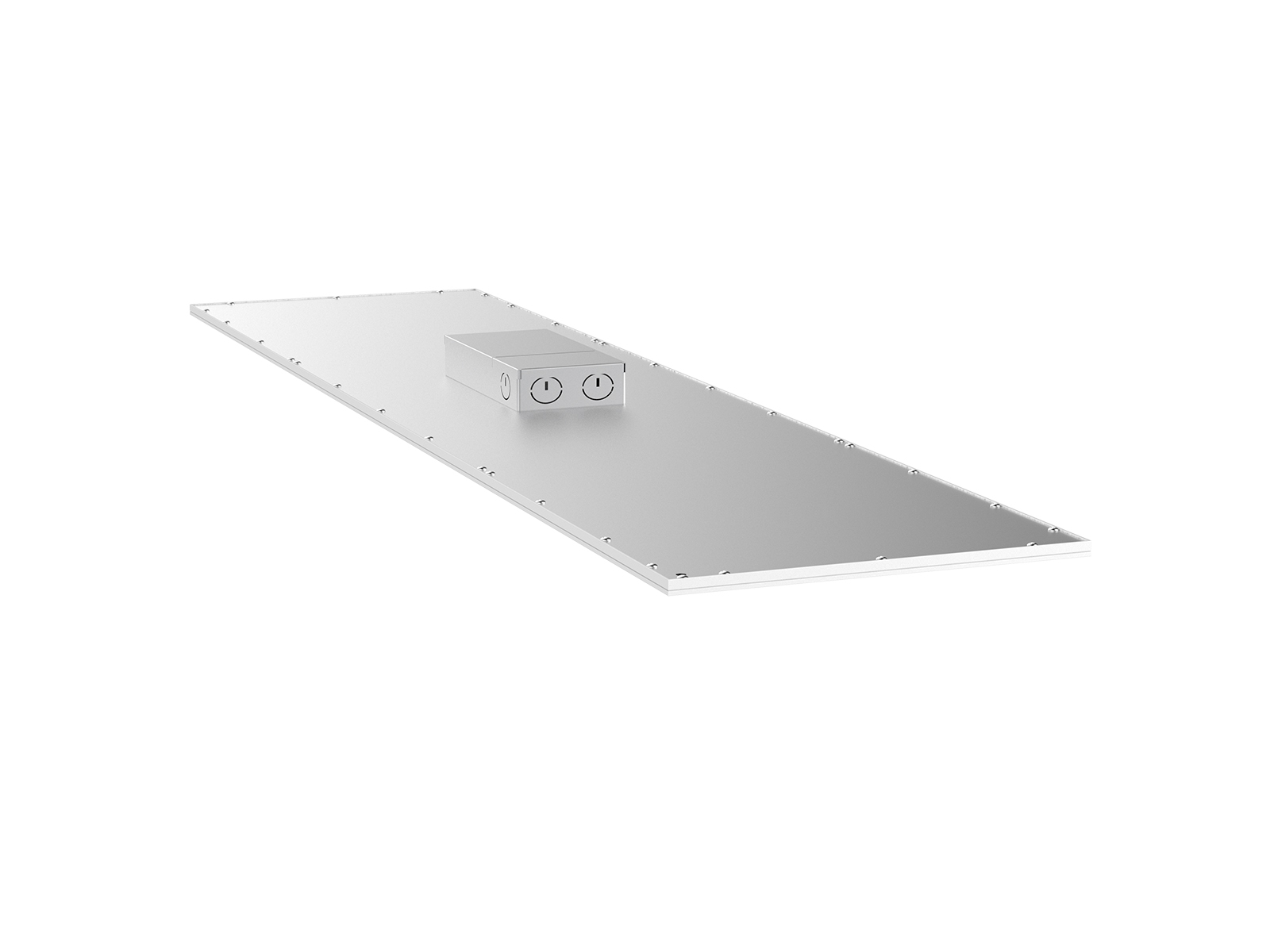

40Watts 1X4 LED Panel Light

FEATURES

  • Up to 80% energy saving compared to standard CFL
  • Long lifetime of 50,000 hours
  • 0-10V dimmable
  • 120° wide beam angle
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factoreasy installation120 degree beam angleDimmableip40 rating

APPLICATION AREAS

classroom lightinginterior lighting ideaskitchenretail store lightinghotel lighting design

CERTIFICATIONS

ul certificate

POLAR DIAGRAM COMPARISON

1x4 led light fixture photometric data

DIMENSION

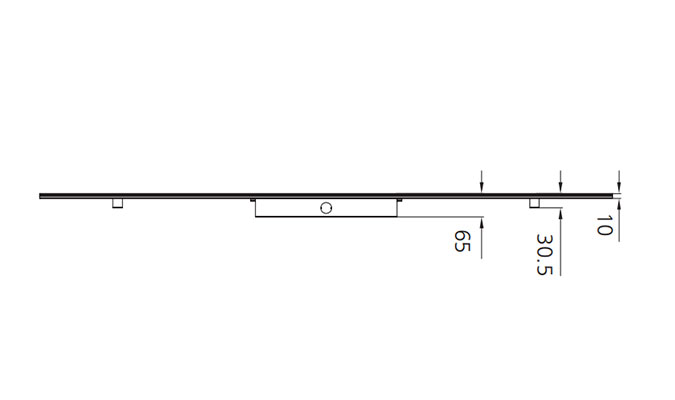

led slim panel light Dimensions1x4 suspended panel light Dimensions

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
40W AC100-277V ≥0.9 4000 120° 2700K 50000h ≥80 No 1213*603*10mm
40W AC100-277V ≥0.9 4050 120° 3000K 50000h ≥80 No 1213*603*10mm
40W AC100-277V ≥0.9 4090 120° 4000K 50000h ≥80 No 1213*603*10mm
40W AC100-277V ≥0.9 4110 120° 5000K 50000h ≥80 No 1213*603*10mm
40W AC100-277V ≥0.9 4150 120° 2700K 50000h ≥80 Yes 1213*303*10mm
40W AC100-277V ≥0.9 4210 120° 3000K 50000h ≥80 Yes 1213*303*10mm
40W AC100-277V ≥0.9 4240 120° 4000K 50000h ≥80 Yes 1213*303*10mm
40W AC100-277V ≥0.9 4270 120° 5000K 50000h ≥80 Yes 1213*303*10mm
