4 Inch 20W 277V Recessed Lighting

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 36,000 hours
  • 0~10V dimming driver
  • 40° wide beam angle
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

40 degree beam anglepower factorip20 ratingeasy installation

APPLICATION AREAS

classroom lightinginterior lighting ideasbedroomkitchenretail store lighting

CERTIFICATIONS

ul certificateenergy star approvedRoHs certification

POLAR DIAGRAM COMPARISON

20Watts led recessed downlight polar chart

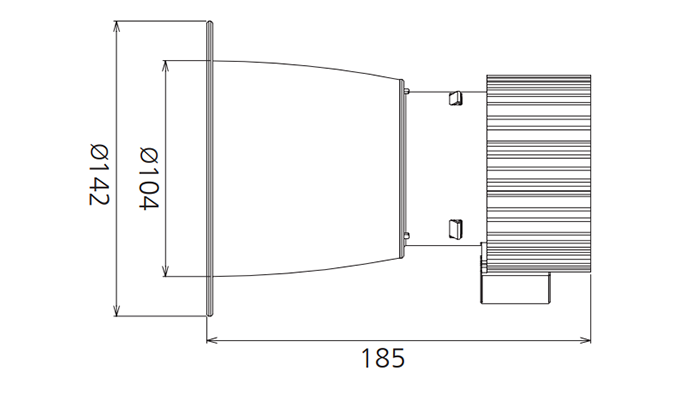

DIMENSION

4 inch led retrofit downlight Dimensions

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
20W AC100-277V ≥0.9 1100 40° 2700K 40000h ≥80 Yes Ø142*185mm
20W AC100-277V ≥0.9 1140 40° 3000K 40000h ≥80 Yes Ø142*185mm
20W AC100-277V ≥0.9 1180 40° 4000K 40000h ≥80 Yes Ø142*185mm
20W AC100-277V ≥0.9 1200 40° 5000K 40000h ≥80 Yes Ø142*185mm
