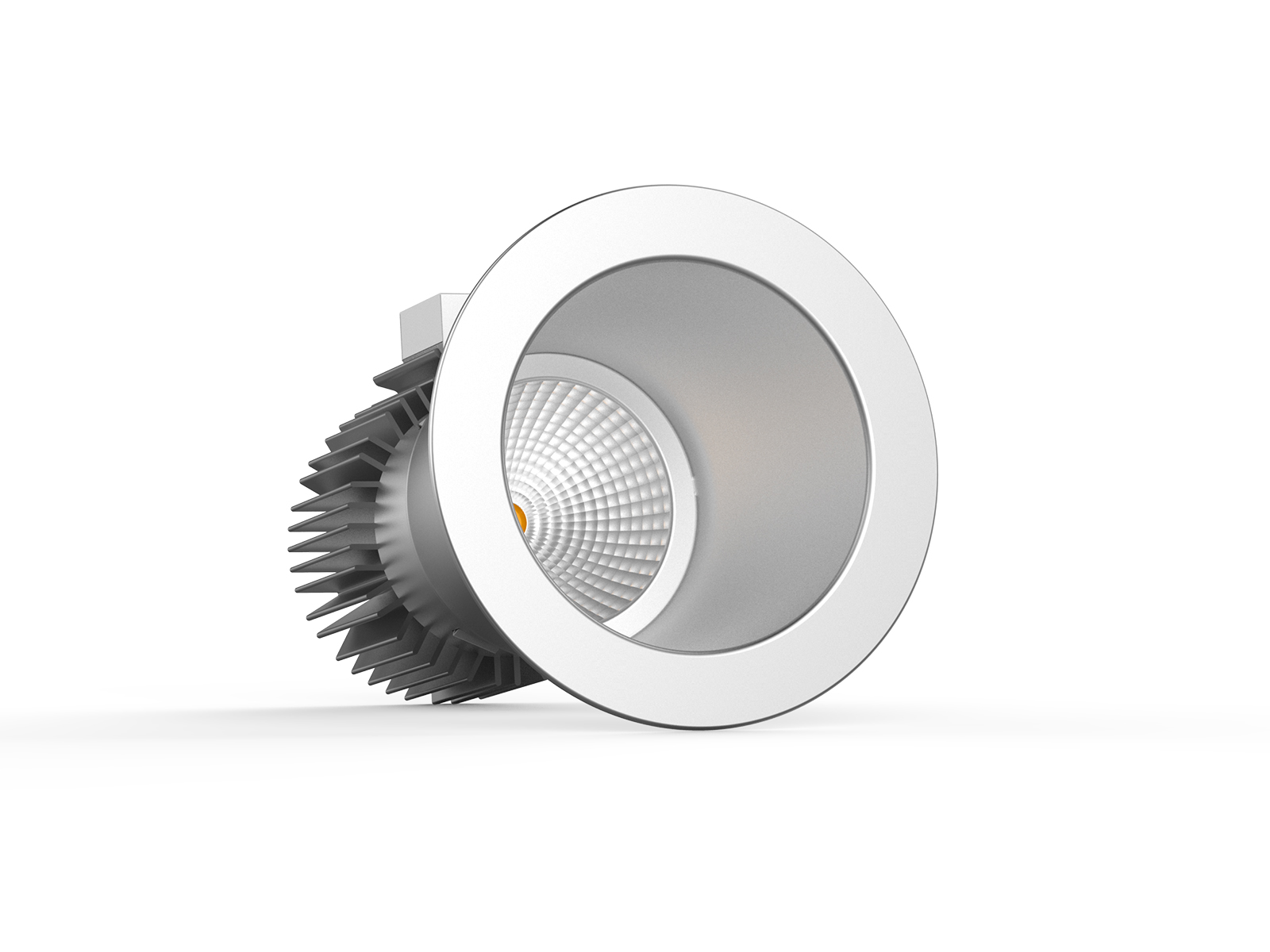

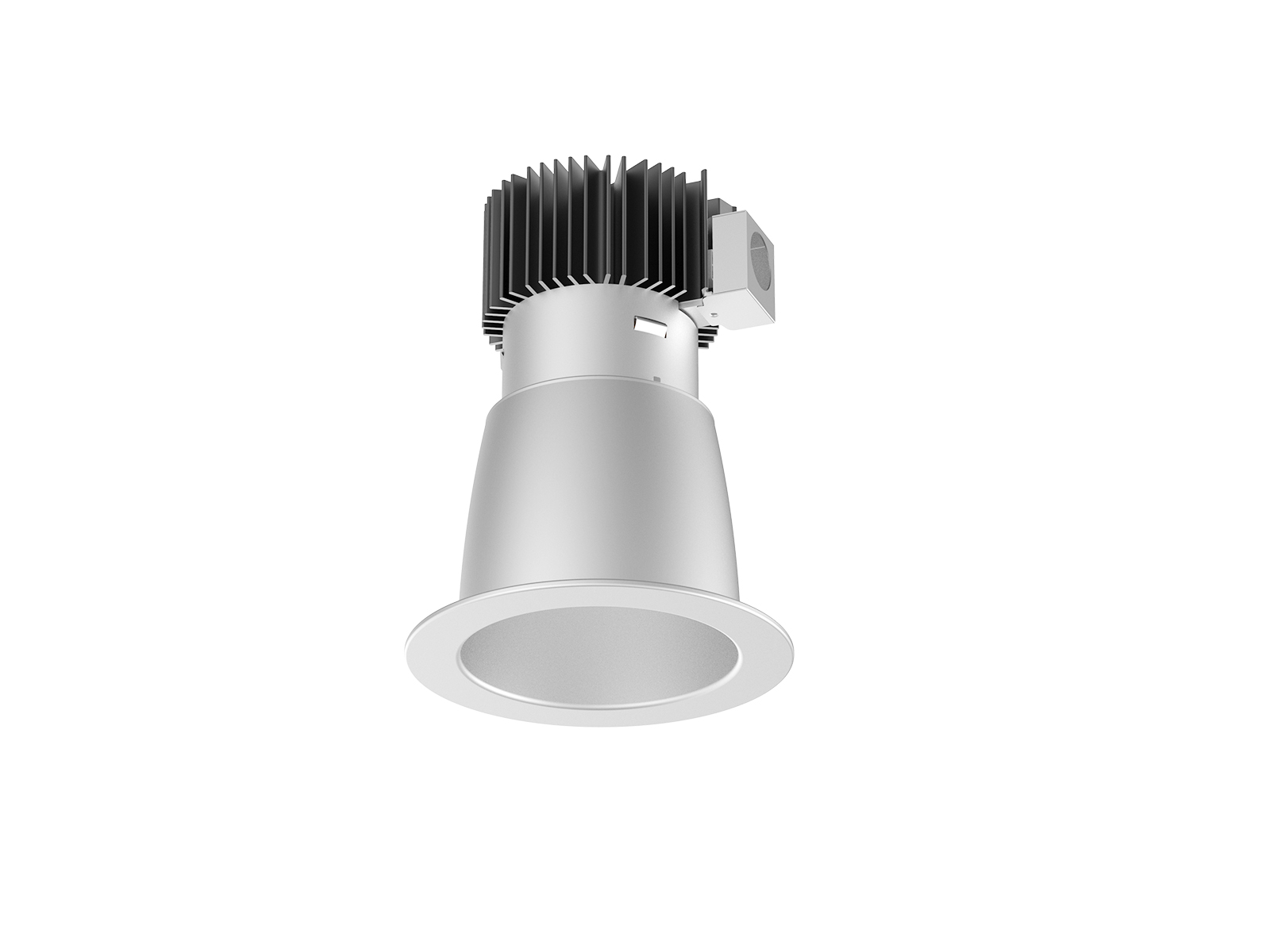

4 Inch 15W LED Down Light Retrofit

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 36,000 hours
  • 0~10V dimming driver
  • 40° wide beam angle
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorip20 ratingeasy installation40 degree beam angle

APPLICATION AREAS

classroom lightinginterior lighting ideasbedroomkitchenretail store lighting

CERTIFICATIONS

ul certificateenergy star approvedRoHs certification

POLAR DIAGRAM COMPARISON

40° wide beam angle downlight photometric diagram

DIMENSION

4 inch led retrofit downlight Dimensions

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
15W AC100-277V ≥0.9 920 40° 2700K 40000h ≥80 Yes Ø142*185mm
15W AC100-277V ≥0.9 960 40° 3000K 40000h ≥80 Yes Ø142*185mm
15W AC100-277V ≥0.9 1000 40° 4000K 40000h ≥80 Yes Ø142*185mm
15W AC100-277V ≥0.9 1020 40° 5000K 40000h ≥80 Yes Ø142*185mm
