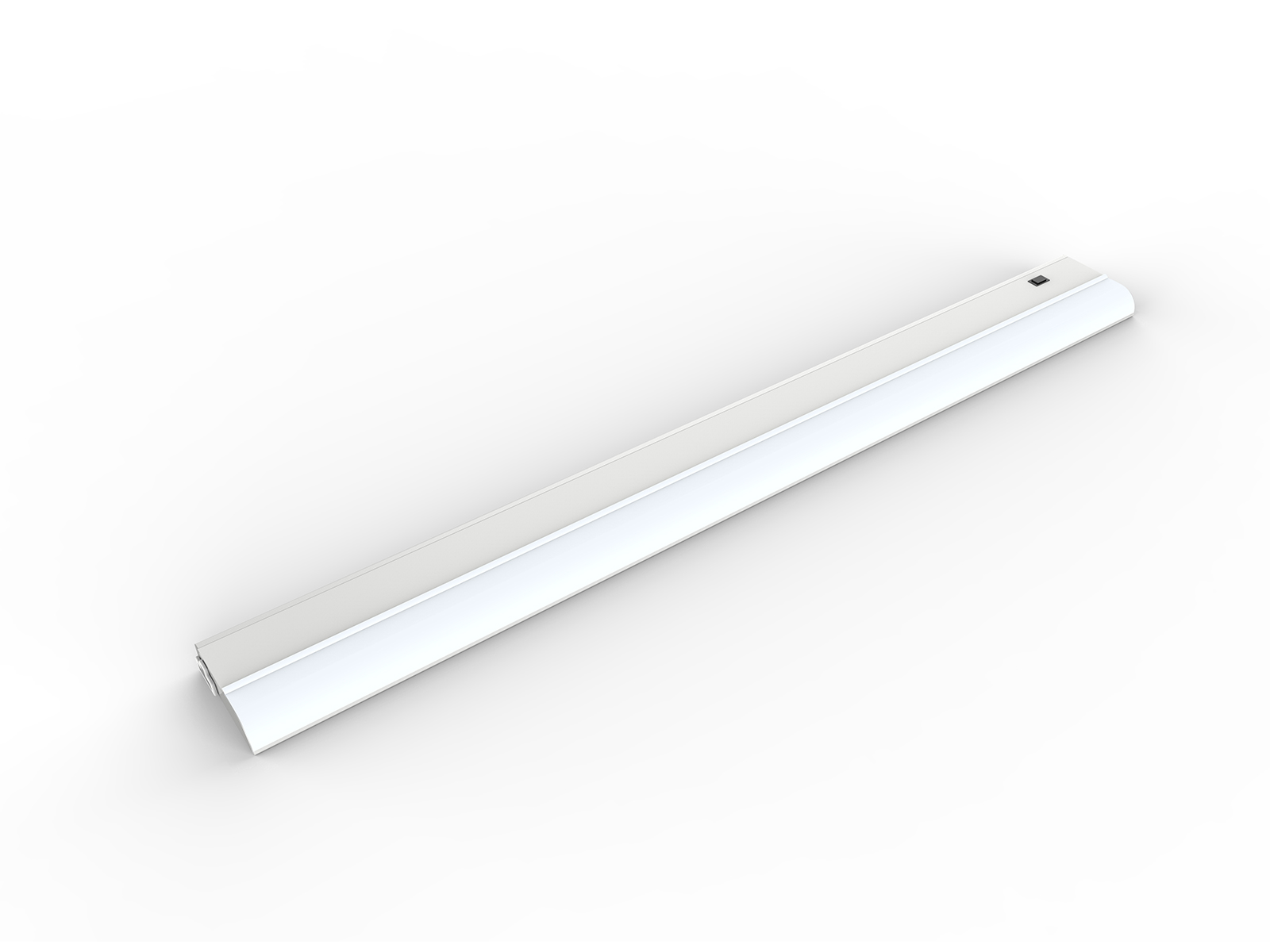

22W White LED Under Cabinet Lighting

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 54,000 hours
  • Dimmable when using triac dimmer
  • 100° wide beam angle
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factoreasy installationDimmable100 degree beam angle

APPLICATION AREAS

classroom lightinginterior lighting ideaskitchenretail store lighting

CERTIFICATIONS

energy star approvedRoHs certificationetc approvedfc

POLAR DIAGRAM COMPARISON

22W under counter light polar curve

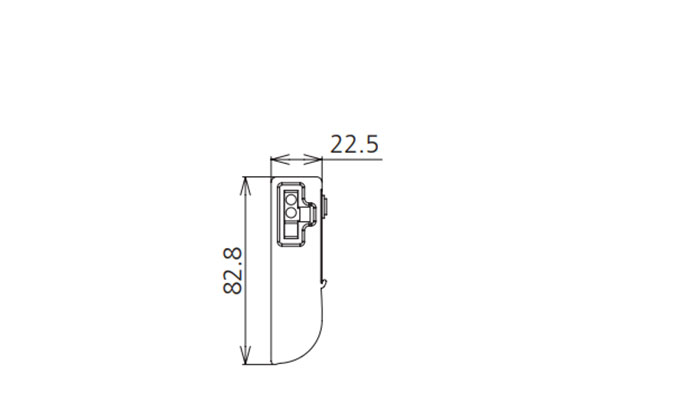

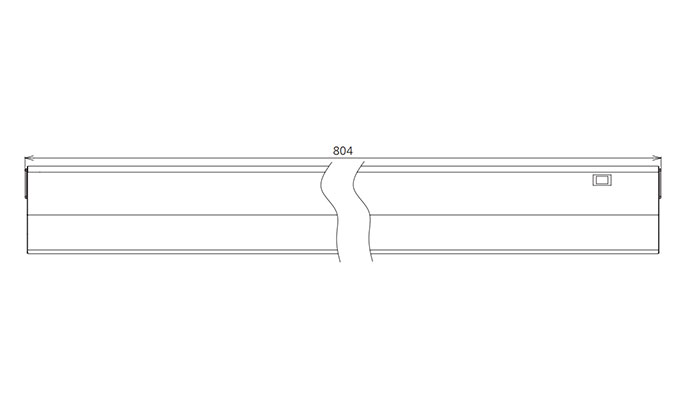

DIMENSION

32 inch kitchen under counter light36 inch LED White Linkable Under Cabinet Light

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
22W AC120V ≥0.9 1540 100° 2700K 54000h ≥90 Yes L804*W82.8*H22.5mm
22W AC120V ≥0.9 1760 100° 3000K 54000h ≥90 Yes L804*W82.8*H22.5mm
22W AC120V ≥0.9 1870 100° 4000K 54000h ≥90 Yes L804*W82.8*H22.5mm
22W AC120V ≥0.9 1980 100° 5000K 54000h ≥90 Yes L804*W82.8*H22.5mm
