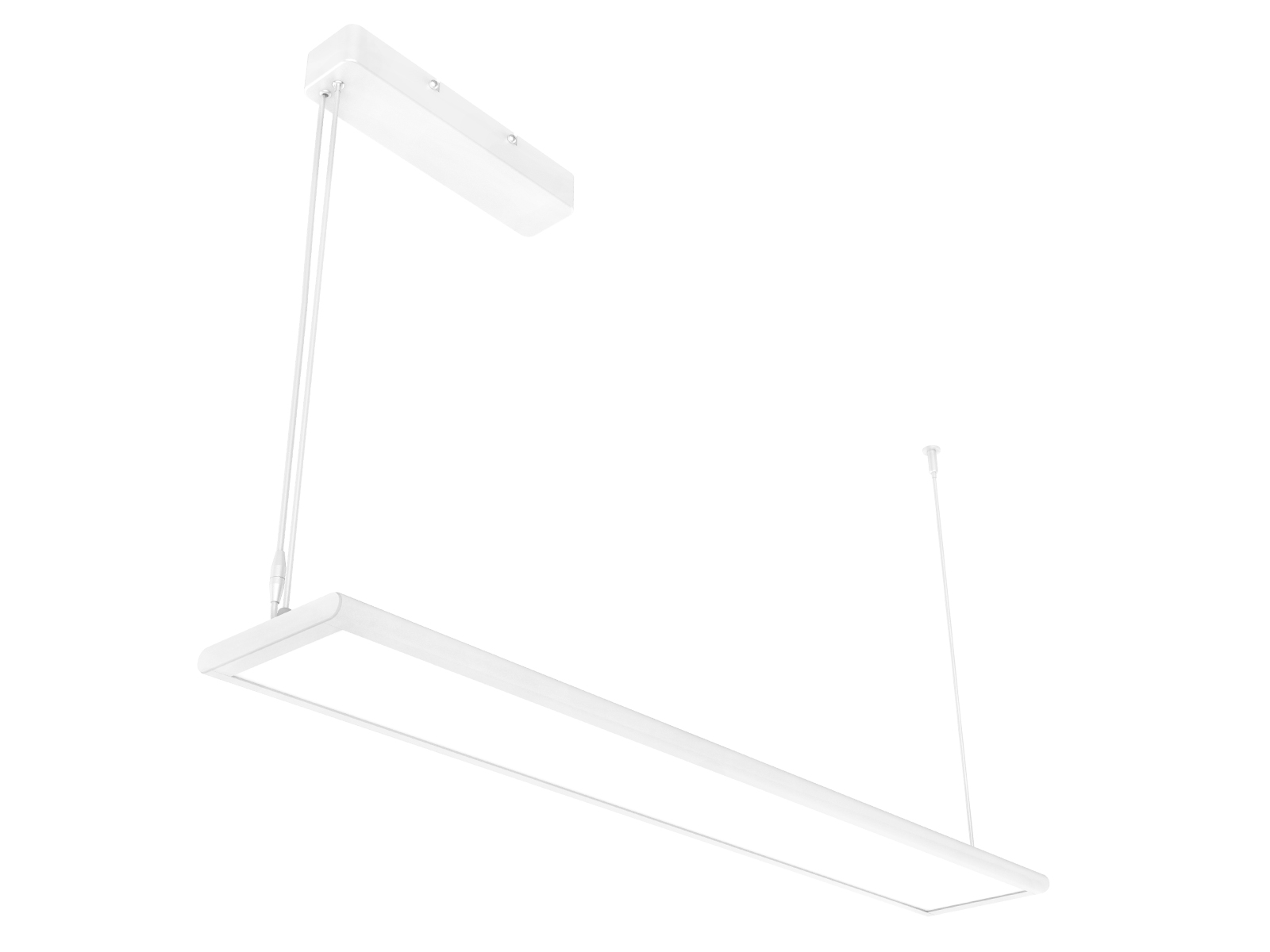

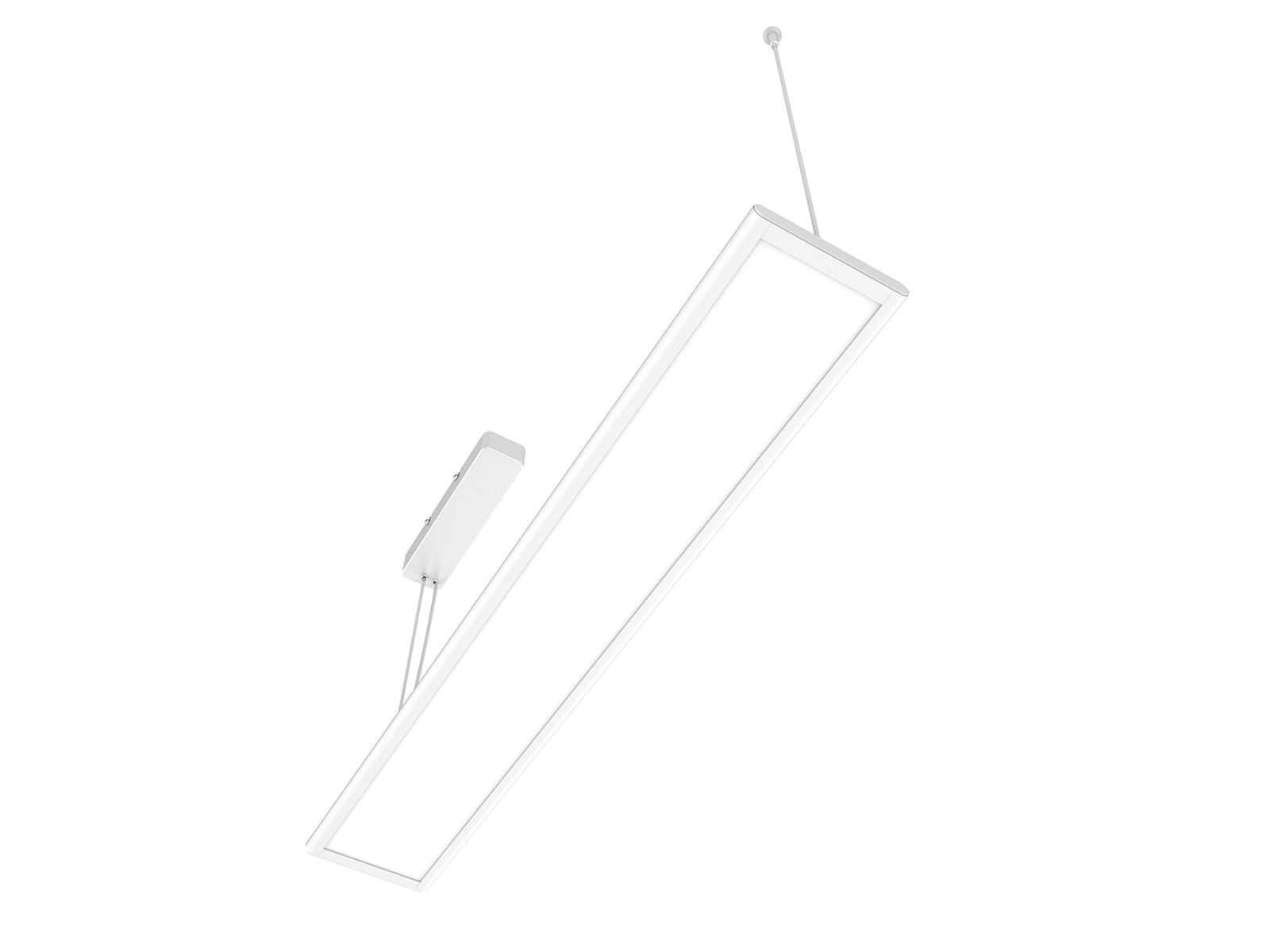

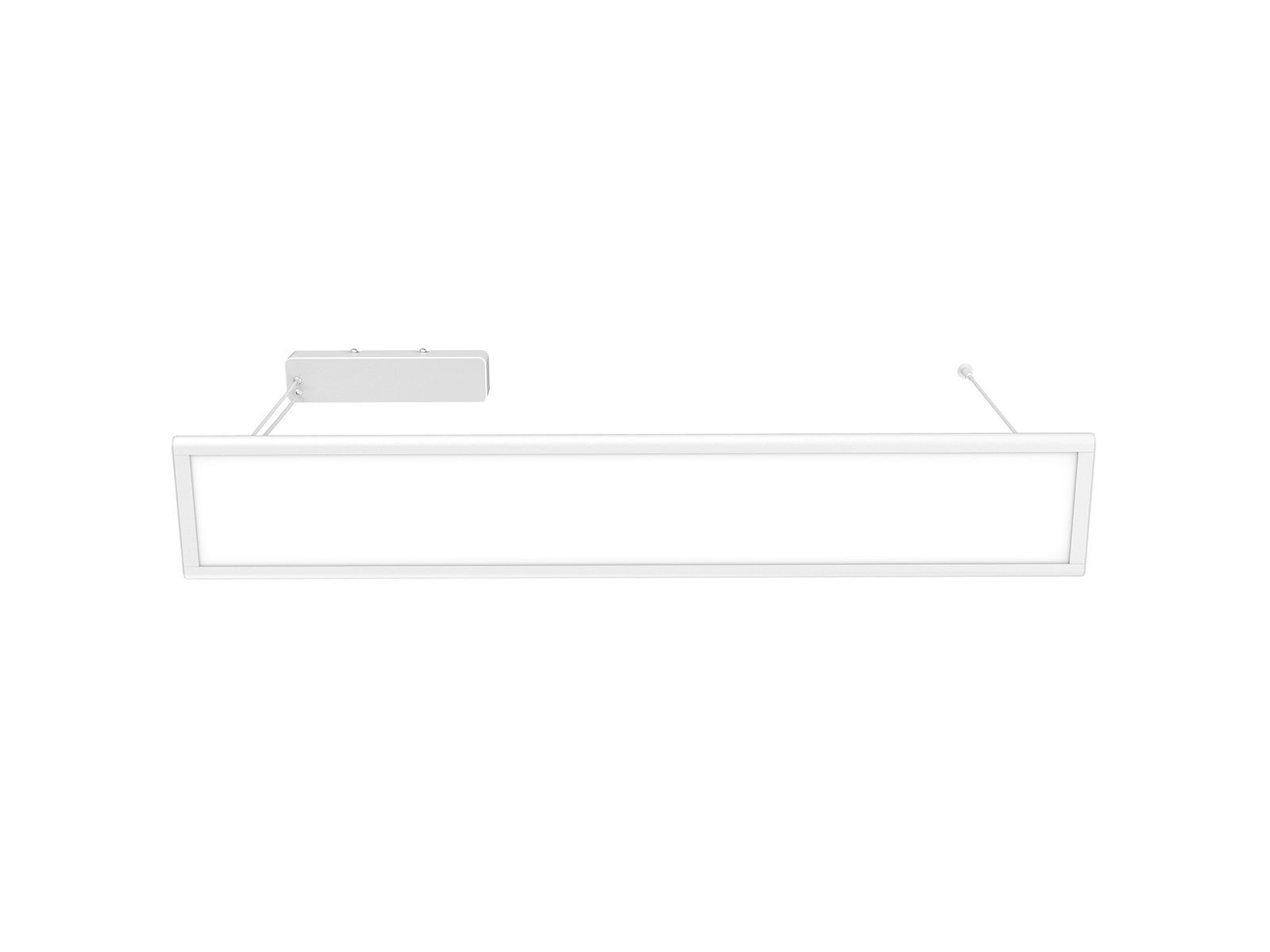

900MM Double Sided LED Batten

FEATURES

  • Up to 80% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Triac dim
  • 270° wide beam angle
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor 270 degree beam angleip40 ratingeasy installation

APPLICATION AREAS

restaurant lightingoffice lightingclassroom lightinginterior lighting ideas

CERTIFICATIONS

ce certificationRoHs certification

POLAR DIAGRAM COMPARISON

30w Batten Luminaires photometric diagram

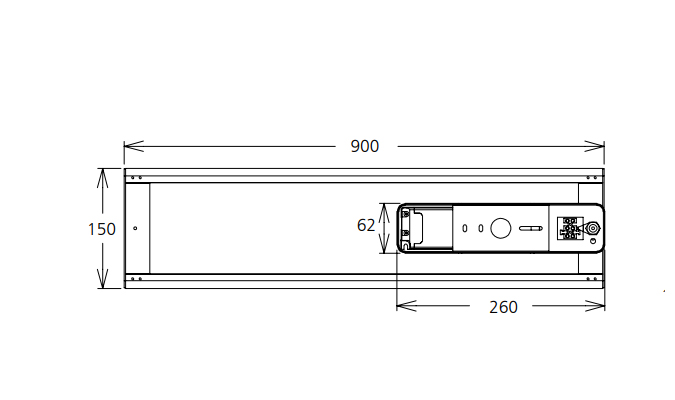

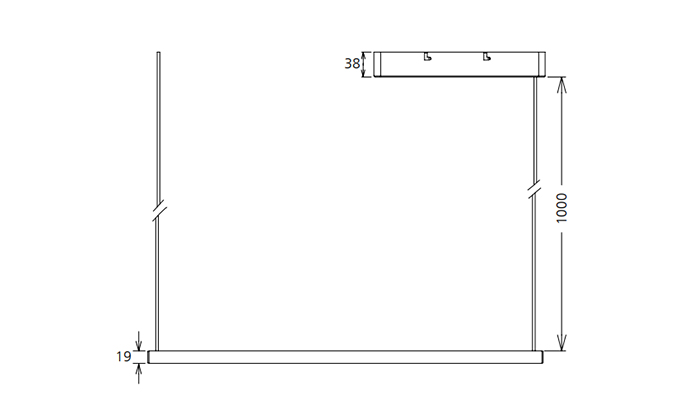

DIMENSION

900mm 3ft led batten lamp900mnm pendant led batten

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
30W AC230V ≥0.9 2010 270° 3000K 40000h ≥80 No L900*W150*H19mm
30W AC230V ≥0.9 2400 270° 4000K 40000h ≥80 No L900*W150*H19mm
30W AC230V ≥0.9 2190 270° 5000K 40000h ≥80 No L900*W150*H19mm
30W AC230V ≥0.9 2280 270° 5700K 40000h ≥80 No L900*W150*H19mm
30W AC230V ≥0.9 1980 270° 3000K 40000h ≥80 Yes L900*W150*H19mm
30W AC230V ≥0.9 2310 270° 4000K 40000h ≥80 Yes L900*W150*H19mm
30W AC230V ≥0.9 2130 270° 5000K 40000h ≥80 Yes L900*W150*H19mm
30W AC230V ≥0.9 2220 270° 5700K 40000h ≥80 Yes L900*W150*H19mm
