600MM 20W LED Batten Light

FEATURES

  • Up to 80% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Triac dim
  • 270° wide beam angle
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor 270 degree beam angleip40 ratingeasy installation

APPLICATION AREAS

restaurant lightingoffice lightingclassroom lightinginterior lighting ideas

CERTIFICATIONS

ce certificationRoHs certification

POLAR DIAGRAM COMPARISON

Hanging Pendant Linear Fixture polar chart

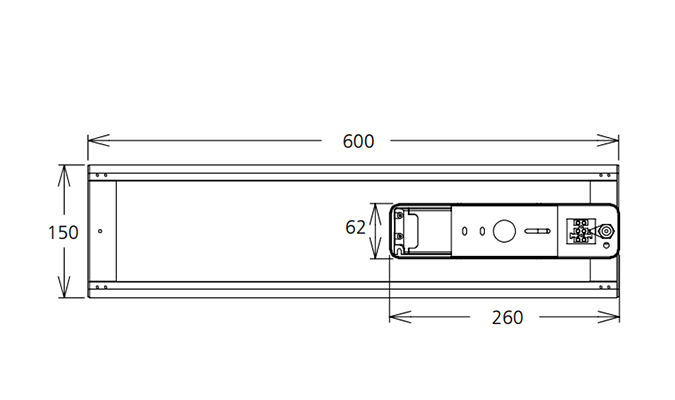

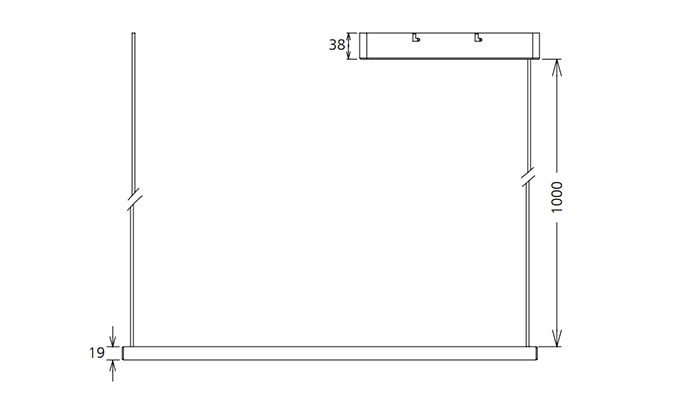

DIMENSION

sizes of led batten for interiorhanging 600mm led batten

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
20W AC230V ≥0.9 1380 270° 3000K 40000h ≥80 No L600*W150*H19mm
20W AC230V ≥0.9 1540 270° 4000K 40000h ≥80 No L600*W150*H19mm
20W AC230V ≥0.9 1440 270° 5000K 40000h ≥80 No L600*W150*H19mm
20W AC230V ≥0.9 1480 270° 5700K 40000h ≥80 No L600*W150*H19mm
20W AC230V ≥0.9 1340 270° 3000K 40000h ≥80 Yes L600*W150*H19mm
20W AC230V ≥0.9 1480 270° 4000K 40000h ≥80 Yes L600*W150*H19mm
20W AC230V ≥0.9 1380 270° 5000K 40000h ≥80 Yes L600*W150*H19mm
20W AC230V ≥0.9 1440 270° 5700K 40000h ≥80 Yes L600*W150*H19mm
