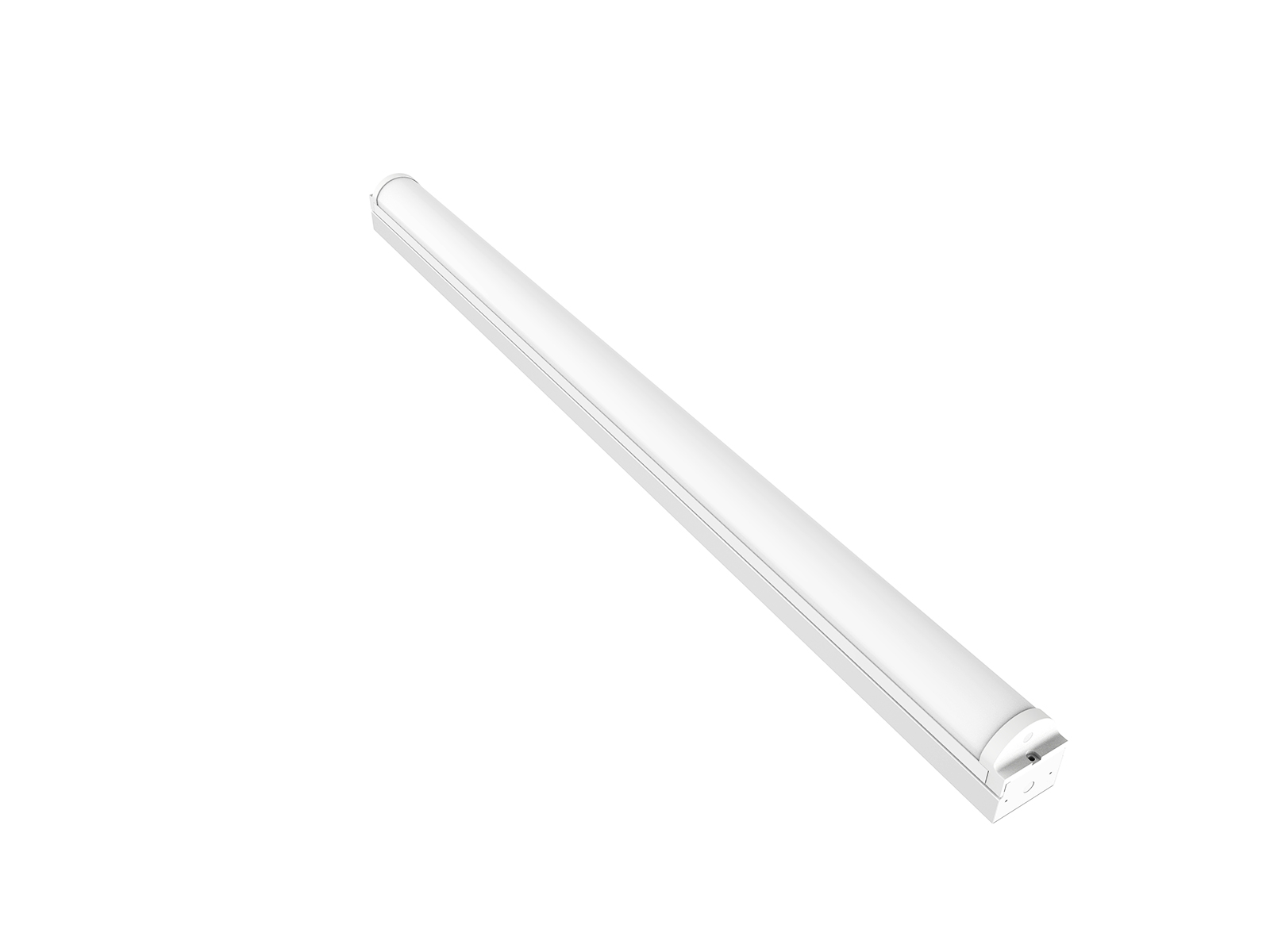

25W 1200MM 4FT Linear LED Light Fixture

FEATURES

  • Aluminum components generate a rust-free product for less maintenance
  • PC Diffuser
  • Up to 70% energy saving compared to standard CFL
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor 120 degree beam angleip54 waterproofeasy installation

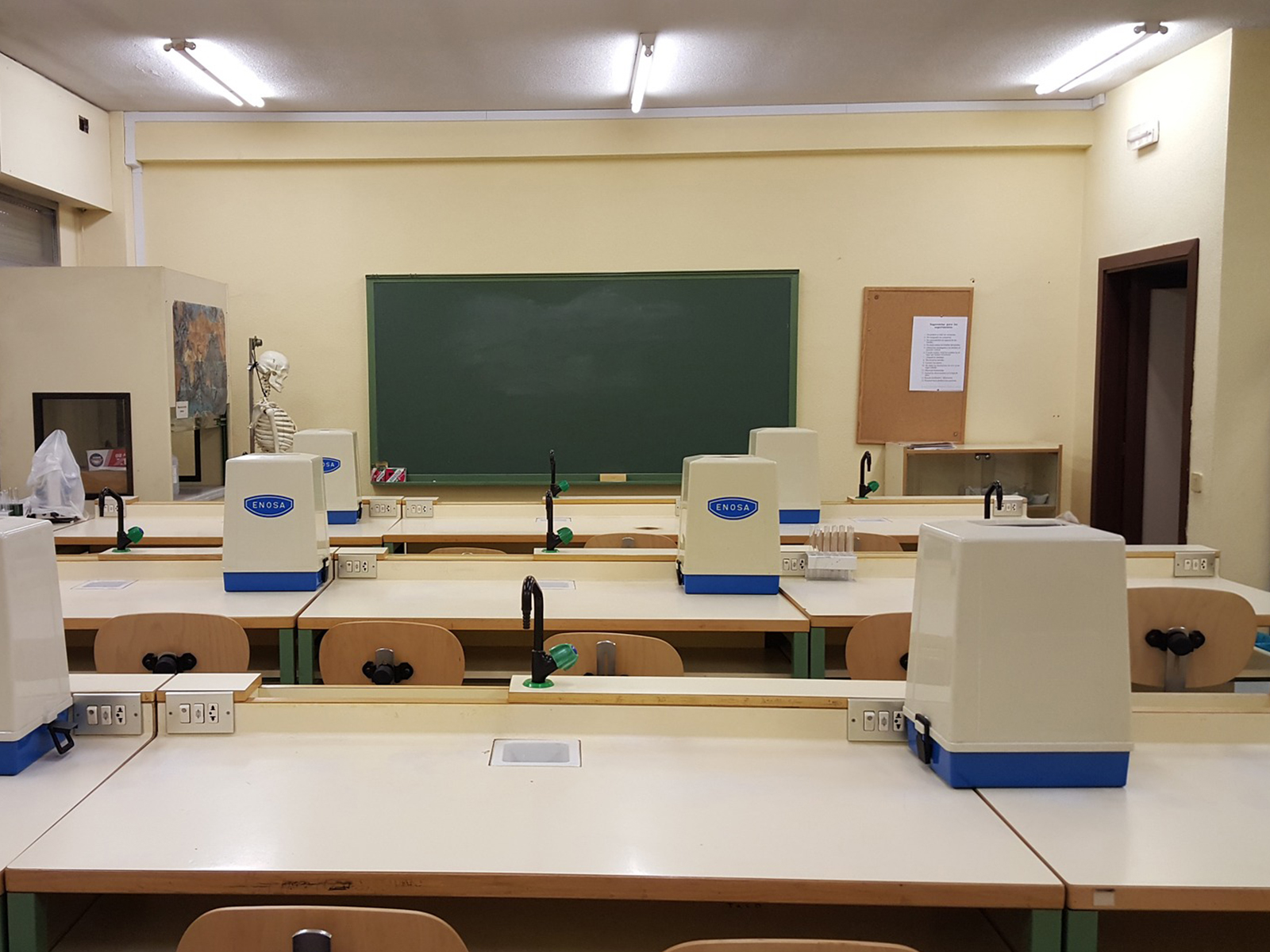

APPLICATION AREAS

office lightingclassroom lightinginterior lighting ideasretail store lightingworkshop lightingled warehouse lighting

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

indoor LED Linear photometric data

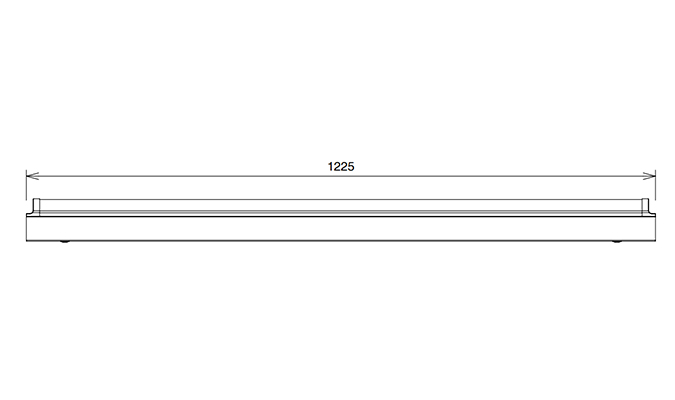

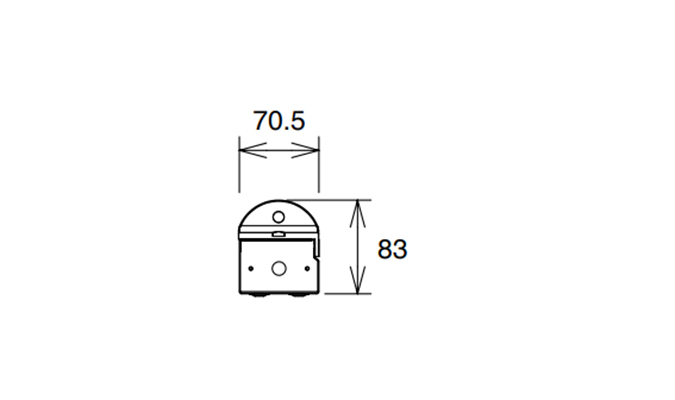

DIMENSION

Office 1200mm Ip54 LED Batten Light1200mm surface led batten light fixture



TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
25W AC100-277V ≥0.9 2500 120° 3000K 40000h ≥80 No L1225*W70.5*H83mm
25W AC100-277V ≥0.9 2620 120° 4000K 40000h ≥80 No L1225*W70.5*H83mm
25W AC100-277V ≥0.9 2580 120° 5000K 40000h ≥80 No L1225*W70.5*H83mm
25W AC100-277V ≥0.9 2550 120° 5700K 40000h ≥80 No L1225*W70.5*H83mm
