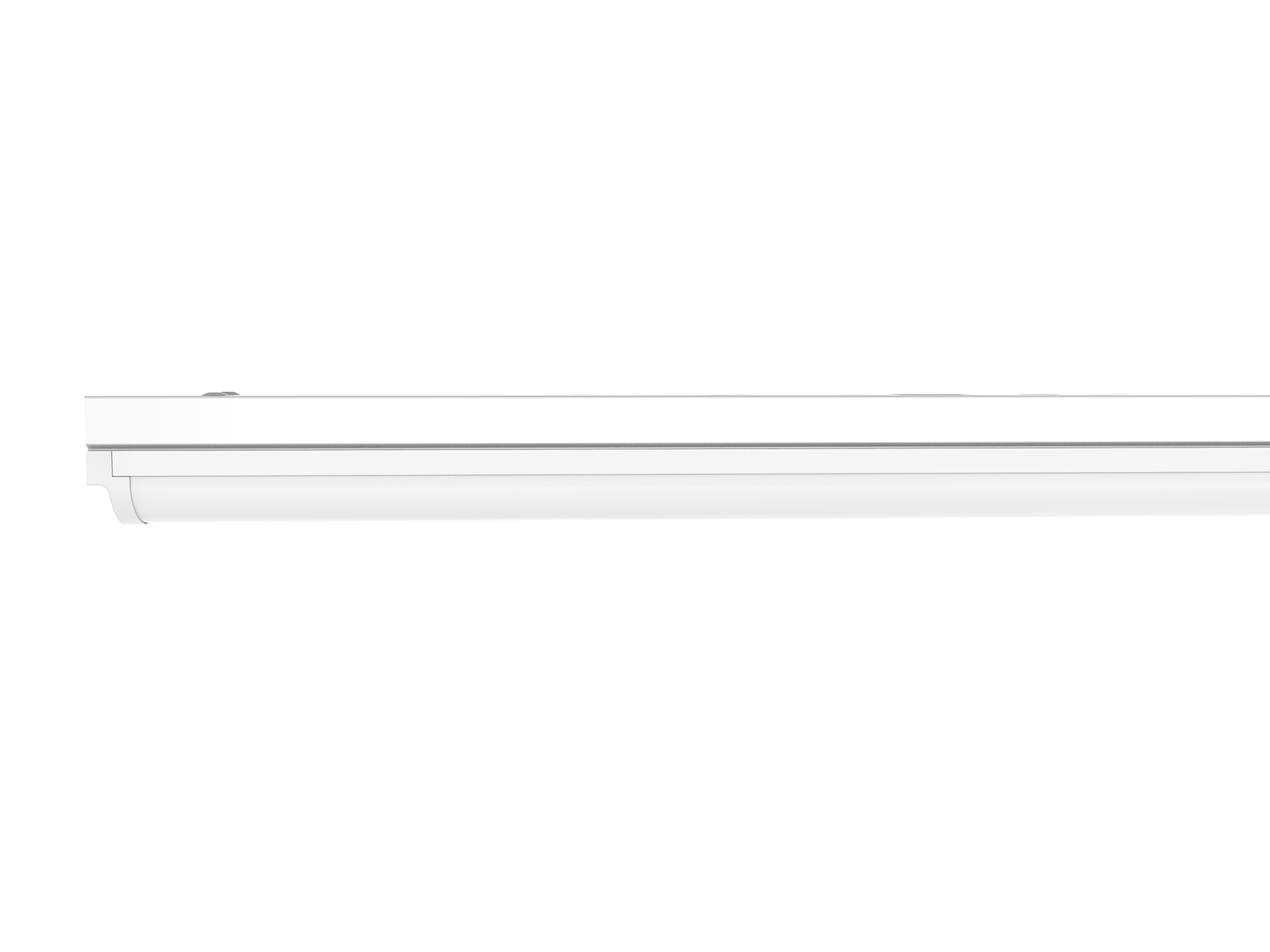

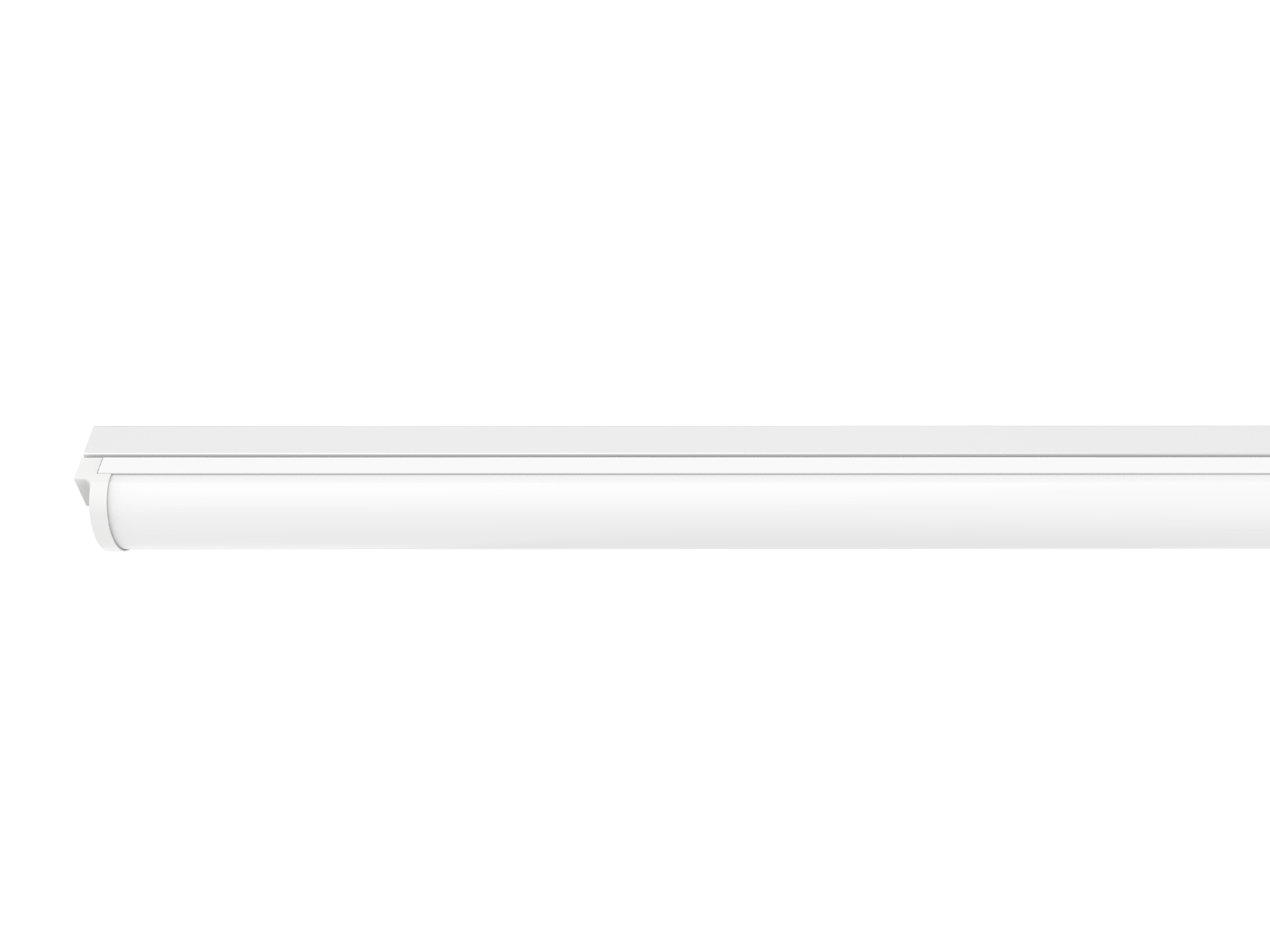

22W 1200MM Microwave Sensor & Emergency LED Batten

FEATURES

  • Aluminum components generate a rust-free product for less maintenance
  • PC Diffuser
  • Up to 70% energy saving compared to standard CFL
  • Environment friendly, without Mercury or any other hazardous substances



CHARACTERISTIC

power factor 120 degree beam angleeasy installation

APPLICATION AREAS

office lightingclassroom lightinginterior lighting ideasretail store lightingworkshop lightingled warehouse lighting

CERTIFICATIONS

RoHs certification

POLAR DIAGRAM COMPARISON

smd led batten linear photometric diagram

DIMENSION

Office 1200mm Ip54 LED Batten Light1200mm surface led batten light fixture

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
22W AC100-277V ≥0.9 2460 120° 3000K 40000h ≥80 No L1225*W70.5*H83mm
22W AC100-277V ≥0.9 2600 120° 4000K 40000h ≥80 No L1225*W70.5*H83mm
22W AC100-277V ≥0.9 2550 120° 5000K 40000h ≥80 No L1225*W70.5*H83mm
22W AC100-277V ≥0.9 2500 120° 5700K 40000h ≥80 No L1225*W70.5*H83mm
