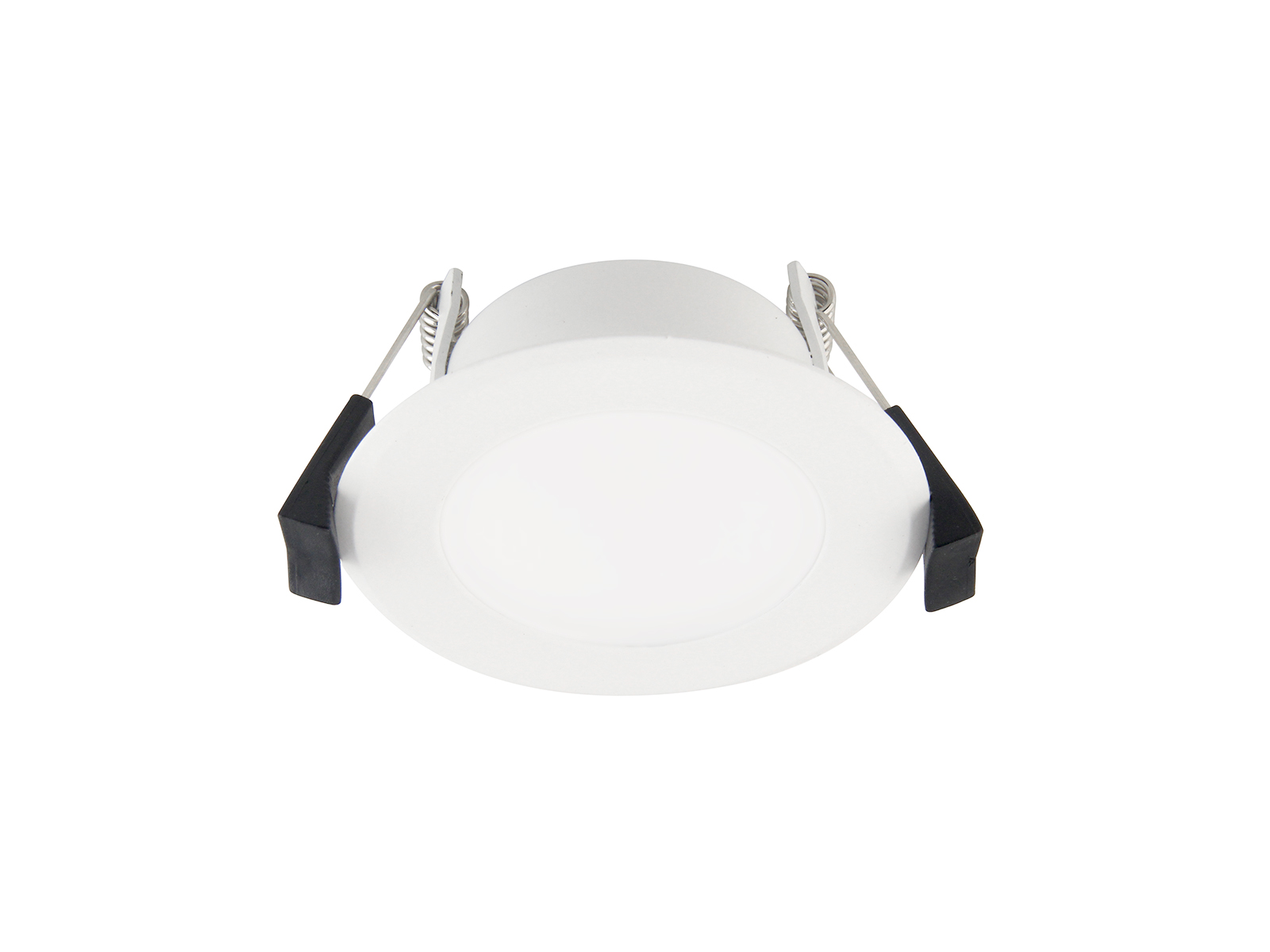

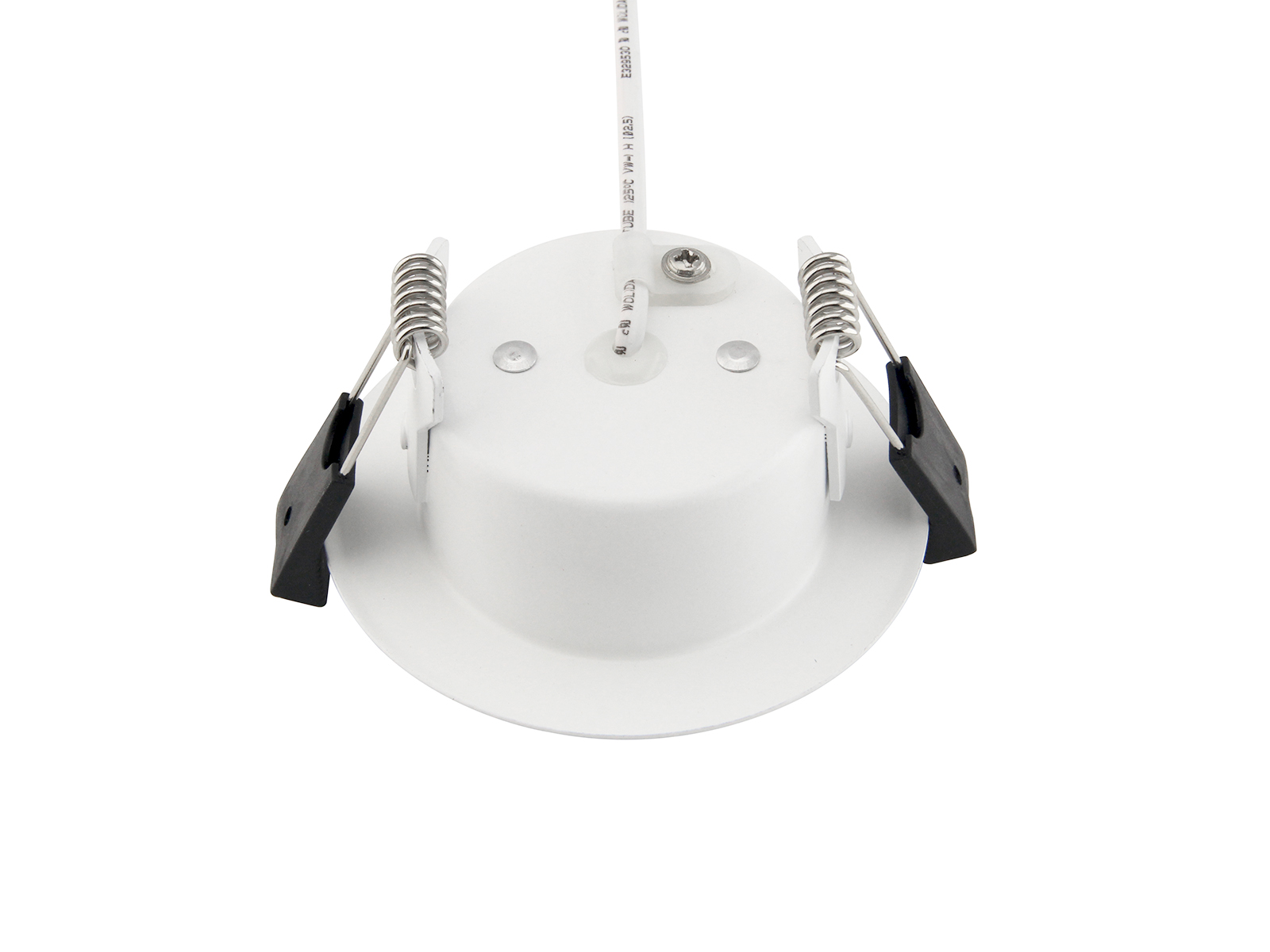

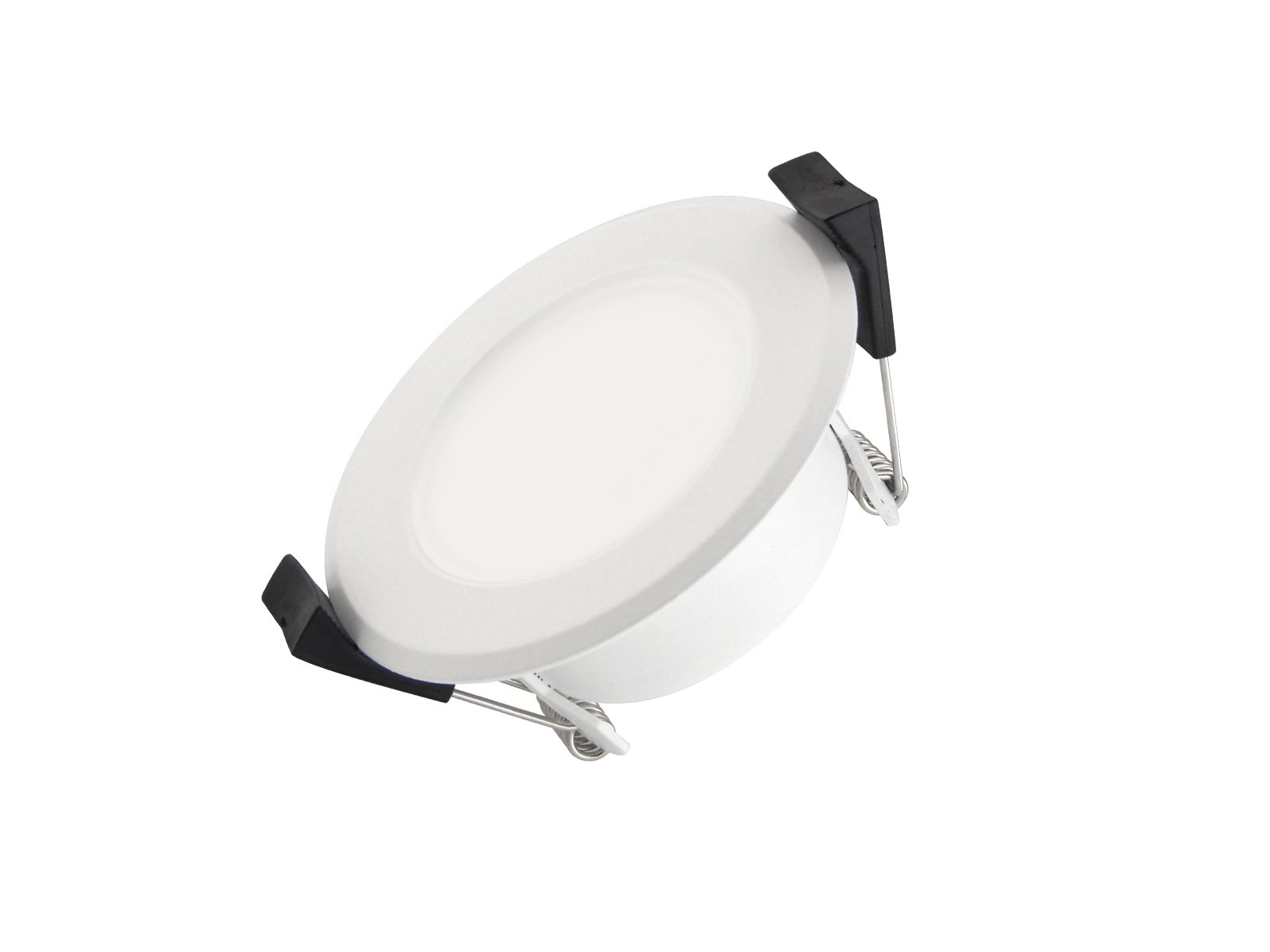

2.5 Inch Mini Dimmable LED Downlights

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Dimmable when using triac dimmer
  • 90° wide beam angle
  • Ø70mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 90 degree ip54 waterproofeasy installation

APPLICATION AREAS

restaurant lightingoffice lightingclassroom lightinginterior lighting ideasbedroom

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

3 inch mini led downlight Dimensions

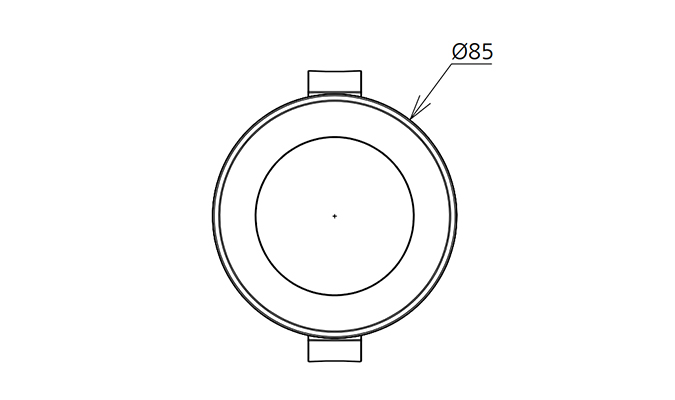

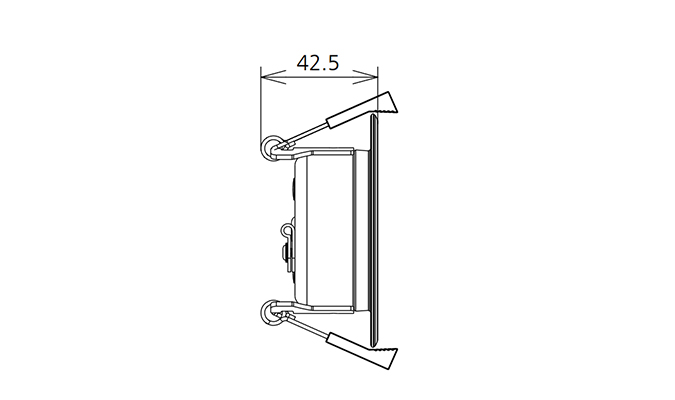

DIMENSION

small mini downlight Dimensions Diagramip54 mini downlight photometric data

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
7W AC230V ≥0.9 460 90° 3000K 40000h ≥80 No Ø85*42.5mm cutout 70mm
7W AC230V ≥0.9 500 90° 4000K 40000h ≥80 No Ø85*42.5mm cutout 70mm
7W AC230V ≥0.9 510 90° 5000K 40000h ≥80 No Ø85*42.5mm cutout 70mm
7W AC230V ≥0.9 500 90° 5700K 40000h ≥80 No Ø85*42.5mm cutout 70mm
7W AC230V ≥0.9 430 90° 3000K 40000h ≥80 Yes Ø85*42.5mm cutout 70mm
7W AC230V ≥0.9 460 90° 4000K 40000h ≥80 Yes Ø85*42.5mm cutout 70mm
7W AC230V ≥0.9 470 90° 5000K 40000h ≥80 Yes Ø85*42.5mm cutout 70mm
7W AC230V ≥0.9 450 90° 5700K 40000h ≥80 Yes Ø85*42.5mm cutout 70mm
