3 Inch LED COB Downlight 10W

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Dimmable when using triac dimmer
  • 90° wide beam angle
  • Ø90-95mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 90 degreeip54 waterproofeasy installation

APPLICATION AREAS

bedroombathroomoffice lightingsupermarket led lighting

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

3 inch 10w photometric data

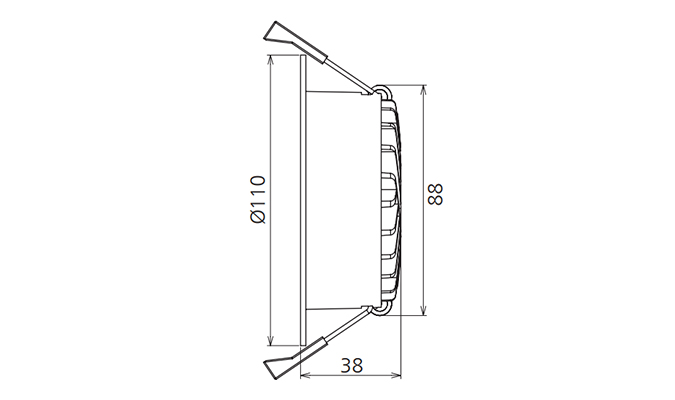

DIMENSION

Dimensions 95mm cut out3 inch 95mm Technical Specification

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
10W AC230V ≥0.9 890 90° 3000K 40000h ≥80 No Ø110*38mm cutout 90-95mm
10W AC230V ≥0.9 920 90° 4000K 40000h ≥80 No Ø110*38mm cutout 90-95mm
10W AC230V ≥0.9 940 90° 5000K 40000h ≥80 No Ø110*38mm cutout 90-95mm
10W AC230V ≥0.9 960 90° 5700K 40000h ≥80 No Ø110*38mm cutout 90-95mm
10W AC230V ≥0.9 880 90° 3000K 40000h ≥80 Yes Ø110*38mm cutout 90-95mm
10W AC230V ≥0.9 900 90° 4000K 40000h ≥80 Yes Ø110*38mm cutout 90-95mm
10W AC230V ≥0.9 920 90° 5000K 40000h ≥80 Yes Ø110*38mm cutout 90-95mm
10W AC230V ≥0.9 940 90° 5700K 40000h ≥80 Yes Ø110*38mm cutout 90-95mm
