LED COB Downlight 10W

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Dimmable when using triac dimmer
  • 60° wide beam angle
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 60 degree ip54 waterproofeasy installation

APPLICATION AREAS

retail store lightingrestaurant lightingoffice lightingclassroom lightinginterior lighting ideas

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

10w recessed downlight photometric data

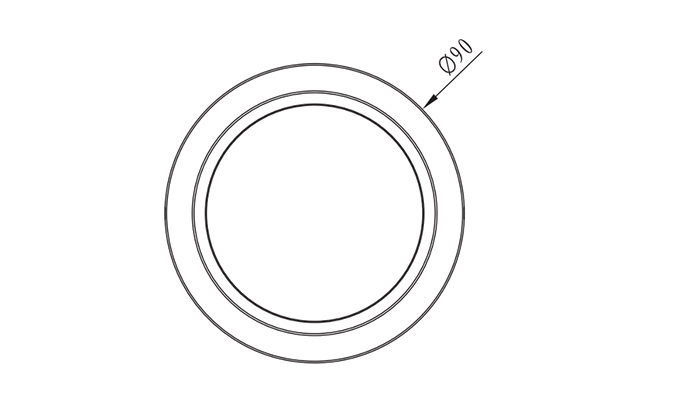

DIMENSION

cob led downlight 10w sizesaluminum led downlights Dimensions

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
10W AC100-240V ≥0.9 660 60° 2700K 40000h ≥80 No Ø90*100mm
10W AC100-240V ≥0.9 730 60° 3000K 40000h ≥80 No Ø90*100mm
10W AC100-240V ≥0.9 780 60° 4000K 40000h ≥80 No Ø90*100mm
10W AC100-240V ≥0.9 740 60° 5000K 40000h ≥80 No Ø90*100mm
10W AC230V ≥0.9 620 60° 2700K 40000h ≥80 Yes Ø90*100mm
10W AC230V ≥0.9 690 60° 3000K 40000h ≥80 Yes Ø90*100mm
10W AC230V ≥0.9 740 60° 4000K 40000h ≥80 Yes Ø90*100mm
10W AC230V ≥0.9 700 60° 5000K 40000h ≥80 Yes Ø90*100mm
