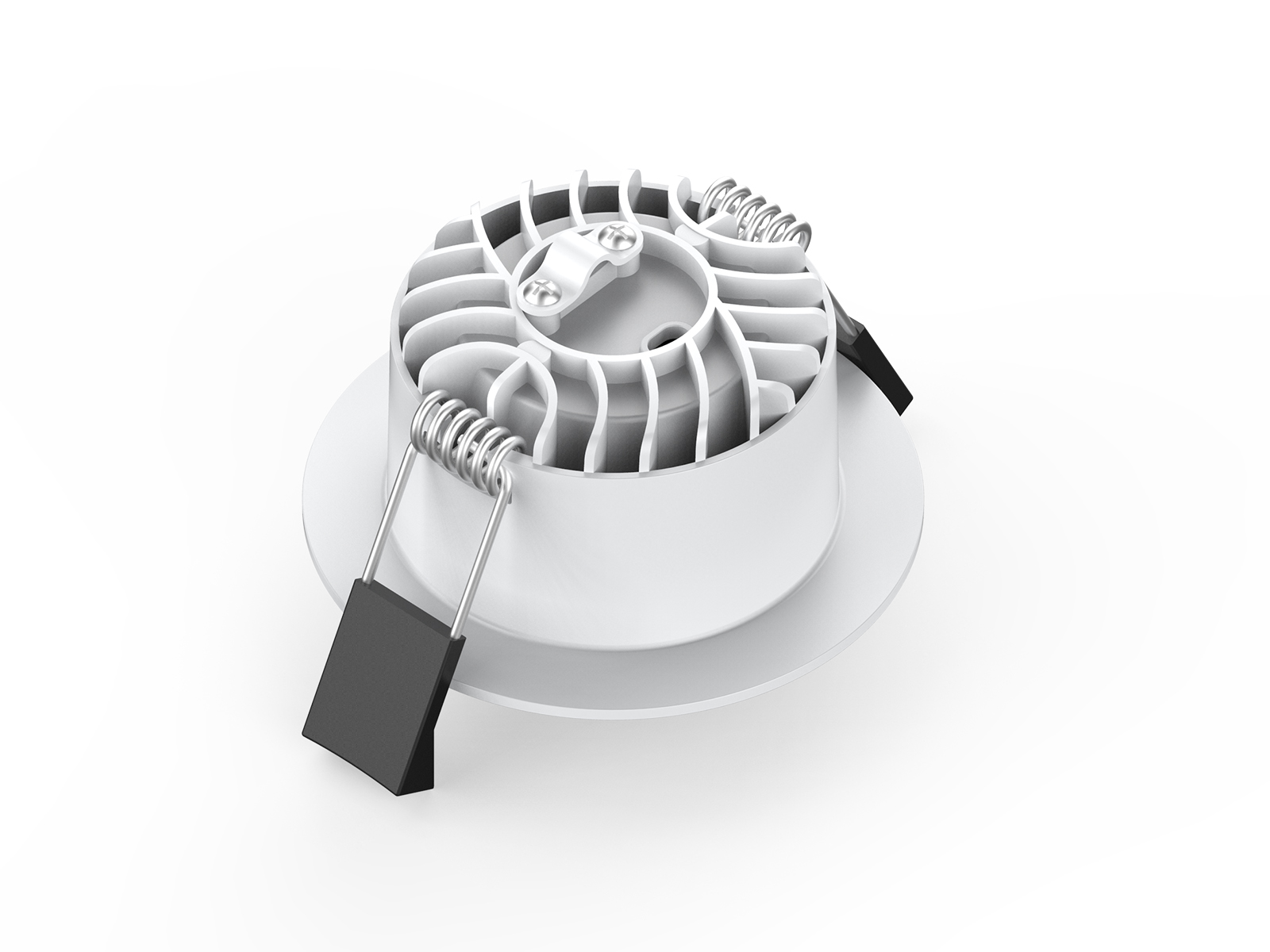

2.5 inch Dimmable Recessed downlight fixture

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 50,000 hours
  • Dimmable when using triac dimmer
  • 90° wide beam angle
  • Ø70-75mm cutout
  • CCT: 3000K-4000K-5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 90 degreeip54 waterproofDimmableeasy installation

APPLICATION AREAS

restaurant lightingoffice lightingsupermarket led lightingretail store lighting design

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

7w isolux diagram explanation

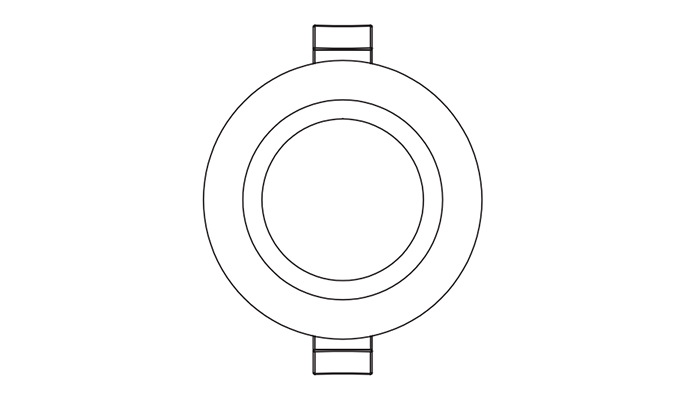

DIMENSION

75mm Product Dimensionsdimmable led downlight sizes

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
7W AC230V ≥0.9 500 90° 3000K 50000h ≥80 No Ø85*39mm cutout 70-75mm
7W AC230V ≥0.9 600 90° 4000K 50000h ≥80 No Ø85*39mm cutout 70-75mm
7W AC230V ≥0.9 560 90° 5700K 50000h ≥80 No Ø85*39mm cutout 70-75mm
7W AC230V ≥0.9 490 90° 3000K 50000h ≥80 Yes Ø85*39mm cutout 70-75mm
7W AC230V ≥0.9 590 90° 4000K 50000h ≥80 Yes Ø85*39mm cutout 70-75mm
7W AC230V ≥0.9 550 90° 5700K 50000h ≥80 Yes Ø85*39mm cutout 70-75mm
