7W Dimmable LED Downlights

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Dimmable when using triac dimmer
  • 100° wide beam angle
  • Ø70mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor100 degree beam angle ip54 waterproofeasy installationDimmable

APPLICATION AREAS

restaurant lightingoffice lightingclassroom lightinginterior lighting ideasbedroombathroom

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

100 degree beam angle downlight polar curve

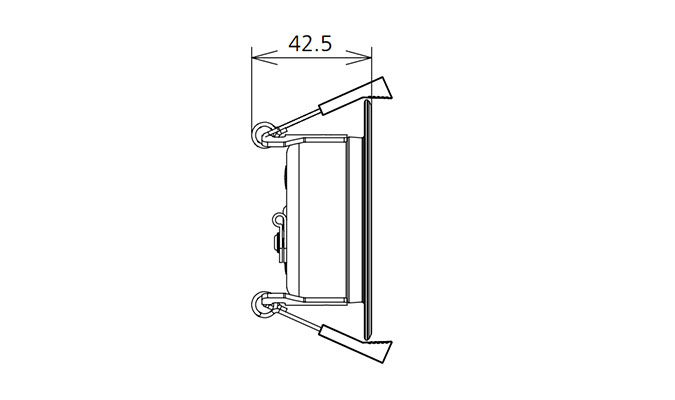

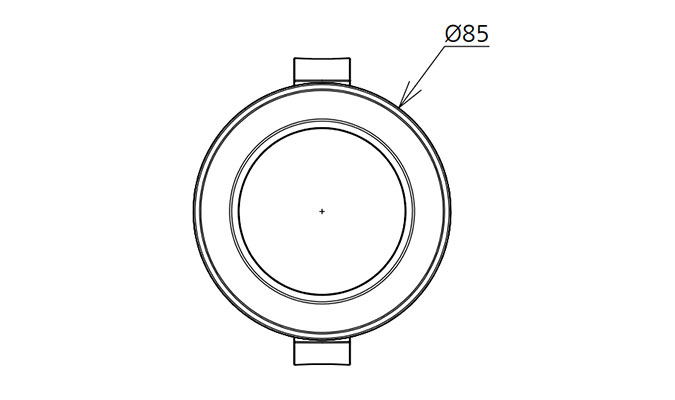

DIMENSION

led downlight with 70mm cutoutwarm white led downlight Dimensions

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
7W AC230V ≥0.85 460 90° 3000K 40000h ≥80 No Ø85*42.5mm cutout 70mm
7W AC230V ≥0.85 500 90° 4000K 40000h ≥80 No Ø85*42.5mm cutout 70mm
7W AC230V ≥0.85 510 90° 5000K 40000h ≥80 No Ø85*42.5mm cutout 70mm
7W AC230V ≥0.85 500 90° 5700K 40000h ≥80 No Ø85*42.5mm cutout 70mm
7W AC230V ≥0.85 430 90° 3000K 40000h ≥80 Yes Ø85*42.5mm cutout 70mm
7W AC230V ≥0.85 460 90° 4000K 40000h ≥80 Yes Ø85*42.5mm cutout 70mm
7W AC230V ≥0.85 470 90° 5000K 40000h ≥80 Yes Ø85*42.5mm cutout 70mm
7W AC230V ≥0.85 450 90° 5700K 40000h ≥80 Yes Ø85*42.5mm cutout 70mm
