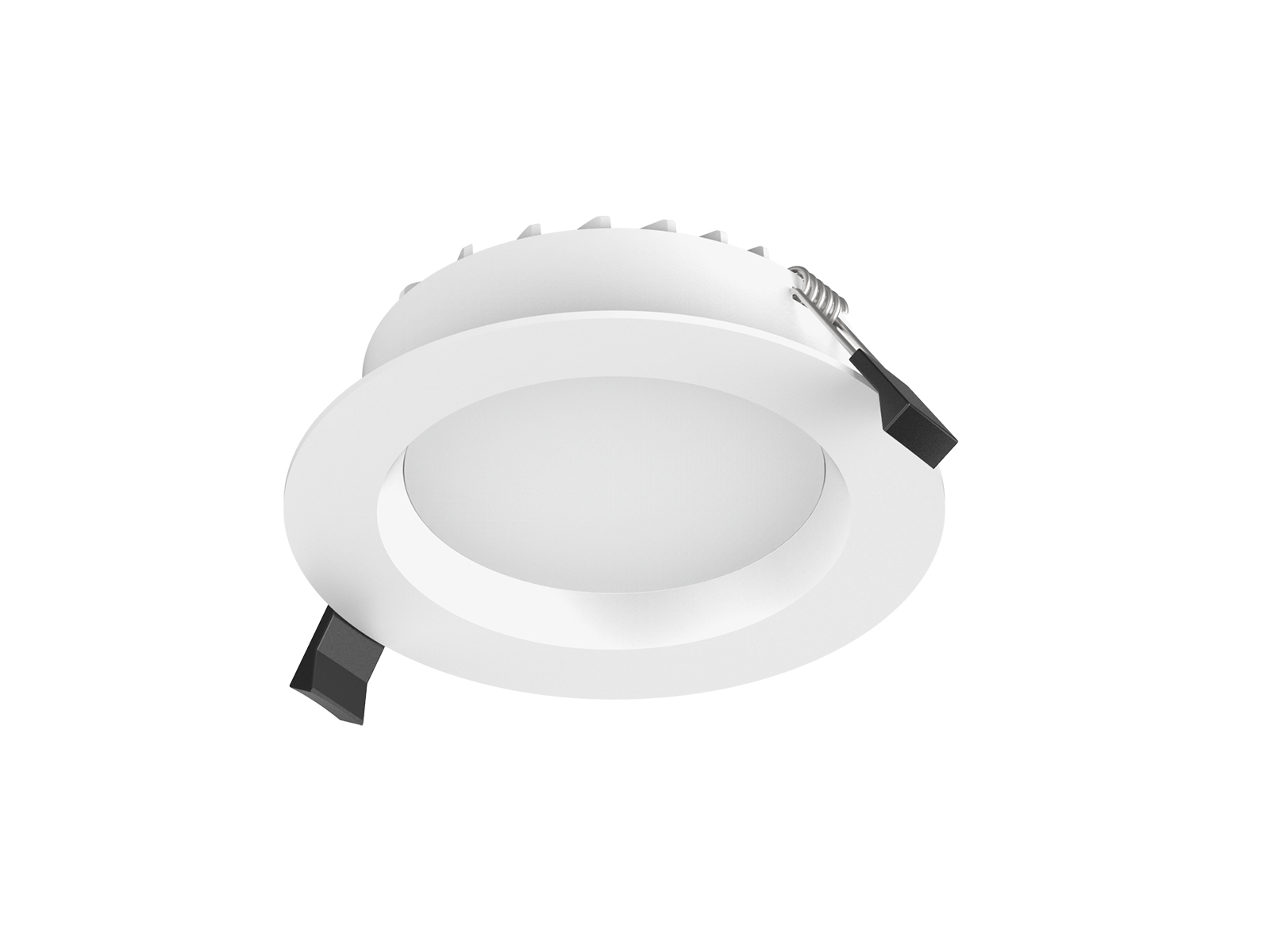

4inch 15w smd led downlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Dimmable when using triac dimmer
  • 90° wide beam angle
  • Ø120-130mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 90 degreeip54 waterproofeasy installation

APPLICATION AREAS

office lightingrestaurant lightingsupermarket led lightingretail store lighting designliving room

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

15w isolux diagram explanation

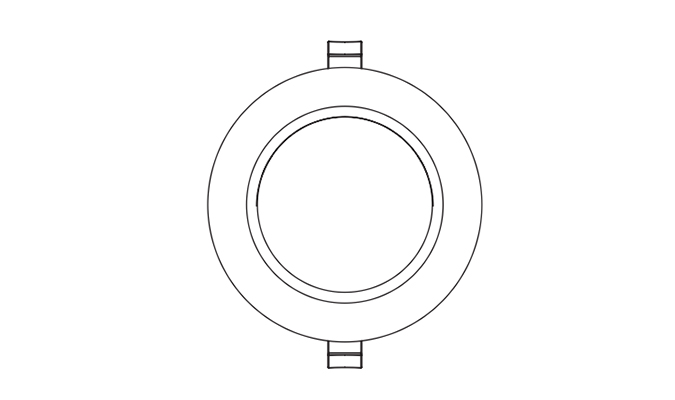

DIMENSION

Dimensions 130mm cut out15w Down light 130mm cut out sizes

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
15W AC230V ≥0.9 1450 90° 3000K 40000h ≥80 No Ø145*45mm cutout 120-130mm
15W AC230V ≥0.9 1500 90° 4000K 40000h ≥80 No Ø145*45mm cutout 120-130mm
15W AC230V ≥0.9 1530 90° 5000K 40000h ≥80 No Ø145*45mm cutout 120-130mm
15W AC230V ≥0.9 1560 90° 5700K 40000h ≥80 No Ø145*45mm cutout 120-130mm
15W AC230V ≥0.9 1420 90° 3000K 40000h ≥80 Yes Ø145*45mm cutout 120-130mm
15W AC230V ≥0.9 1470 90° 4000K 40000h ≥80 Yes Ø145*45mm cutout 120-130mm
15W AC230V ≥0.9 1500 90° 5000K 40000h ≥80 Yes Ø145*45mm cutout 120-130mm
15W AC230V ≥0.9 1530 90° 5700K 40000h ≥80 Yes Ø145*45mm cutout 120-130mm
