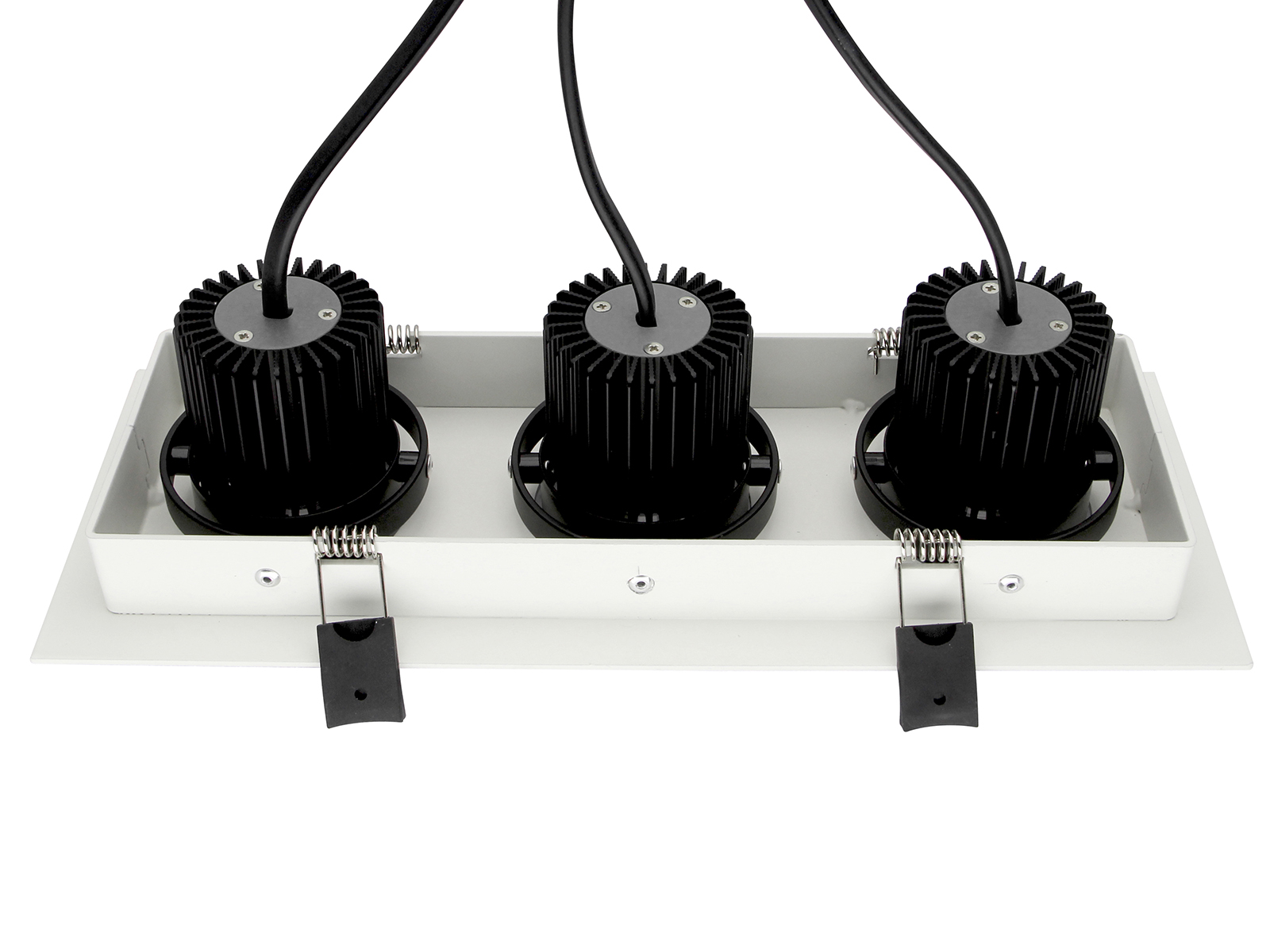

30W 3 Head Square Downlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • 38° 60° wide beam angle
  • L270*W90mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • Adjustable and rotary
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor38 beam angleled beam angle 60 degreeip20 ratingeasy installation

APPLICATION AREAS

classroom lightinginterior lighting ideasbedroomkitchenretail store lighting

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

30watts triple heads downlight

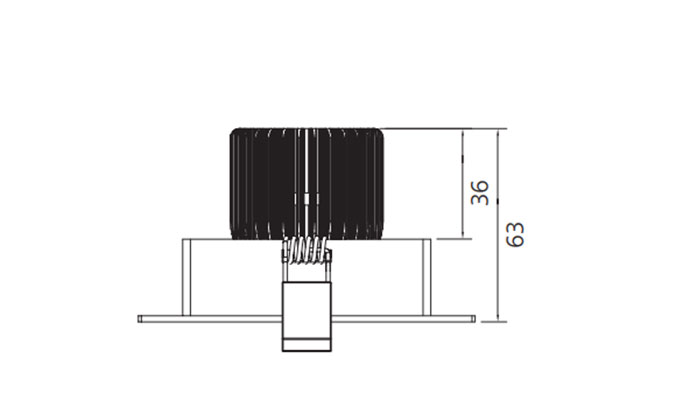

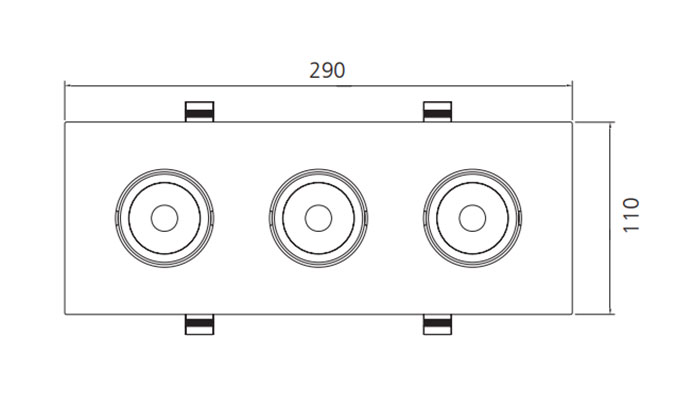

DIMENSION

three heads square downlightindoor triple heads downlight

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
30W AC100-240V ≥0.9 2160 38°60° 3000K 40000h ≥80 No L290*W110*H63mm cutout L270*W90mm
30W AC100-240V ≥0.9 2250 38°60° 4000K 40000h ≥80 No L290*W110*H63mm cutout L270*W90mm
30W AC100-240V ≥0.9 2340 38°60° 5000K 40000h ≥80 No L290*W110*H63mm cutout L270*W90mm
30W AC100-240V ≥0.9 2400 38°60° 5700K 40000h ≥80 No L290*W110*H63mm cutout L270*W90mm
