3 Inch Recessed Lghting

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 50,000 hours
  • Dimmable when using triac dimmer
  • 90° wide beam angle
  • 90-95mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 90 degreeip54 waterproofDimmable

APPLICATION AREAS

supermarket led lightingretail store lightinginterior lighting ideasrestaurant lighting

CERTIFICATIONS

ce certificationRoHs certification

POLAR DIAGRAM COMPARISON

120°photometric diagram

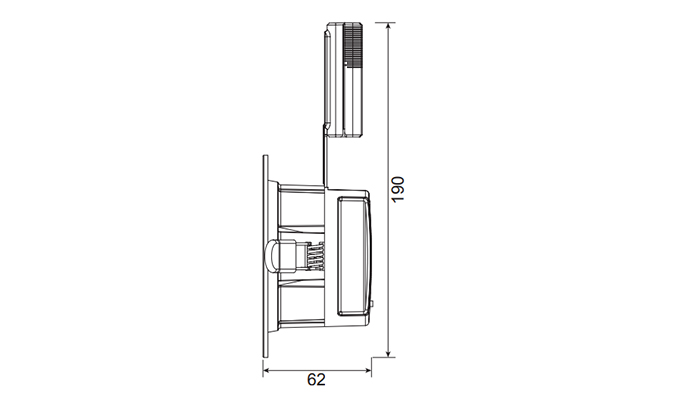

DIMENSION

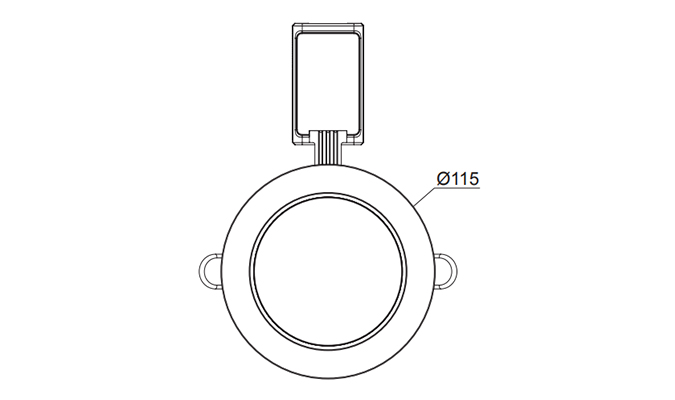

Technical Specification for 3 inch downlightDimensions 95mm cut out

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimension
10W AC100-240V ≥0.9 840 90° 3000K 50000h ≥80 190*115*62mm cutout 90-95mm
10W AC100-240V ≥0.9 920 90° 4000K 50000h ≥80 190*115*62mm cutout 90-95mm
10W AC100-240V ≥0.9 910 90° 5000K 50000h ≥80 190*115*62mm cutout 90-95mm
10W AC100-240V ≥0.9 900 90° 5700K 50000h ≥80 190*115*62mm cutout 90-95mm
10W AC230V ≥0.9 800 90° 3000K 50000h ≥80 190*115*62mm cutout 90-95mm
10W AC230V ≥0.9 880 90° 4000K 50000h ≥80 190*115*62mm cutout 90-95mm
10W AC230V ≥0.9 870 90° 5000K 50000h ≥80 190*115*62mm cutout 90-95mm
10W AC230V ≥0.9 860 90° 5700K 50000h ≥80 190*115*62mm cutout 90-95mm
