3 Inch LED Down Light 10W

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Dimmable when using triac dimmer
  • 90° wide beam angle
  • Ø90mm cutout
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 90 degree ip20 ratingeasy installationDimmable

APPLICATION AREAS

restaurant lightingoffice lightingclassroom lightinginterior lighting ideasbedroom

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

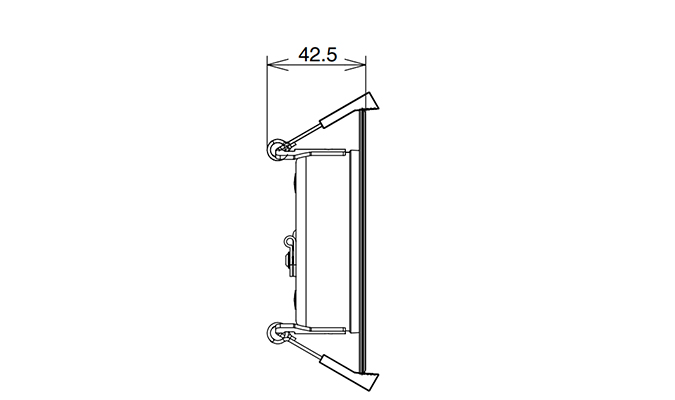

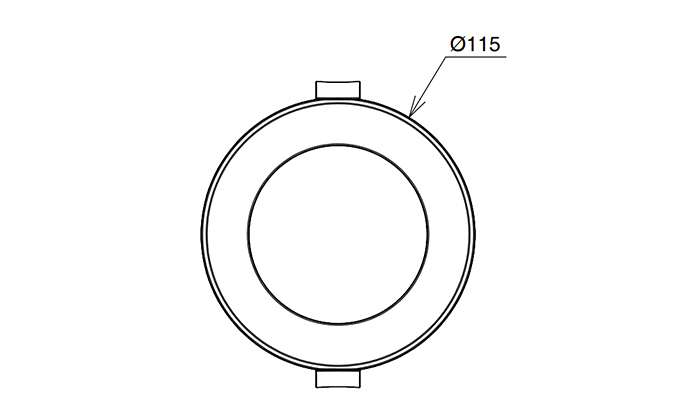

3 inch mini led downlight Dimensions

DIMENSION

white mini downlight Technical Specificationround recessed led downlight sizes

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
10W AC230V ≥0.9 710 90° 3000K 40000h ≥80 No Ø115*42.5mm cutout 90mm
10W AC230V ≥0.9 760 90° 4000K 40000h ≥80 No Ø115*42.5mm cutout 90mm
10W AC230V ≥0.9 780 90° 5000K 40000h ≥80 No Ø115*42.5mm cutout 90mm
10W AC230V ≥0.9 800 90° 5700K 40000h ≥80 No Ø115*42.5mm cutout 90mm
10W AC230V ≥0.9 700 90° 3000K 40000h ≥80 Yes Ø115*42.5mm cutout 90mm
10W AC230V ≥0.9 740 90° 4000K 40000h ≥80 Yes Ø115*42.5mm cutout 90mm
10W AC230V ≥0.9 750 90° 5000K 40000h ≥80 Yes Ø115*42.5mm cutout 90mm
10W AC230V ≥0.9 780 90° 5700K 40000h ≥80 Yes Ø115*42.5mm cutout 90mm
