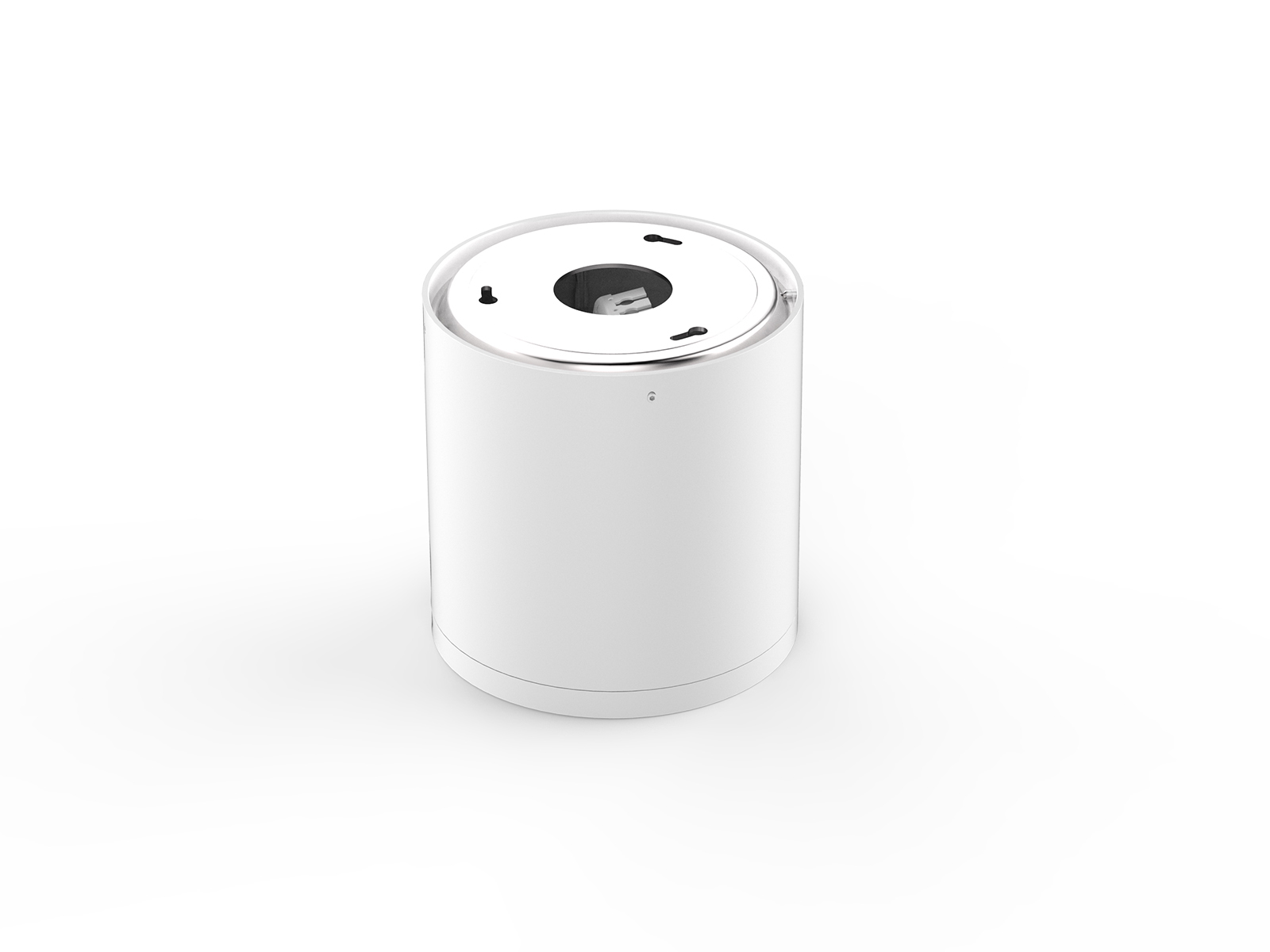

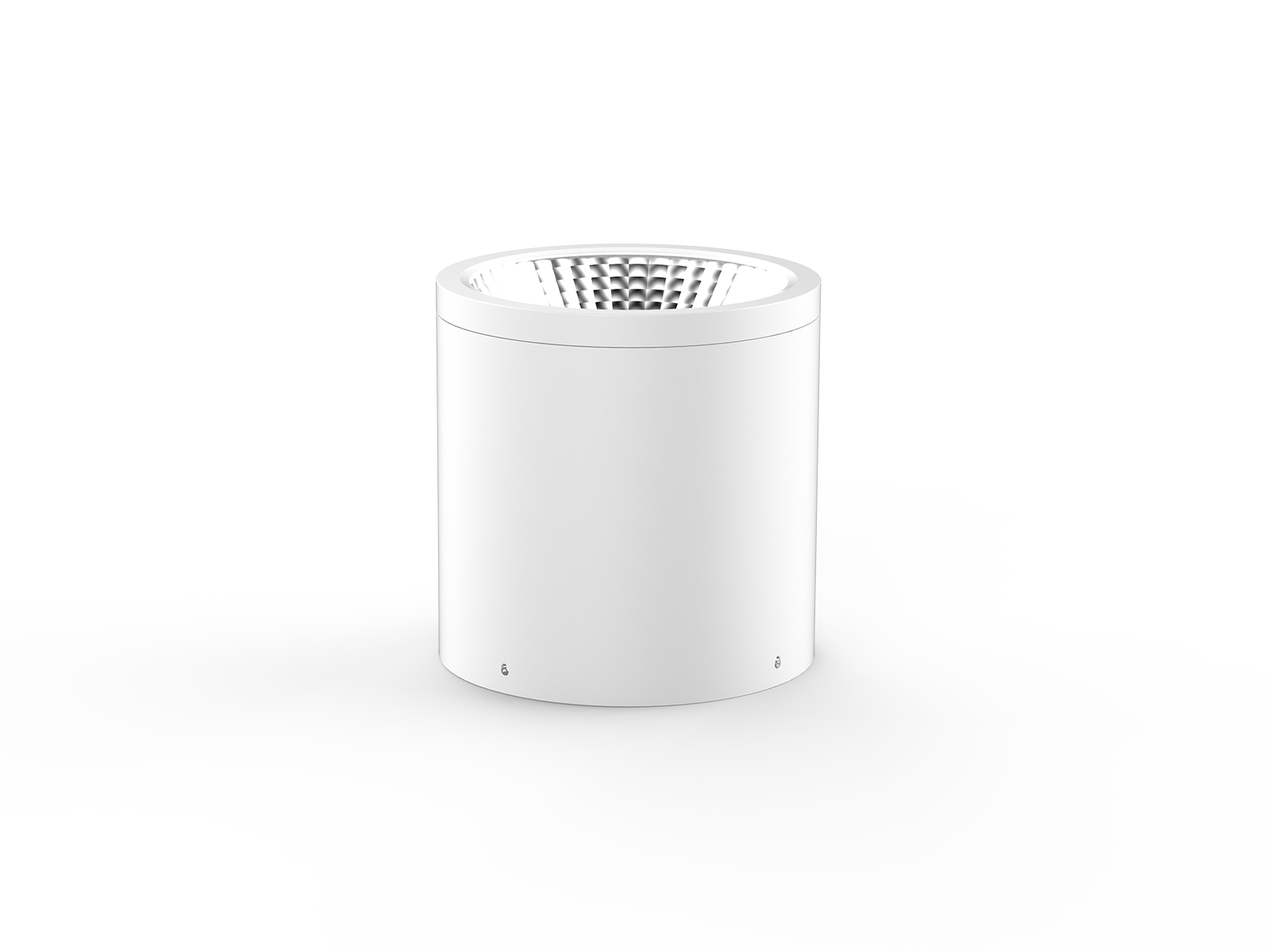

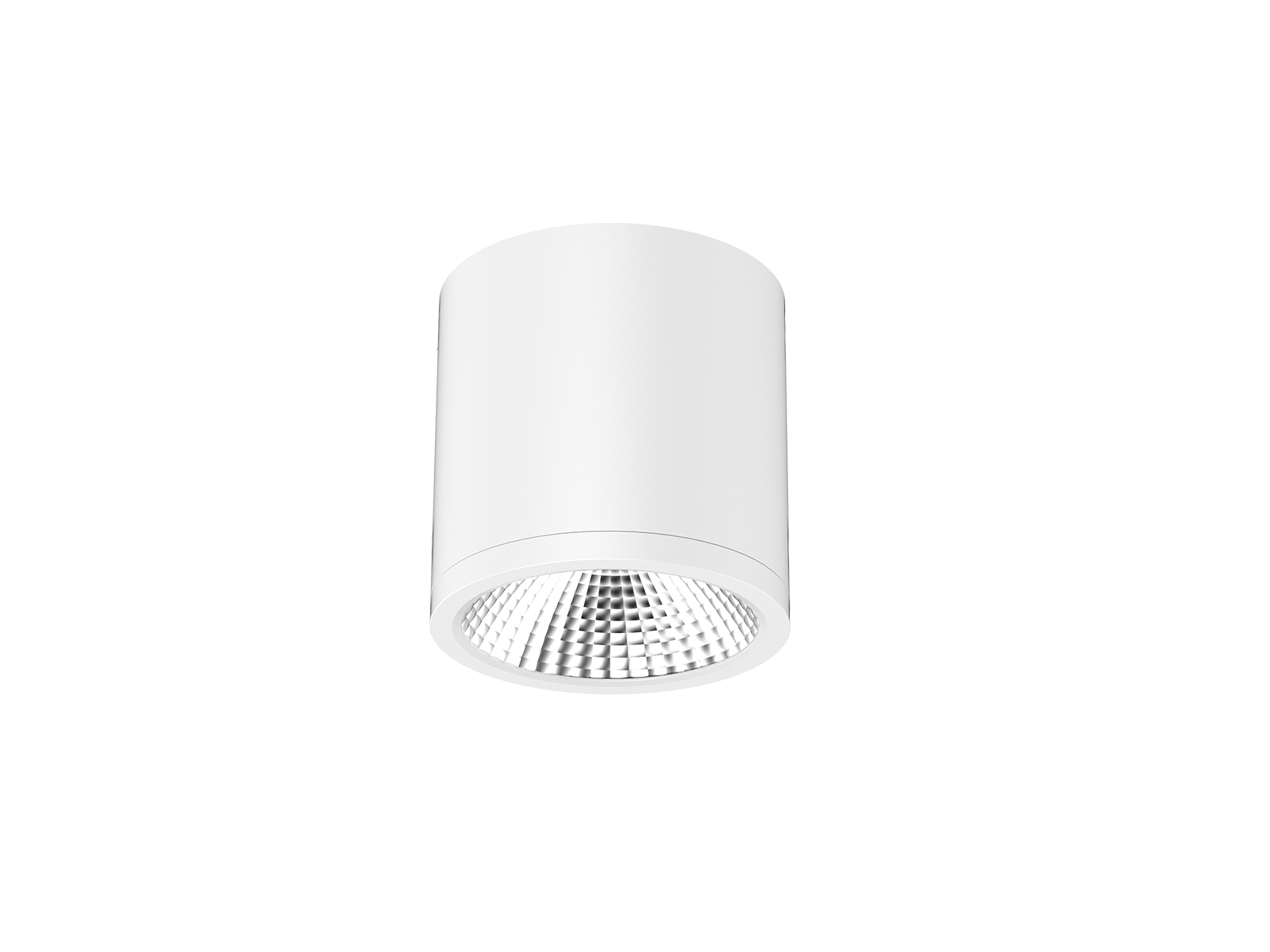

15W Mounted COB Downlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Dimmable when using triac dimmer
  • 60° wide beam angle
  • CCT: 2700K 3000K 4000K 5000K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 60 degree ip54 waterproofeasy installation

APPLICATION AREAS

retail store lightingrestaurant lightingoffice lightingclassroom lightinginterior lighting ideas

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

low voltage downlight spolar curve

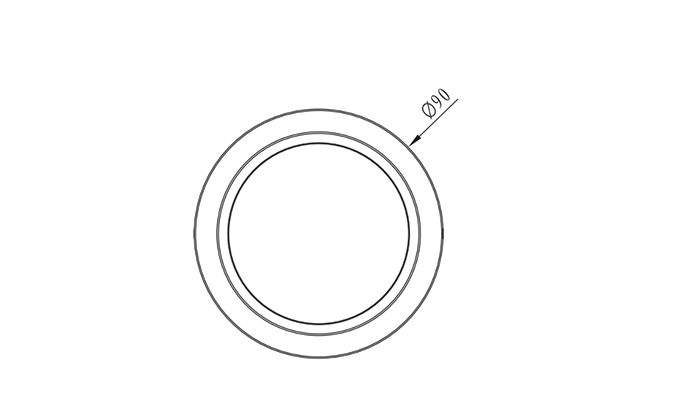

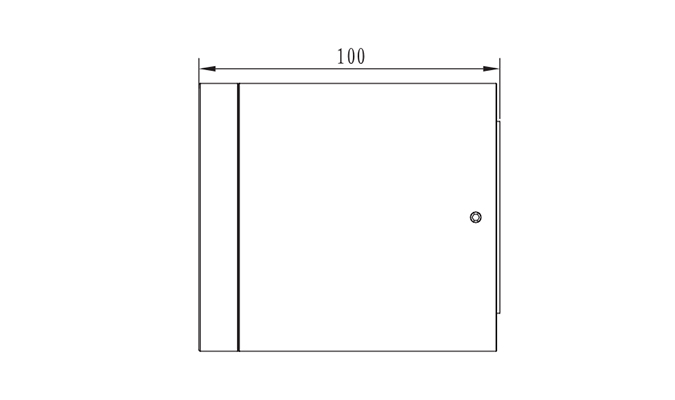

DIMENSION

sizes of downlights for kitchenround recessed downlights Dimensions

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
15W AC100-240V ≥0.9 1100 60° 2700K 40000h ≥80 No Ø90*100mm
15W AC100-240V ≥0.9 1200 60° 3000K 40000h ≥80 No Ø90*100mm
15W AC100-240V ≥0.9 1280 60° 4000K 40000h ≥80 No Ø90*100mm
15W AC100-240V ≥0.9 1300 60° 5000K 40000h ≥80 No Ø90*100mm
15W AC230V ≥0.9 1030 60° 2700K 40000h ≥80 Yes Ø90*100mm
15W AC230V ≥0.9 1160 60° 3000K 40000h ≥80 Yes Ø90*100mm
15W AC230V ≥0.9 1250 60° 4000K 40000h ≥80 Yes Ø90*100mm
15W AC230V ≥0.9 1260 60° 5000K 40000h ≥80 Yes Ø90*100mm
