10W Color Changing LED Recessed Downlight

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 50,000 hours
  • Dimmable when using triac dimmer
  • 90° wide beam angle
  • Ø90-95mm cutout
  • CCT: 3000K-4000K-5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factorled beam angle 90 degreeip54 waterproofDimmableeasy installation

APPLICATION AREAS

retail store lightingrestaurant lightingoffice lightinghotel lighting design

CERTIFICATIONS

ce certificationRoHs certificationsaa certification

POLAR DIAGRAM COMPARISON

10w photometric data 90 degree

DIMENSION

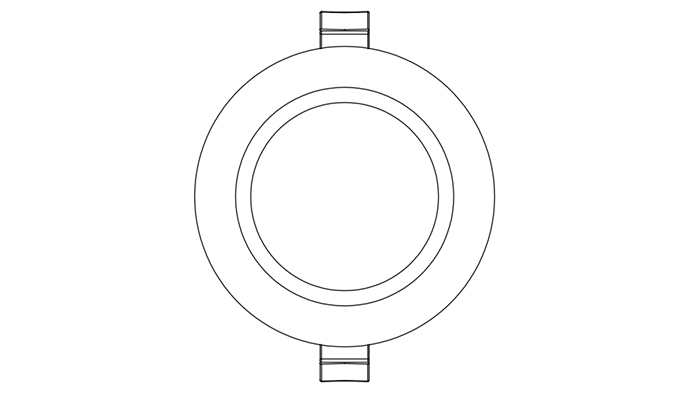

Dimensions of 3 inch downlight

90mm cut out Dimensions

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
10W AC230V ≥0.9 810 90° 3000K 50000h ≥80 No Ø110*38mm cutout 90-95mm
10W AC230V ≥0.9 960 90° 4000K 50000h ≥80 No Ø110*38mm cutout 90-95mm
10W AC230V ≥0.9 860 90° 5700K 50000h ≥80 No Ø110*38mm cutout 90-95mm
10W AC230V ≥0.9 800 90° 3000K 50000h ≥80 Yes Ø110*38mm cutout 90-95mm
10W AC230V ≥0.9 950 90° 4000K 50000h ≥80 Yes Ø110*38mm cutout 90-95mm
10W AC230V ≥0.9 850 90° 5700K 50000h ≥80 Yes Ø110*38mm cutout 90-95mm
