10 Inch 12W Square Shape LED Ceiling Light

FEATURES

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Dimmable when using triac dimmer
  • 120° wide beam angle
  • CCT: 3000K 4000K 5000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances

CHARACTERISTIC

power factor120 degree beam angleip54 waterproofeasy installation

APPLICATION AREAS

ce certificationRoHs certificationsaa certification

CERTIFICATIONS

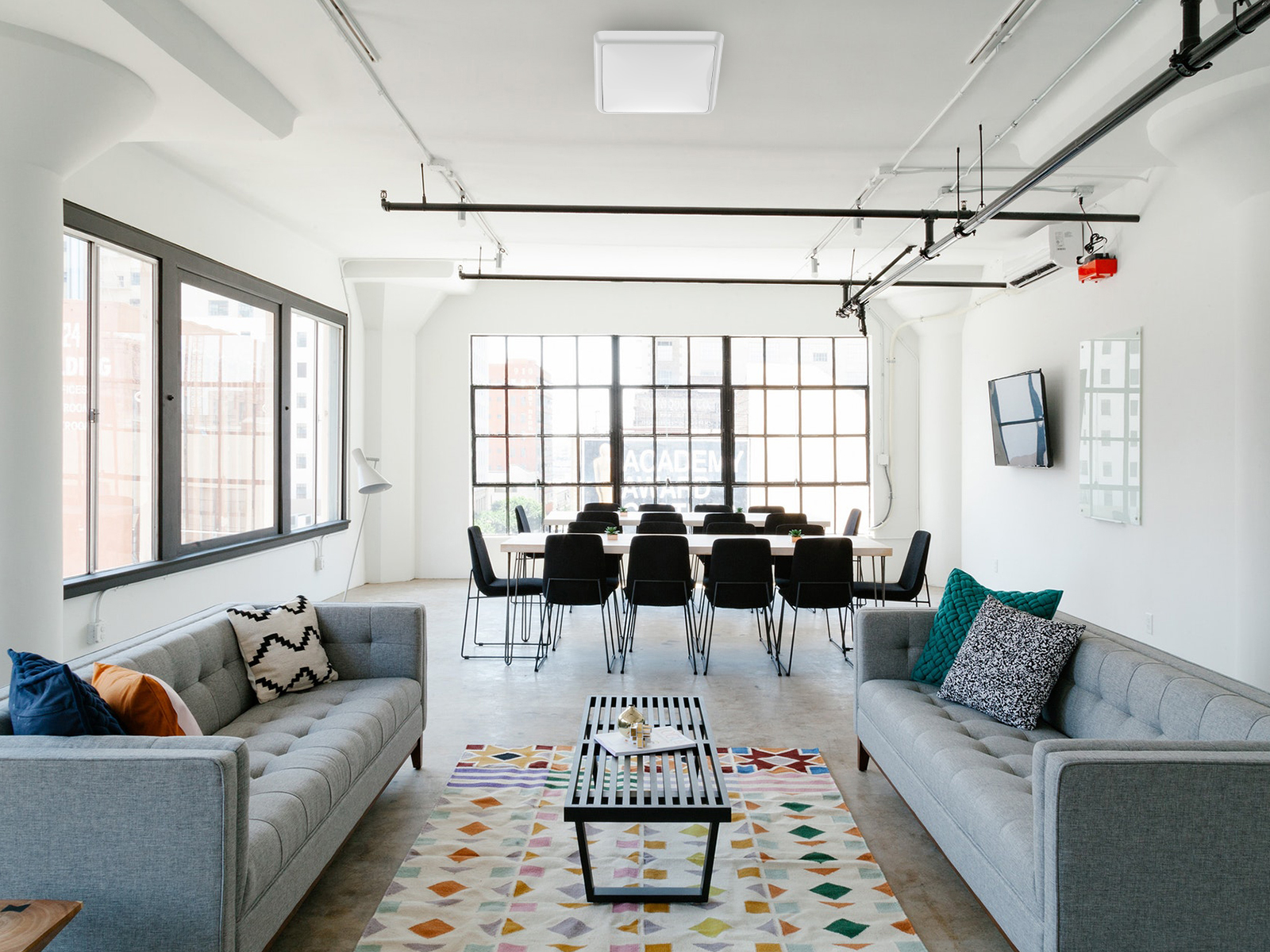

living roomkitchenbedroomretail store lightingclassroom lightingoffice lighting

POLAR DIAGRAM COMPARISON

led ceiling light square photometric diagram

DIMENSION

dimmable flush mount ceiling lights sizesIP54 SMD ceiling light Dimensions

TECHNICAL SPECIFICATIONS

Power Voltage Power Factor Lumen (±5%) Beam angle CCT Lifespan CRI Dimmable Dimension
12W AC230V ≥0.9 1200 120° 3000K 40000h ≥80 No 250*250*50mm
12W AC230V ≥0.9 1320 120° 4000K 40000h ≥80 No 250*250*50mm
12W AC230V ≥0.9 1330 120° 5000K 40000h ≥80 No 250*250*50mm
12W AC230V ≥0.9 1330 120° 5700K 40000h ≥80 No 250*250*50mm
12W AC230V ≥0.9 1175 120° 3000K 40000h ≥80 Yes 250*250*50mm
12W AC230V ≥0.9 1285 120° 4000K 40000h ≥80 Yes 250*250*50mm
12W AC230V ≥0.9 1295 120° 5000K 40000h ≥80 Yes 250*250*50mm
12W AC230V ≥0.9 1295 120° 5700K 40000h ≥80 Yes 250*250*50mm
