Is a Clear or Diffused LED Lens Better for Your Application?

LED lenses serve as crucial optical components meticulously designed to modify the light emitted by LEDs. They play a pivotal role in enhancing light efficiency, precisely controlling beam angles, and ultimately improving the overall quality of illumination.

Two of the most common options are clear and diffused lenses. Understanding the characteristics, types, and applications of these lenses will help you make an informed decision tailored to your specific needs.

Understanding Clear and Diffused LED Lenses

Choosing between a clear and a diffused LED lens affects how the light behaves.

Clear LED lenses let most light through, producing a bright and focused beam. Diffused lenses scatter light for a soft and even glow.

Generally, clear lenses yield slightly higher lumens, but they cast sharp shadows and can cause glare. Diffused lenses, by contrast, hide the LED chips and spread light more uniformly. This makes the illumination more comfortabl`e to the eyes, at the cost of a small drop in output.

In practice, most fixtures come standard with a clear lens, with diffused covers offered as an option depending on the use case.

Some Specialized Diffused LED Lenses

LED lenses come in many styles to fine-tune light distribution. The frosted lens is the most common diffused lens that can produce a smooth gradient from center to edge.

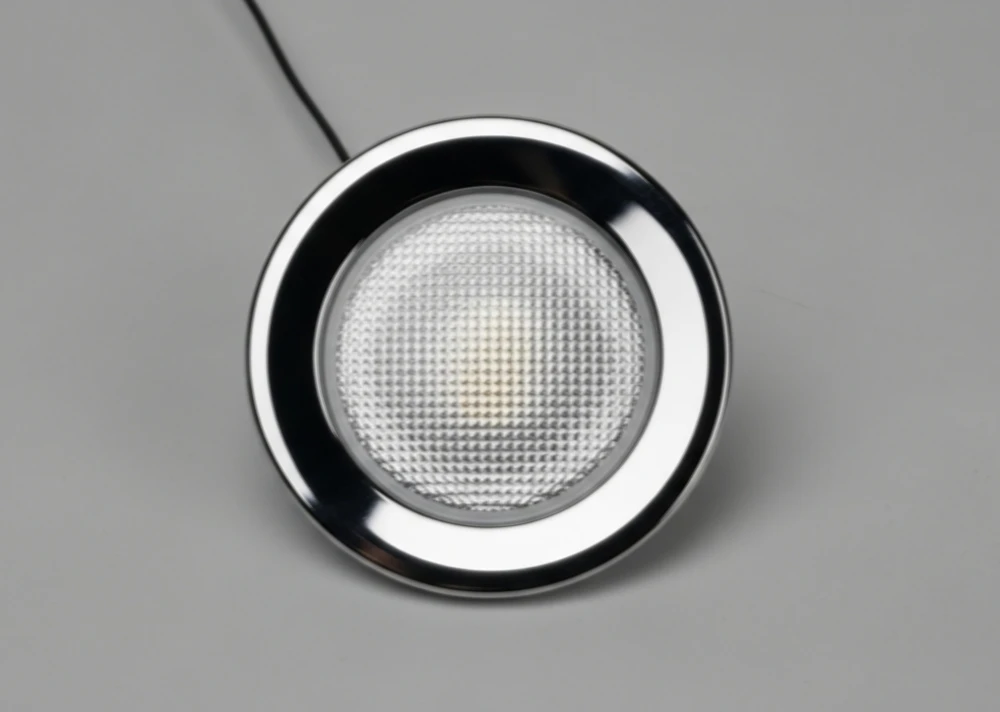

Patterned diffusers – often called pebble or prismatic lenses – add surface texture that shapes the beam. For example, a “small pebble” (solite) lens only slightly softens the beam’s edges, while a “large pebble” (prismatic) lens creates a much wider, more diffuse spread. Because the diffuser texture affects the beam spread.

In addition to frosted and pebble patterns, there are many diffuser options. Some extruded acrylic or polycarbonate covers include subtle ribs or prismatic patterns to further control the spread.

These special diffusers help blend multiple LEDs and reduce “pixelation” or harsh hotspots. For instance, a fully frosted panel can mask the multiple diodes in an LED array, providing one even field of light.

Applications of Clear vs. Diffused LED Lenses

The choice between clear and diffused LED lenses, or specific types of diffused lenses, is highly dependent on the intended application and the desired lighting outcome. Different environments and tasks benefit from distinct light distribution characteristics.

Residential Ambient and Accent Lighting

Home fixtures typically use diffused lenses to create cozy and even lighting. Clear lenses might be used sparingly for spotlights or under-cabinet task lights where crisp shadows are acceptable. For example, a recessed downlight often has a frosted trim to reduce harshness, whereas a track-mounted spotlight may be clear for accent.

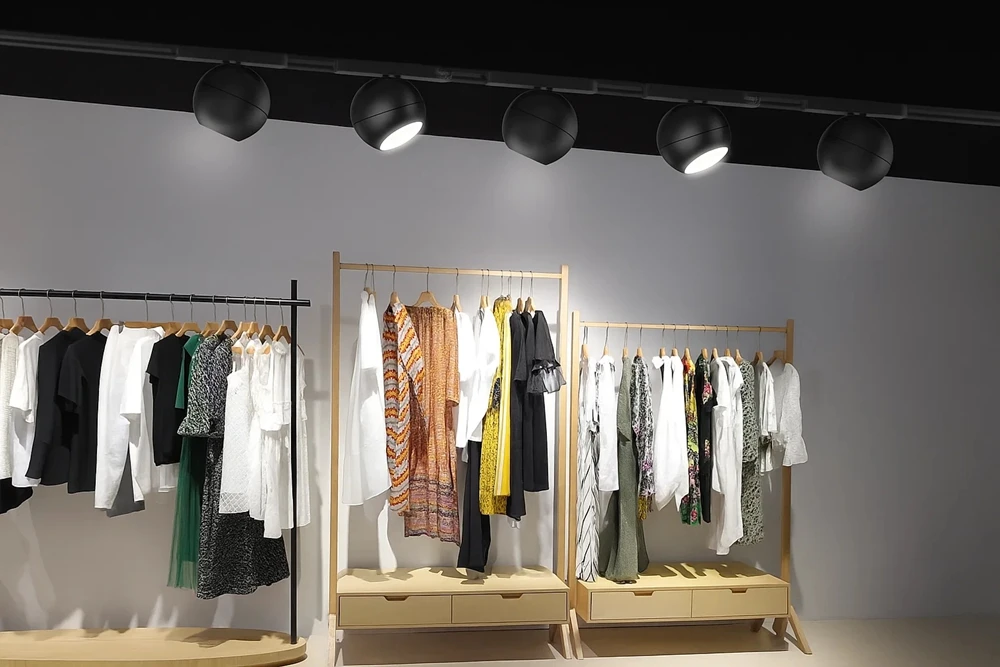

Retail Lighting for Different Regions

In retail environments, use clear lenses for accentuating products or work zones, and frosted lenses for general illumination.

For example, clear-lens LED tubes or strip fixtures highlight display cases and aisles by projecting crisp light. Frosted tubes or strip covers provide smooth ambient light in corridors or over shelves without creating harsh glare.

Outdoor and Specialized Lighting Applications

Outdoors, diffused optics can reduce light pollution and glare on streets or walkways. Some outdoor signs and bollard lights use opal diffusers for gentle luminosity.

Bright white LED floodlights for security, however, often use clear lenses and reflectors to achieve a long reach.

High Bay and Low Bay Lights

For very high ceilings (20–45 ft), clear lenses are often used to maximize throw and brightness. A clear lens concentrates light downward and can illuminate distant areas. If glare or uneven light is a concern, a diffused cover can be fitted to soften the output and spread it more broadly.

In contrast, low bay fixtures (under 20 ft) usually favor diffused lenses to fill the space evenly. Clear low-bay lights are reserved for focused task areas (like workbenches or merchandise spots).

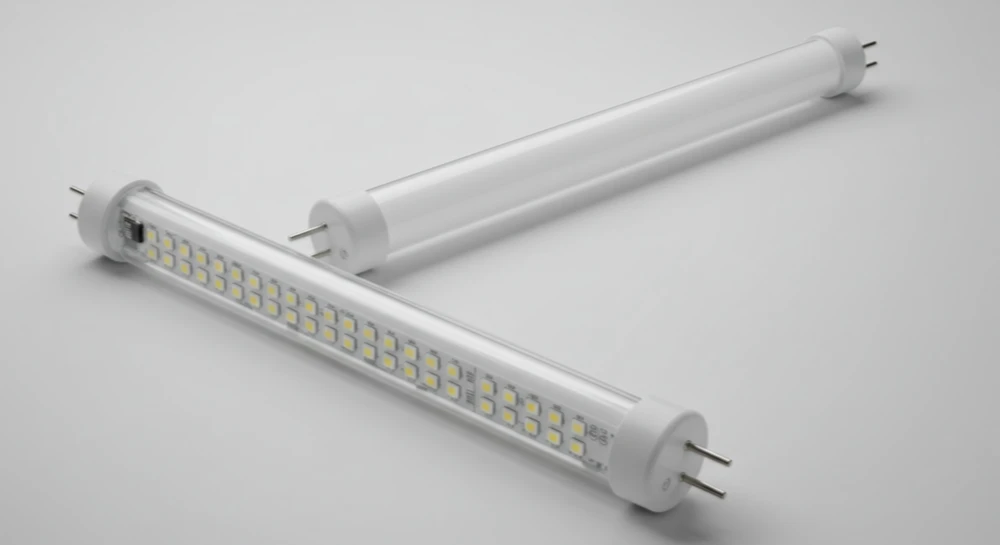

LED Tubes and Panel Lights

Many indoor troffers and panel lights come standard with diffused covers to deliver uniform ceiling illumination. If you retrofit fluorescent fixtures with LED tubes, frosted tubes are preferred in offices and classrooms to reduce glare, whereas clear tubes fit in open ceilings or fixtures with additional diffusers.

In general, choose a frosted tube for fixtures where the lamp is visible (e.g., downlights, troffers) to hide hotspots, and clear tubes in enclosed strip fixtures for maximum output.

Diffused Lenses for RGB and Pixel LEDs

For multicolor or RGB LEDs that are used in signs, decorative strips or pixel displays, diffused lenses are almost always better.  A diffused RGB lens blends the separate red/green/blue emitters, creating a smooth and uniform color at a distance.

With a clear RGB LED, you’ll often see individual color points up close. In other words, use diffused covers to avoid color speckling, unless you want a sharp pixel effect.

Hybrid Applications of Clear and Diffused LED Lenses.

Often, the best lighting strategy is to combine clear and diffused solutions. Designers “layer” light by using diffused fixtures for broad ambient illumination and clear-lens fixtures for accents.

For example, a retail space might have general ceiling lights with frosted covers, combined with spotlights (clear lens) on display areas. In office design, diffused panels provide even overhead light, while task lamps with clear lenses give focused brightness on desks.

Some advanced fixtures employ hybrid optics. They integrate both a tight beam element and a spread diffuser in one unit. For instance, certain LED pods or bars have an inner clear lens with a reflector (for a spot beam) and an outer diffusing cover (for flood fill). This yields a versatile pattern combining distance and coverage.

There is no one-size-fits-all answer. If your priority is maximum brightness and long throw, a clear lens is better. If you need even light and low glare, choose a diffused lens. In many projects, a combination of both yields the best effect.
